Anti-explosion Slip Rings

• Circuits & Current: 1*10A
• Voltage: 0~1000VAC/VDC
• Dielectric strength: ≥1000V@50Hz
• Isolation resistance: ≥1000MΩ@1000VDC
• Electrical noise: ≤ 30mΩ (50 rpm)
• Operating speed: 0-10 rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP65
• Explosion-proof grade: Exd II BT4 Gb IP65

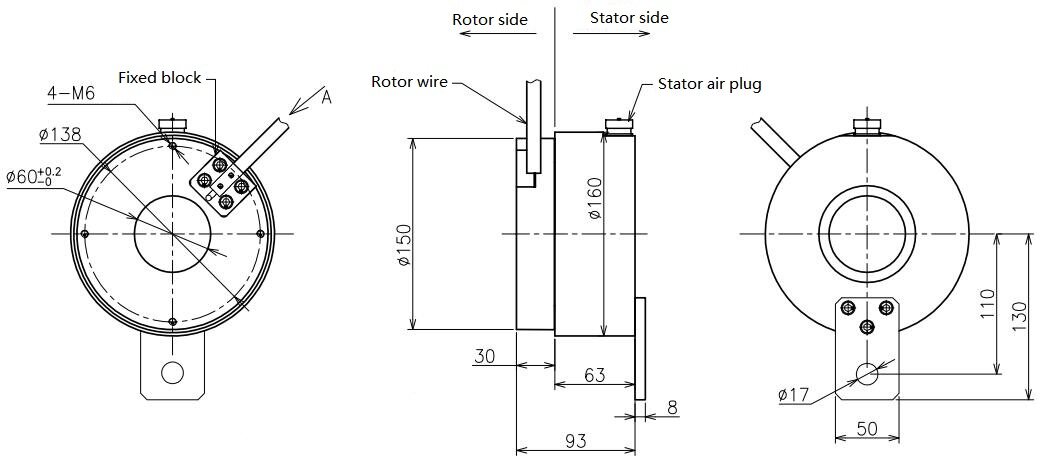

• Through hole size: 60mm
• Working temperature: -34°C~+80°C

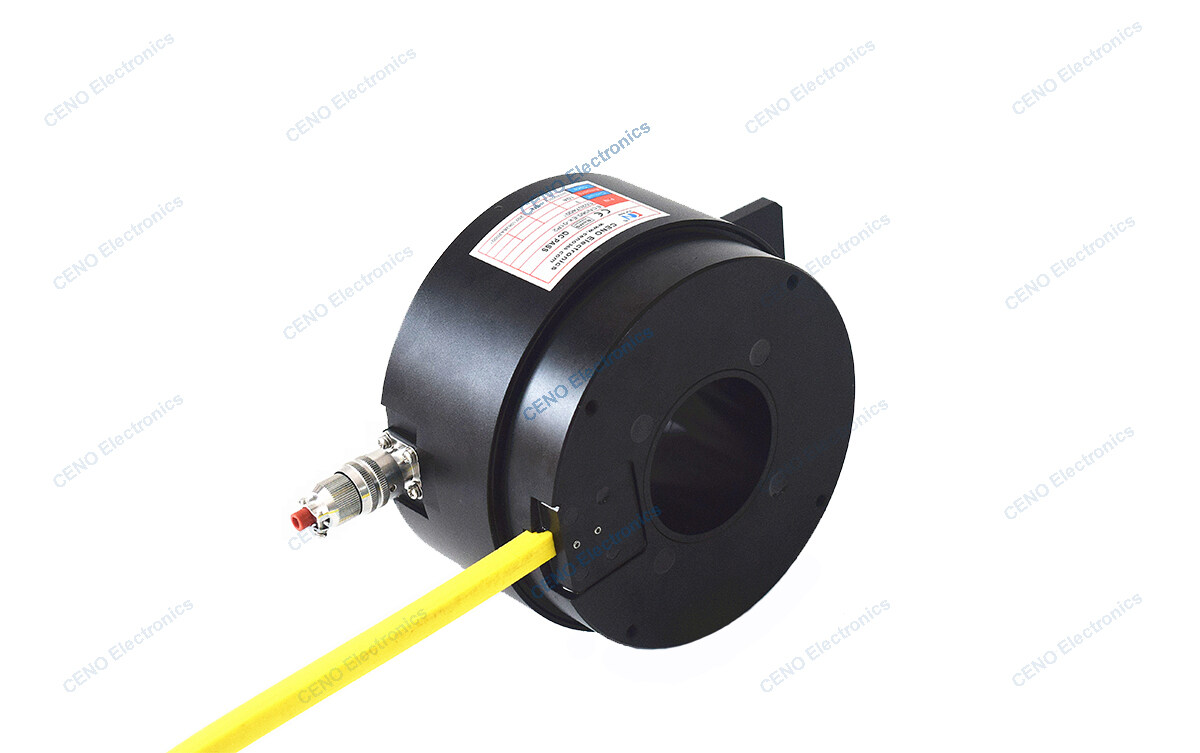

Explosion-proof slip ring is called as the explosion proof conductive slip ring, explosion proof collector ring, explosion-proof collecting ring or flame-proof slip ring, etc,. It is a kind of conductive slipring with highly reliable security, under working the easy explosive environment such as petroleum, chemical/explosive dust environment. ECN060-EX-01P2 with inner bore 60mm and Explosion-proof grade is Exd II BT4 Gb IP65. High voltage 0~1000VAC/VDC, working temperature range -34°C~+80°C. CENO designs the explosion-proof slipring base on the different working environment. According the protection divided into 0,1,2…etc,. the explosion-proof slipring use various construction and material. This kind of slipring always be customized according to the explosive grade, circuit channel, electrical properties of customer’s requirement.
