Anti-explosion Slip Rings

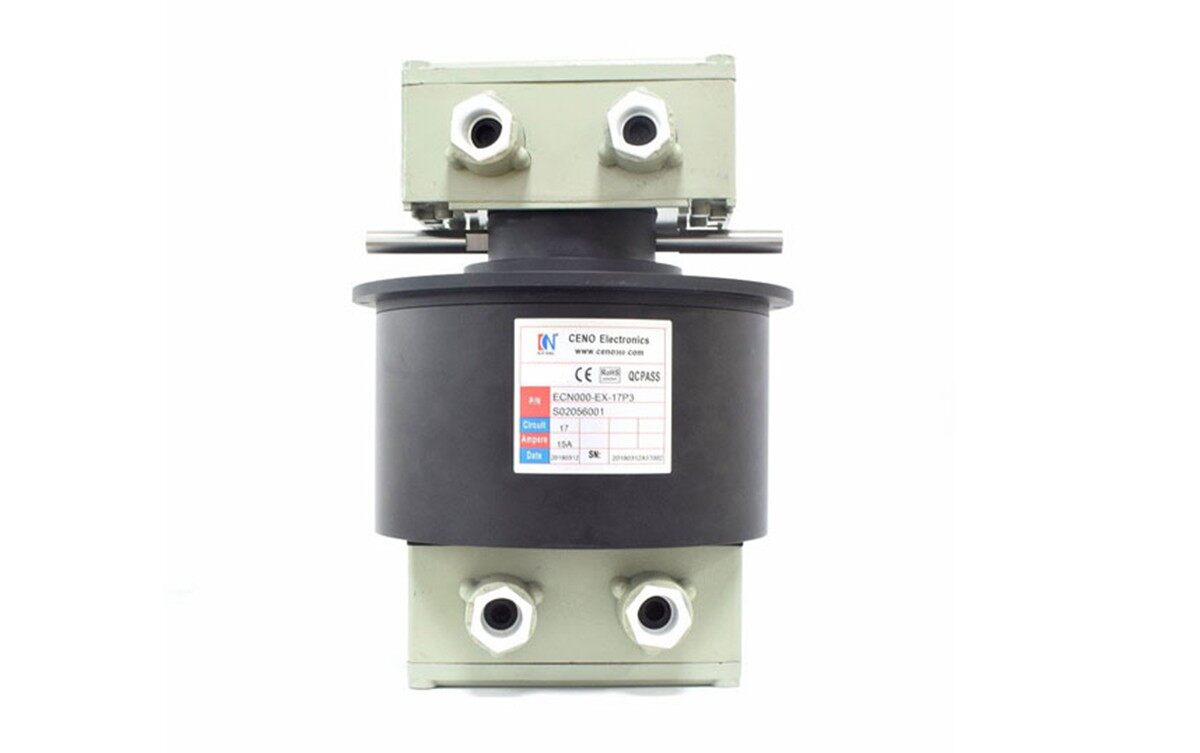

Product Model: ECN000-EX-17P3
Description
  • Circuits&Current: 17*5A
  • Rating voltage: 380VAC
  • Electrical noise: 70mΩ @(50rpm)
  • Dielectric strength: ≥1000VAC@50Hz
  • Isolation resistance: ≥500MΩ@100VDC
  • Working temperature: -20℃~+60℃
  • Working humidity: Below 60%RH
  • Protection grade: IP65
  • Working speed: 0~50rpm
  • Contact material: Precious metal
  • Explosion grade: Exd II BT4 Gb IP65

Explosion-proof slip ring is called as the explosion proof conductive slip ring, explosion proof collector ring,explosion-proof collecting ring or flame-proof slip ring, etc,. It’s a kind of conductive slip ring with highly reliable security, under working the easy explosive environment such as petroleum, chemical/explosive dust environment.
