Anti-explostion Slip Rings

• Circuits & Current: 11*63 A,4*signal
• Voltag: 660VAC/24VDC
• Dielectric strength: ≥3500VAC@50Hz(Power); ≥1000VAC@50Hz(Signal)
• Isolation resistance: ≥500MΩ@100VDC(Power); ≥300MΩ@100VDC(Signal)
• Resistance fluctuation: 10mΩ
• Operating speed: 0~50rpm
• IP protection grade: IP65
• Operating temperature: -20℃~+65℃
• Working humidity: 0~90%RH
• Contact material: Copper graphite, precious metal

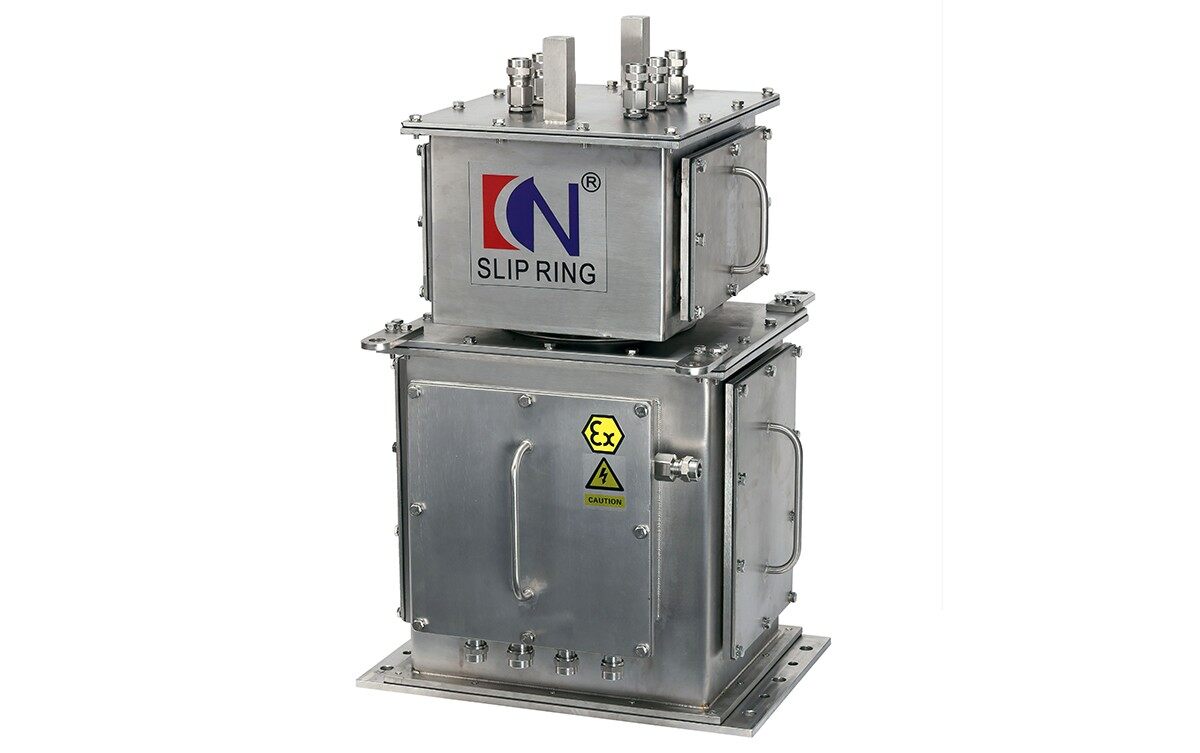

Explosion-proof conductive slip ring is a kind of conductive slip ring with high safety and reliability, suitable for working in explosive environment, such as oil platform, explosive material, packaging equipment, agricultural products processing equipment, coal mine, spraying and other dangerous places. It can meet both explosive gas environment and explosive dust environment and the highest protection grade is IP66.
