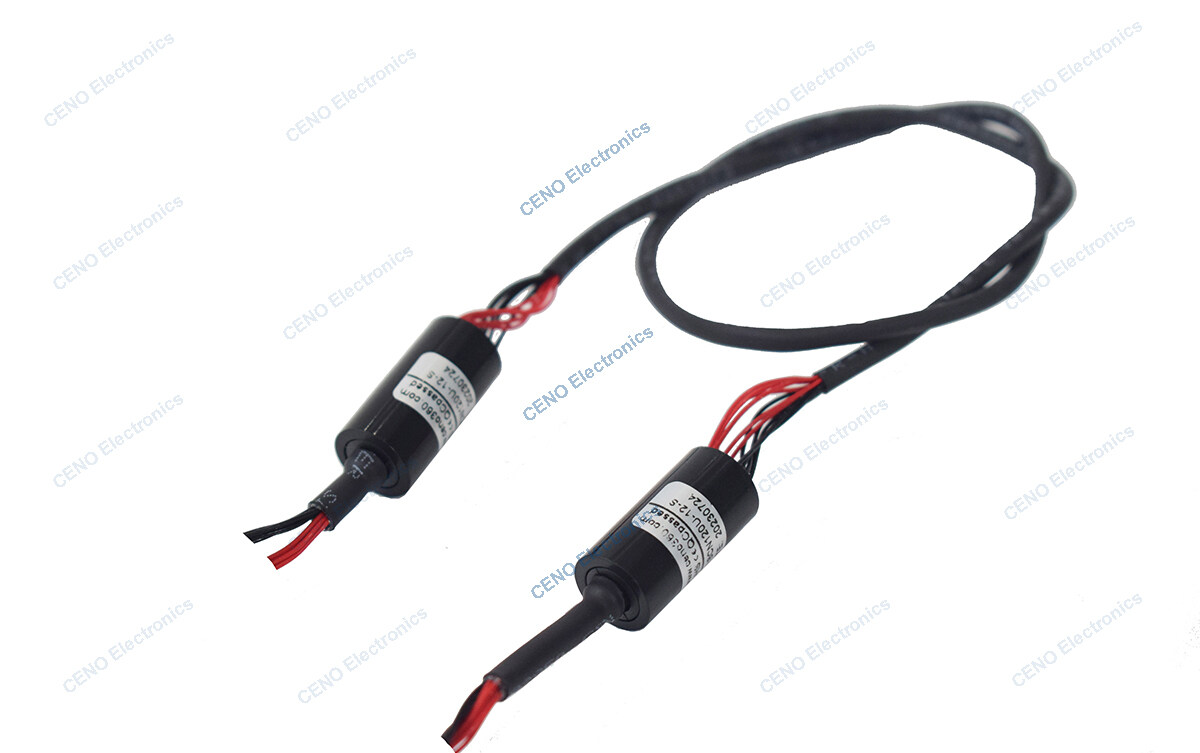

Bi-fold Miniature Slip Ring Capsule

• Current & Circuits: 2circuits*12A
• Rating Voltage: 0~220VAC/VDC
• Dielectric strength: ≥200VAC@50Hz
• Isolation resistance: ≥50MΩ@200VDC
• Contact resistance: ≤35mΩ (50rpm)
• Contact material: Gold to Gold
• Housing material: Engineering Plastic
• Working temperature: -20°C~+60°C
• Working humidity: ≤60%RH
• Operating speed: 0~10rpm
• Lead wire size: AWG#28#16 Wire Teflon® UL

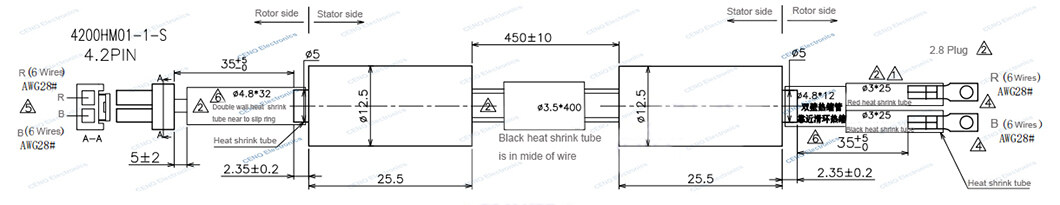

• Lead wire length: Rotor:35mm±5mm; Stator:450mm±5mm
• External diameter: Ø12.5mm

BCN12U-12-S is CENO new product Bi-fold Miniature slip ring capsule which is designed and applied to the lamp showing stand or camera rocker. Slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The BCN12U-12-S compact bi-fold slip ring capsule provides two, 12 amp circuits. And the compact bi-fold slip ring capsule, power and signal handling design provides unique capability for many challenging applications. More information please contact us freely.
