CAN-BUS Slip Rings

• Current & Circuits: 5*40A; 10*20A; 1*PE; 10*2A; 5*Can Signal; 8*Signal
• Rating Voltage: 380VAC/ 220VAC /24VDC
• Dielectric strength: ≥1000VAC@50Hz ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@100VDC ≥100MΩ@100VDC
• Electrical noise: ≤30mΩ (50rpm)
• Operating speed: 0~10rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy + Stainless steel
• Working temperature: -45°C~+70°C
• Working humidity: 95%
• IP protection grade: IP65

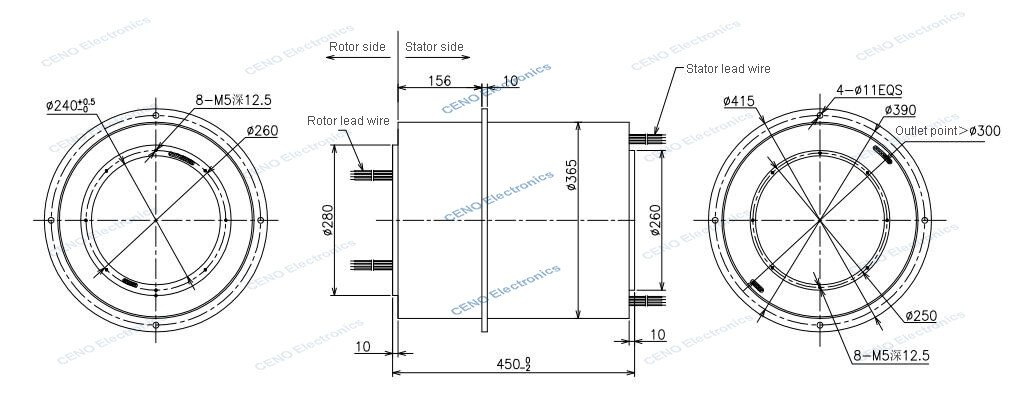

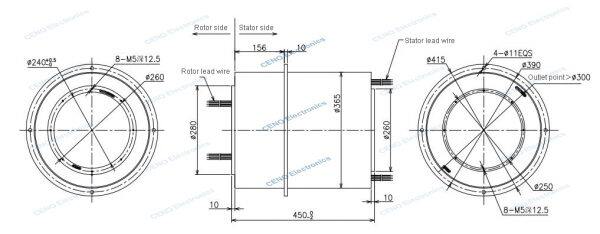

• Through hole size: Ø240mm
• Lead wire size: AWG10#12#17#22# Tin coated Teflon®UL 2 core Twisted Shield Wire
• Lead wire length: Rotor: 1500mm; Stator: 1500mm
• Installation: Flange

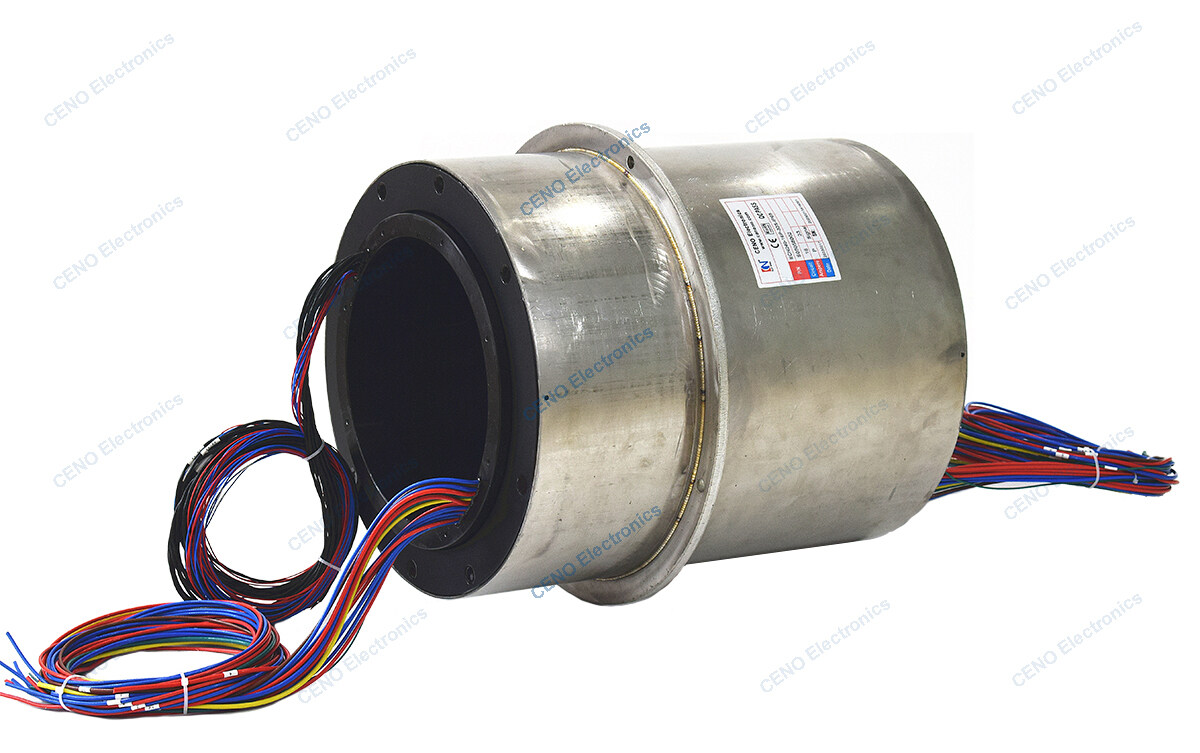

ECN240-16P-33S-IP65 is a high IP grade water-proof Slip Ring with CAN-Bus signal for low temperature environment application from CENO Electronics. There are 15circuits for electric power, 18circuits for data signal and 5group for CAN-Bus. CENO’s slip ring have been successfully performing in industry and commercial applications for over 20 years. There products are developed for flexible requirements and high performance environment. Typical applications include traffic system, energy power system, medical equipment and a wide range of automation system.
