Capsule HDMI Signal Slip Ring

• Current & Circuits: 4*1A; 7*2A; 2*8A;2*6A;4*1A; 4*1A; SDI*2; PAL*1
• Rating Voltage: 0~24 VAC/VDC
• Dielectric strength: ≥1100VAC@50Hz
• Isolation resistance: ≥300MQ@110VDC
• Contact resistance float: ≤10mΩ
• Lead wire length: Rotor wire: 500±20mm Stator wire: 500±20mm
• Operating speed: 0~60rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -40°C~+80°C
• Working humidity: 95%
• IP protection grade: IP51

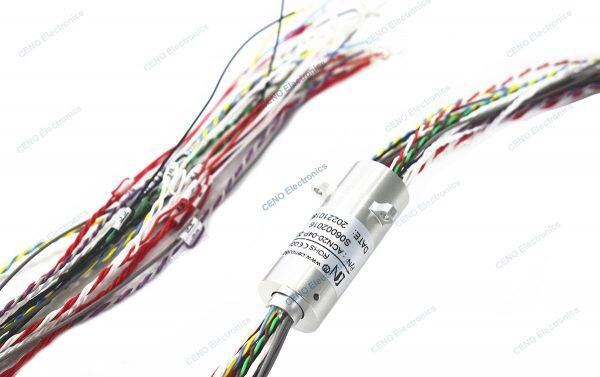

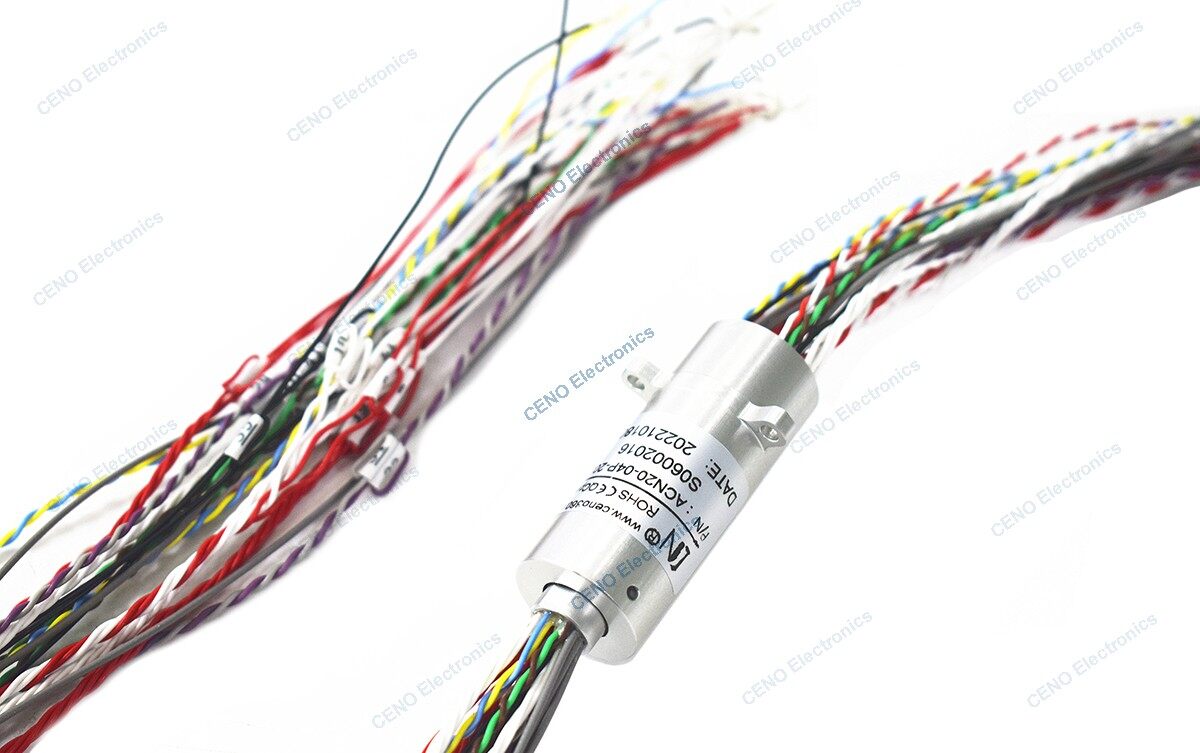

ACN20-04P-20S-03HD is a capsule slip ring with HDMI signal from CENO electronics. There are 2 types of power signals, 4circuits of 8A,6A for power, 20 circuits of 1A,2A for signal and 3 channel of SDI,PAL for High definition video signal. It can be working stably at the speed of 0~60rpm in the temperature from -40°C to +80°C. Due to it’s small compact structure and military grade surface treatment technology, CENO capsule HDMI Signal slip ring mainly used on the Instrument and apparatus, High definition video surveillance, Industrial automatic control, and medical equipment.
