Capsule Slip Ring

• Current & Circuits: 30*2A
• Rating Voltage: 0~240VAC/DC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥100MΩ@500VDC
• Electrical Noise: ≤35mΩ
• Operating speed: 0~300rpm
• Inner diameter: Ø6.4mm ~ Ø2.0mm
• Contact material: Gold to Gold
• Housing material: Aluminum Alloy
• Lead wire length: Stator:250±5mm; Rotor:250±5mm
• Working temperature: -20°C~+60°C
• Working humidity: 60% below
• IP protection grade: IP40

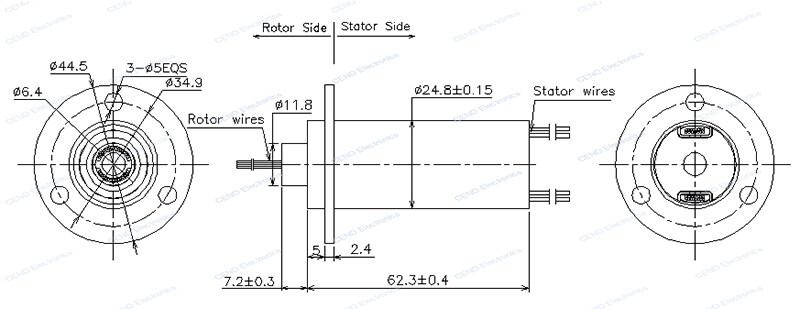

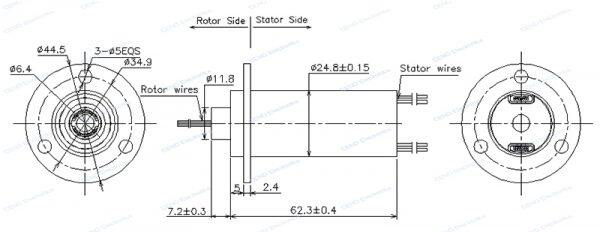

ACN0624T-30 is an integrated capsule slip ring with external diameter of 24.8mm and length of 62.3mm from CENO company. There are 30 circuits of 2A with rating voltage 0-240VAC/DC, this capsule slip ring can be used in kinds of automation system that require unrestrained, continuous rotating when transferring power and data signals from a stationary parts to a rotating structure. It can eliminate possible damage, simplify system design and improve electromechanical capability when rotation. It’s a key apparatus of various electric test instrument, precision rotary worktable, manufacture and process control instrument.
