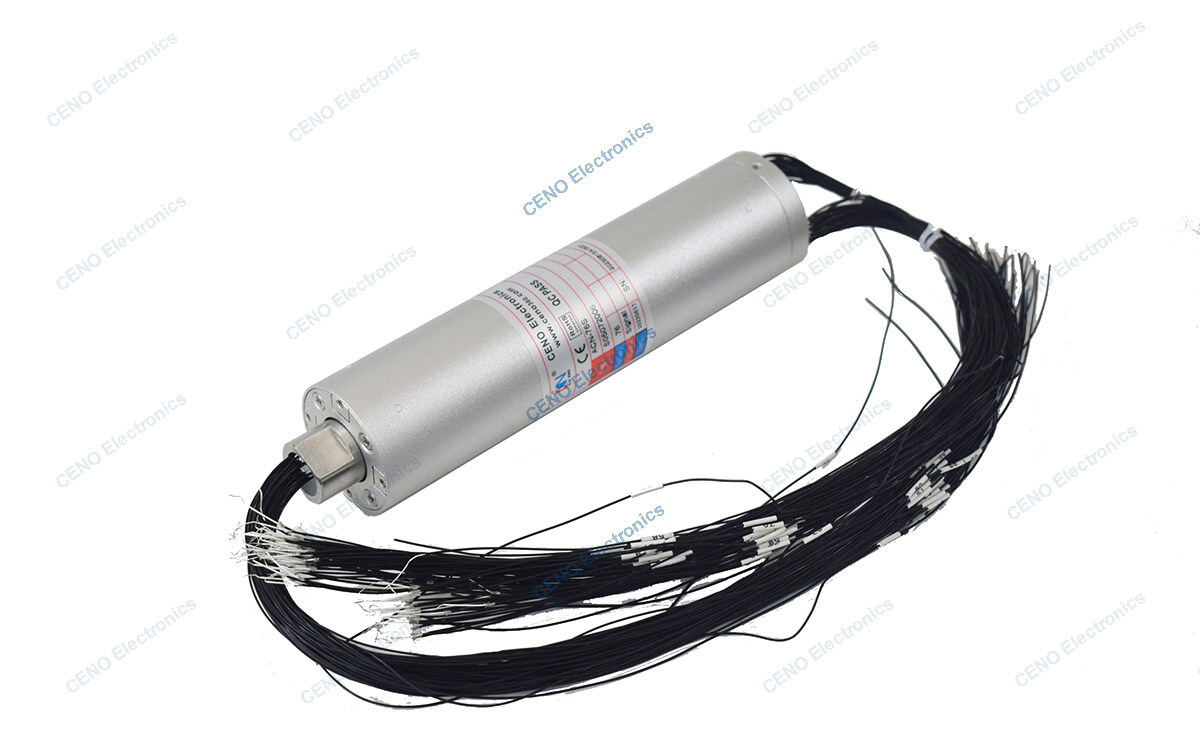

Capsule Slip Ring

• Current & Circuits: 64*coaxial signal; 8*signal; 3*PE; 1*Signal PE
• Dielectric strength: ≥100VAC@50Hz
• Isolation resistance: ≥10MΩ@100VDC
• Contact resistance: 10mΩ (50rpm)
• Contact material: Precious metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+80°C
• Working humidity: 5~85 %RH
• IP protection grade: IP51
• Operating speed: 0~1000rpm
• Lead wire size: AWG30# Wire Teflon® UL; Coaxial wire (ED 0.65mm)
• Lead wire length: Rotor : 300±10mm; Stator : 300±10mm
• External diameter: Ø42mm
• Rotation torque: ≤0.2N.M
• Insert loss: ＜0.2dB
• Isolation: ＞35dB

ACN-76S is CENO new product that is no flange capsule slip ring with 76 circuits for electrical signals for medical equipment. Our compact capsule slip ring family allows stronger flexibility in dealing with systems size requirements when large versions are not allowed. It can be used in any electromechanical system that requires continuous rotating unrestrained when transferring data, signal or power from a stationary to a rotating structure. So it’s also called Rotary electrical interface, swivel, collector, commutator or electrical rotary joint. For how CENO slip ring can fit your specific applications, please contact us.
