Capsule Slip Ring

• Current & Circuits: 10circuits*1A
• Rating Voltage: 240VAC/DC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥1000MΩ@500VDC
• Contact resistance: 1mΩ (50rpm)
• Contact material: Precious metal
• Housing material: Aluminum Alloy / Engineer plastic or metal optional
• Working temperature: -20°C~+60°C
• Working humidity: 5~85 %RH
• IP protection grade: IP54
• Operating speed: 0~300rpm
• Lead wire size: AWG30# Silver coated Teflon® UL
• Lead wire length: 2500mm
• External diameter: Ø10mm
• Torque: ≤0.15g.m

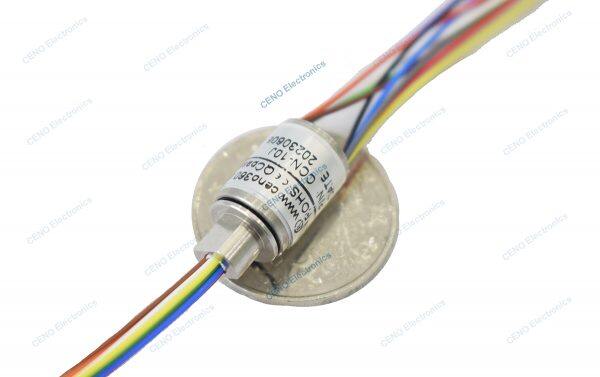

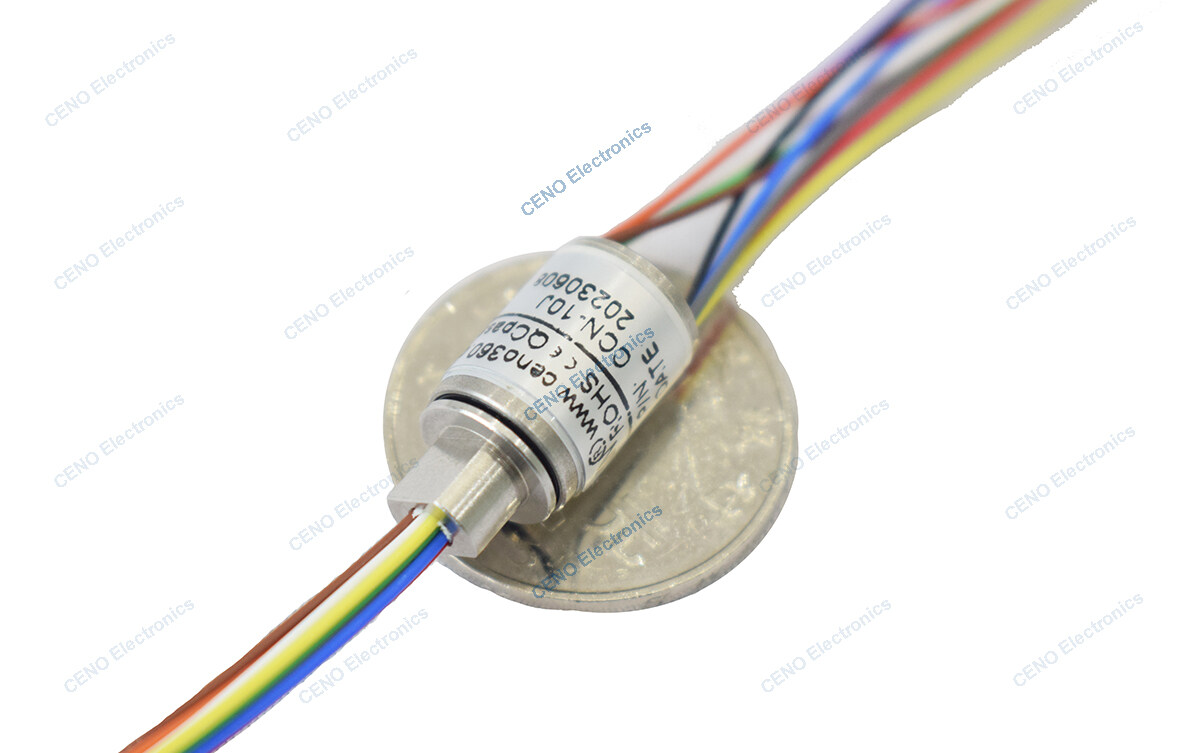

CCN-10J is a CENO new design mini slip ring capsule used to transmit signal. Slip rings play a much broader and important role in industrial automation systems. The mini slip ring capsule in addition to producing compact, light weight and high reliable slip rings, we have provided units that can combine conventional electrical slip rings with encoders, fiber optic rotary joints, pneumatic / hydraulic, radio frequency, and other commodities. More information about how CENO mini slip ring can fit your specific applications, please contact us.
