Capsule Slip Rings

• Current & Circuits: 4 circuit*6A; 6circuit*2A
• Rating Voltage: 0~240VAC/VDC
• Dielectric strength: ≥500VAC@50Hz; ≥100VAC@50Hz
• Isolation resistance: ≥100MΩ@500VDC; ≥10MΩ@100VDC
• Contact resistance: 15mΩ (50rpm)
• Contact material: Precious metal
• Housing material: Engineering Plastic
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP54
• Operating speed: 0~300rpm
• Lead wire size: AW17# Wire Teflon® UL; AW28# Wire Teflon® UL
• Lead wire length: Rotor : 1000±15mm; Stator : 250±5mm
• External diameter: Ø22mm

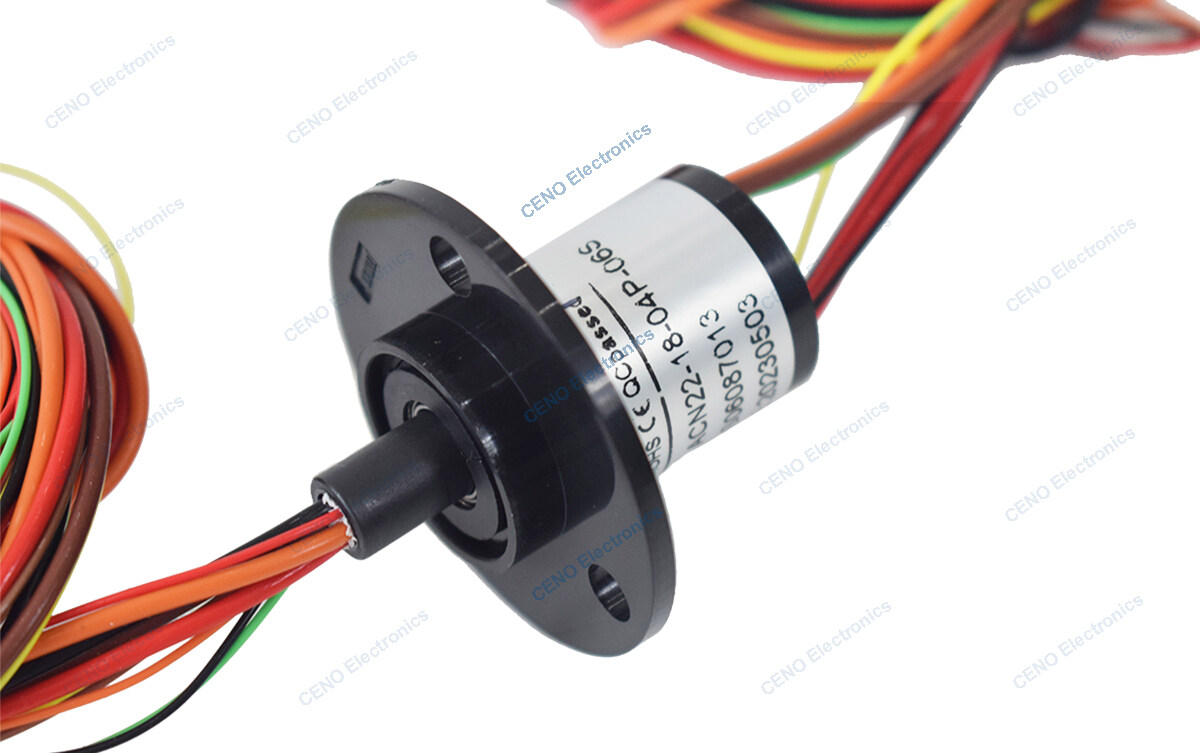

ACN22-18-04P-06S is CENO’s new integrated capsule slip ring which is compatible with 4 circuits for 6A electrical power and 6 circuits for data signal for automatic system machinery. The capsule slip ring has significant features with small compact structure, Military grade surface treatment technology, operating smooth, small torque it’s can combined various data signal & electrical power. CENO have over than 5000 designs. If you can’t find fit slip ring in our product list, please contact us, we have you got it.
