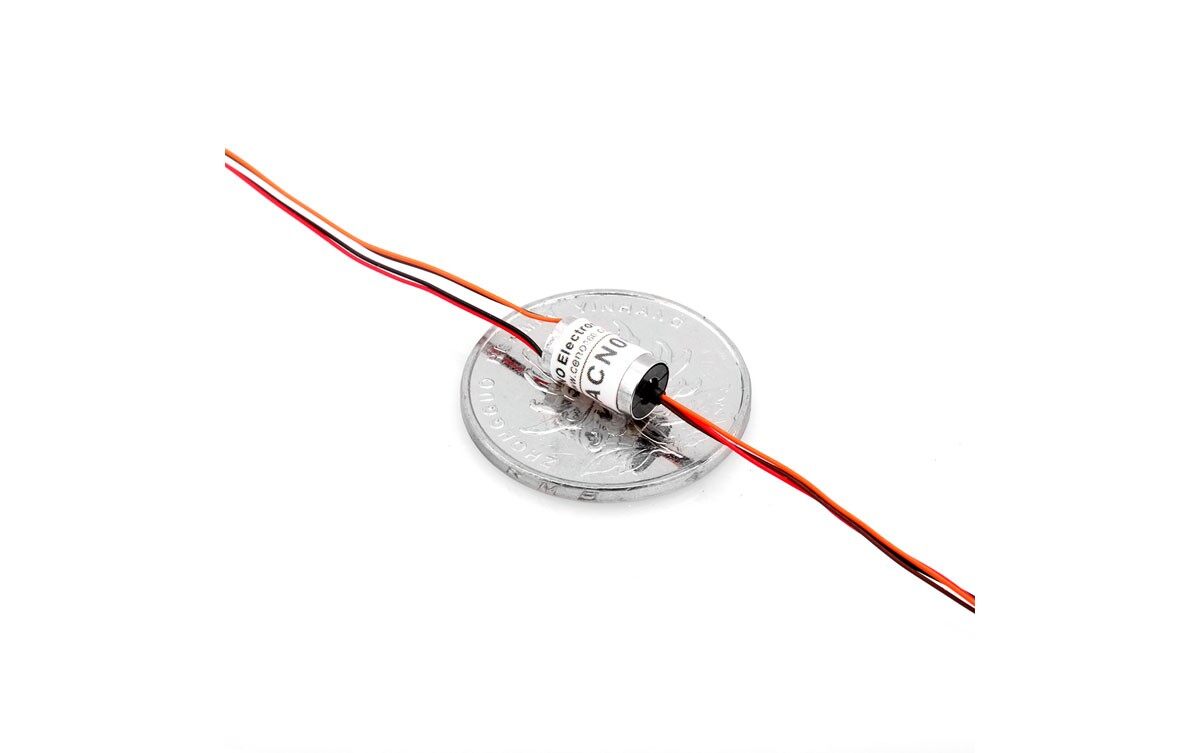

Capsule Slip Rings

• Number of circuits: 5
• Current Rating: 1A/circuit
• Voltage: 240 VAC/DC
• OD: Φ5.5 mm
• Operating Speed: 0-300 rpm
• Operating Humidity: 60%RH or higher
• Electrical noise: <10m Ω
• Operating temperature-20~+80℃
• Protection Grade: IP54
• Housing Material: Stainless steel
• Contact Material: Precious Metals
• Lead wire size: 32#

Option
• Lead wire length
• IP grade
• Operating speed

CCN series is the series which has smallest outer diameter in capsule slip ring.Its gold to gold contact surface make electrical noise extremely low.Circuit number up to 12 and current rating for each circuit could from milliampere to 1Amp.Widely to be used in various applications,like drone,medical machine,camera and so on.Whatever need 360 degree unlimited rotation and transfer signal from stationary to rotation structure could use CENO slip ring to realize the purpose.
