Carbon Brush Slip Ring

Circuits & Current : 18 circuits electrical power
Rating Voltage : 0-480VAC/VDC
Electrical Noise : Max 30mΩ (50rpm)
Contact Material : Copper graphite
Dielectric strength : ≥1500VAC@50Hz;≥300VAC@50Hz
Isolation resistance : ≥500MΩ@500VDC; ≥100MΩ@300VDC
Working temperature : -20°C~+55°C
Working humidity : 90%RH
IP protection grade : IP54
Working Speed : 0~1rpm
Outer : 330mm * 304mm
Housing material : Q235
Installation : Screws binding
Rotation : Circuit rotating, brush state

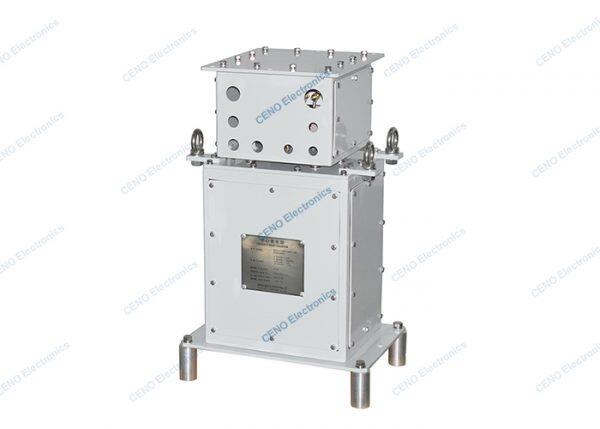

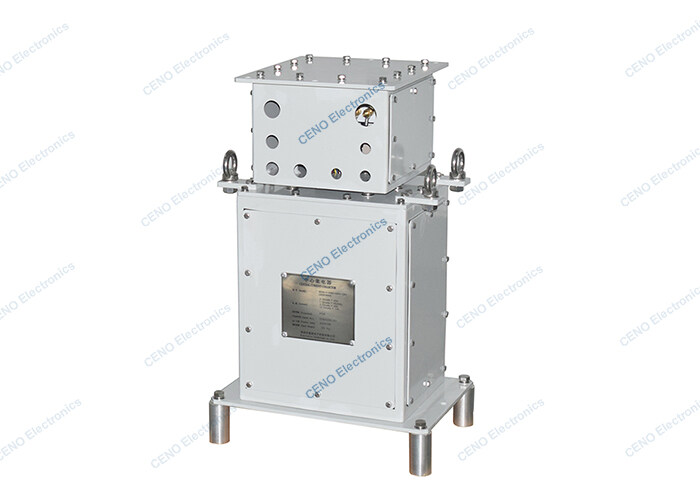

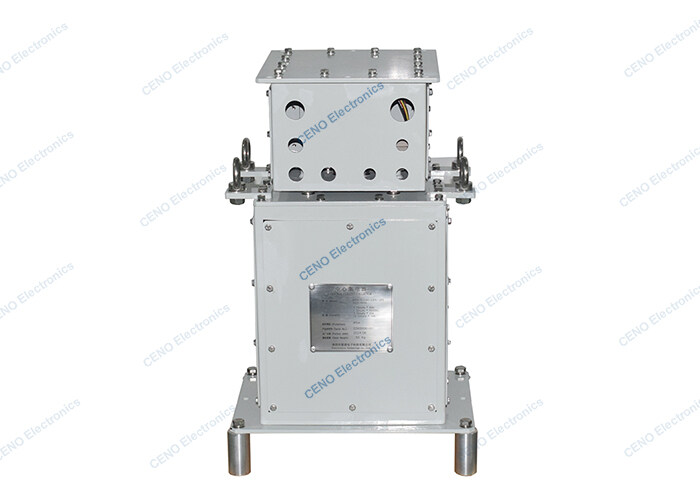

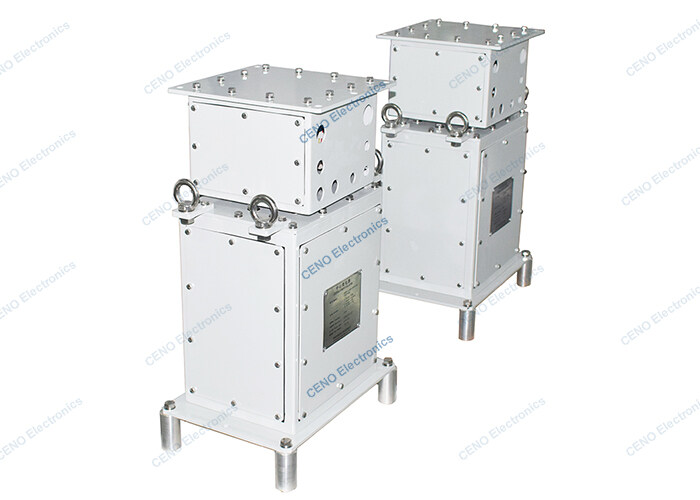

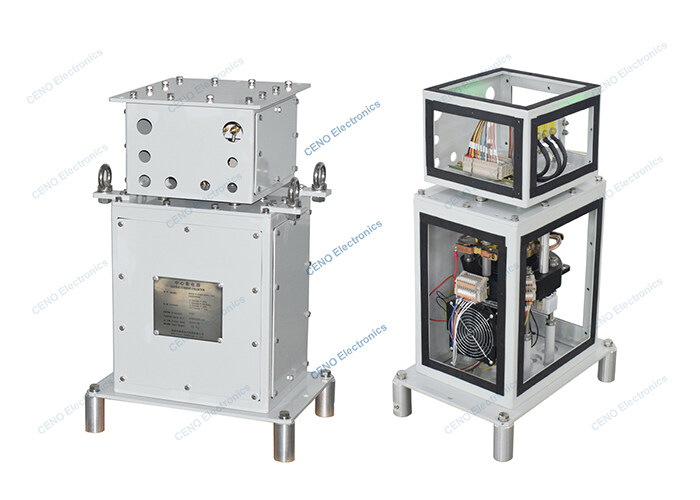

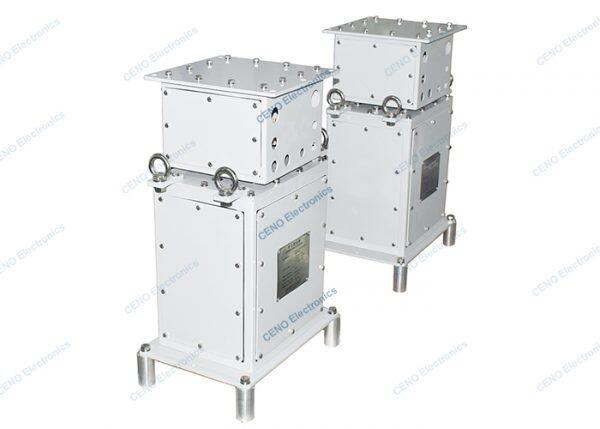

BHCN-C-0365-03P4-12P2 is CENO another carbon brush slip ring customized for marine and engineering machinery. At CENO, carbon brush slip ring often called large power slip ring or high current slip ring used in various applications detail as customer request. The structure & maintenance widow provided according to the on-site operating conditions. The product size adheres to the design concept of small and precise. For more information please contact CENO experts.
