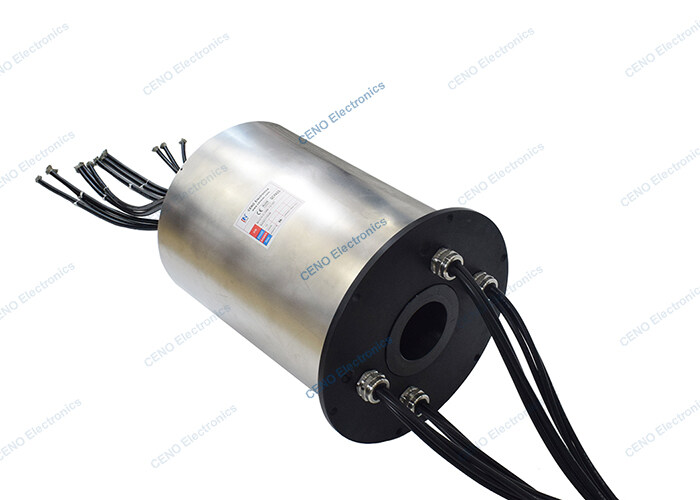

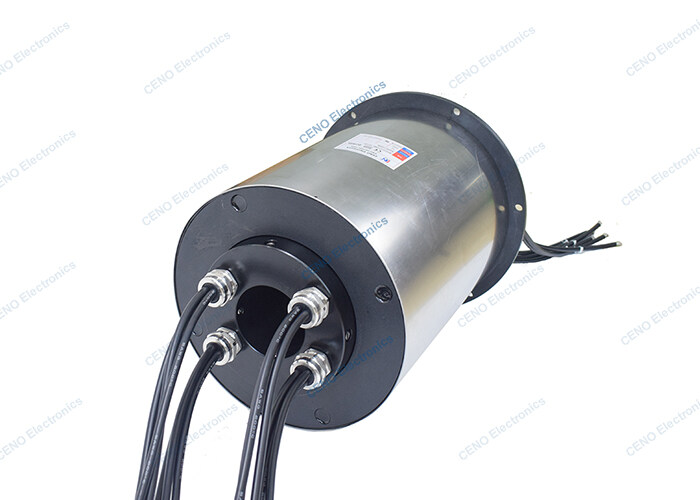

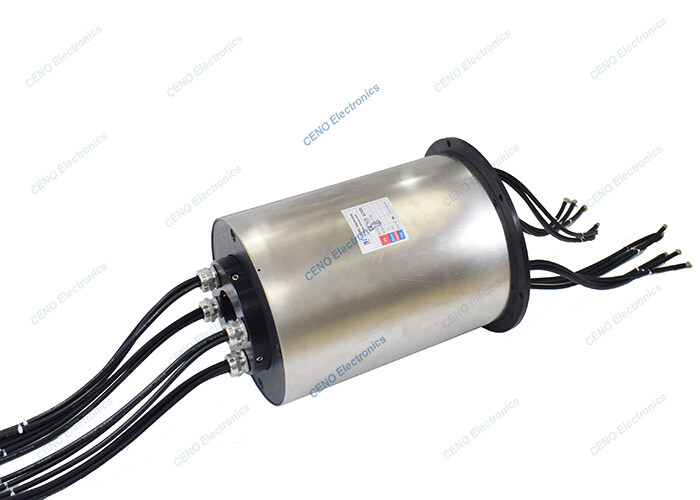

Carbon Brush Slip Ring

Circuits & Current : 12 circuits * High current
Rating Voltage : 0-380VAC/VDC
Dielectric strength : ≥2000VAC@50Hz
Isolation resistance : ≥500MΩ@500VDC
Electrical Noise : Max 30mΩ (50rpm)
Working temperature : -20°C~+60°C
Working humidity : 60%RH
IP protection grade : IP51
Working Speed : 0~30rpm
Inner Diameter : Ø96mm
Outer Diameter : Ø330mm
Contact Material : Copper graphite
Housing Material : Stainless steel
Lead wire : Rotor side : As customized
Installation : Flange installation

BHCN-C-096-12100 is CENO customized carbon brush slip ring with high current electrical power for offshore platform, often called Central collector or large power slip ring. CENO have served around 5000 customers in past twenty years and slip rings used in high-end industrial electrical equipment or precision electronic equipment with multiple functions, high performance & precision and continuous rotation movements. Please visit CENO website to find more solutions that suit or similar to your application.
