Carbon Brush Slip Ring

Circuits & Current : 6 circuits high current electric power
Rating Voltage : 0-380VAC/VDC ; 0-230VAC/VDC
Dielectric strength : ≥1500VAC@50Hz
Isolation resistance : ≥500MΩ@500VDC
Contact Material : Copper graphite
Electrical Noise : Max 10mΩ (50rpm)
Circuits & Current : 25 circuits electric power & Ethernet signal
Dielectric strength : ≥1000VAC@50Hz; ≥300VAC@50Hz
Insulation Resistance : ≥500MΩ@500VDC
Contact Material : Precious Metal / Gold to gold
Electrical Noise : Max 30mΩ (50rpm)
Maintainability : No maintenance
Working Speed : 0~10rpm
Rotation Way : Brush rotation, Ring keep state
IP protection grade : IP54

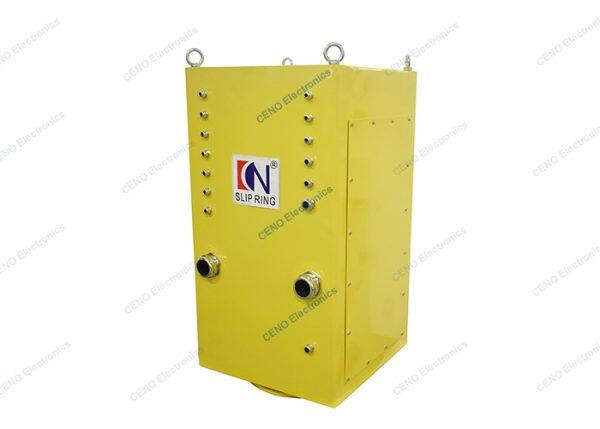

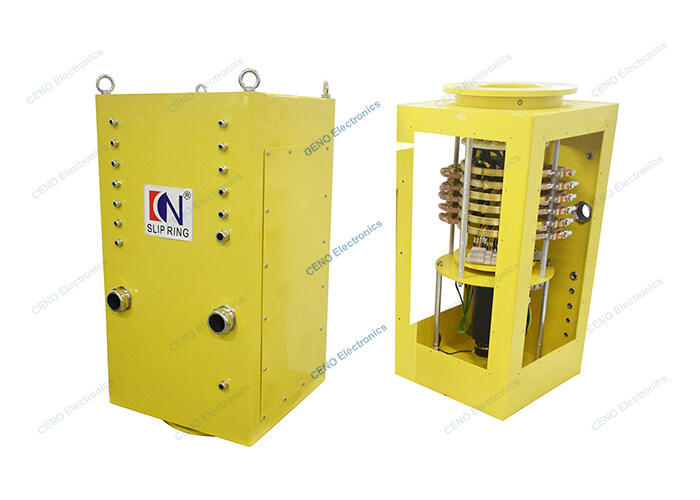

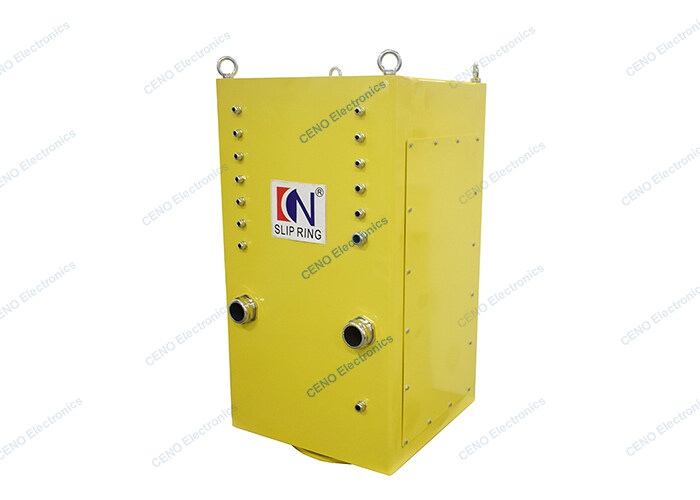

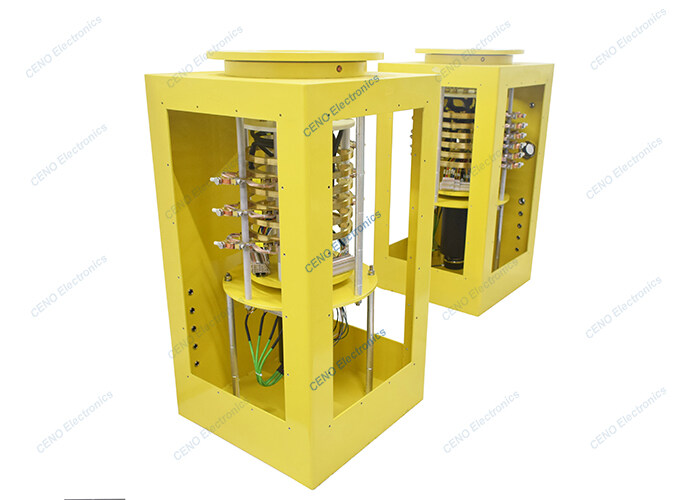

BHCN-C-26P-04EG-01EM-VB is CENO new customized slip ring with high current and combined electric power with Ethernet signals for the harbour machinery. CENO carbon brush slip ring is called central collector, high current slip ring or large power slip ring also. It features excellent conductivity, fatigue resistance and lubrication performance. Can combine and transmit various power data or signals, such as integrate RS, USB, Ethernet, pneumatic / hydraulic FORJs or RF rotary union etc. More information please contact CENO
