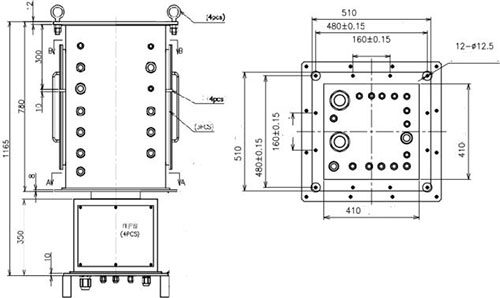

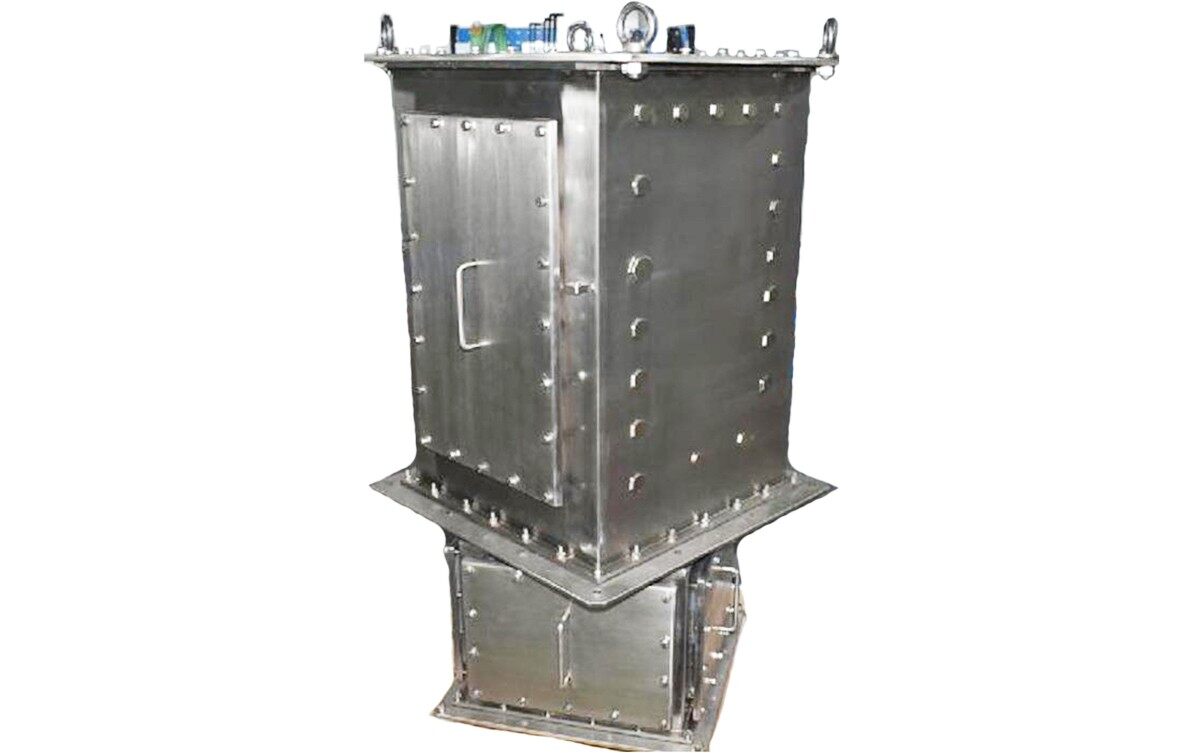

Carbon Brush Slip Rings

• Current:: 3*550A(690VAC),3*80A(230VAC),3*50A(480VAC), 20*15A,2*10A,9*signal
• Voltage: 690VAC/480VAC/230VAC/24VAC
• Dielectric strength:≥1000VAC@60Hz
• Insulation resistance:500MΩ@500VDC,300MΩ@100VDC
• Resistance fluctuation:≦70mΩ
• Operating speed: 0-1 rpm
• Contact material: Copper graphite，silver-coated brush
• Housing material: Engineering plastics
• Working humidity: ＜90%RH
• Operating temperature: -10℃~+55℃
• IP protection grade: IP56

CENO’s carbon Brush slip ring is also named as large current collector or high power slip ring, which could transmit the current at lease on 100A or above. It widely be used in ship machinery, engineering machinery, port machinery, offshore crane, cable reel, propeller,as well as drilling platform.
