Carbon Brush Slip Rings

• Circuits&Current: 6*600A; 4*switching signal, 32*thermal resistance signal
• Voltage: 600VAC; 24VDC
• Electrical noise: ≤5mΩ(50rpm); ≤30mΩ(50rpm)
• Dielectric strength: ≥2000V@60Hz ≥500V@60Hz
• Isolation resistance: 500MΩ@500VDC; 100MΩ@100VDC
• Contact material: Copper graphite; Alloy brush wire (silver plated)
• Maintainability: Regular maintenance: Maintenance-free
• Operating speed: 0-20 rpm
• Operating temperature: -30~+80℃
• IP protection grade: IP44

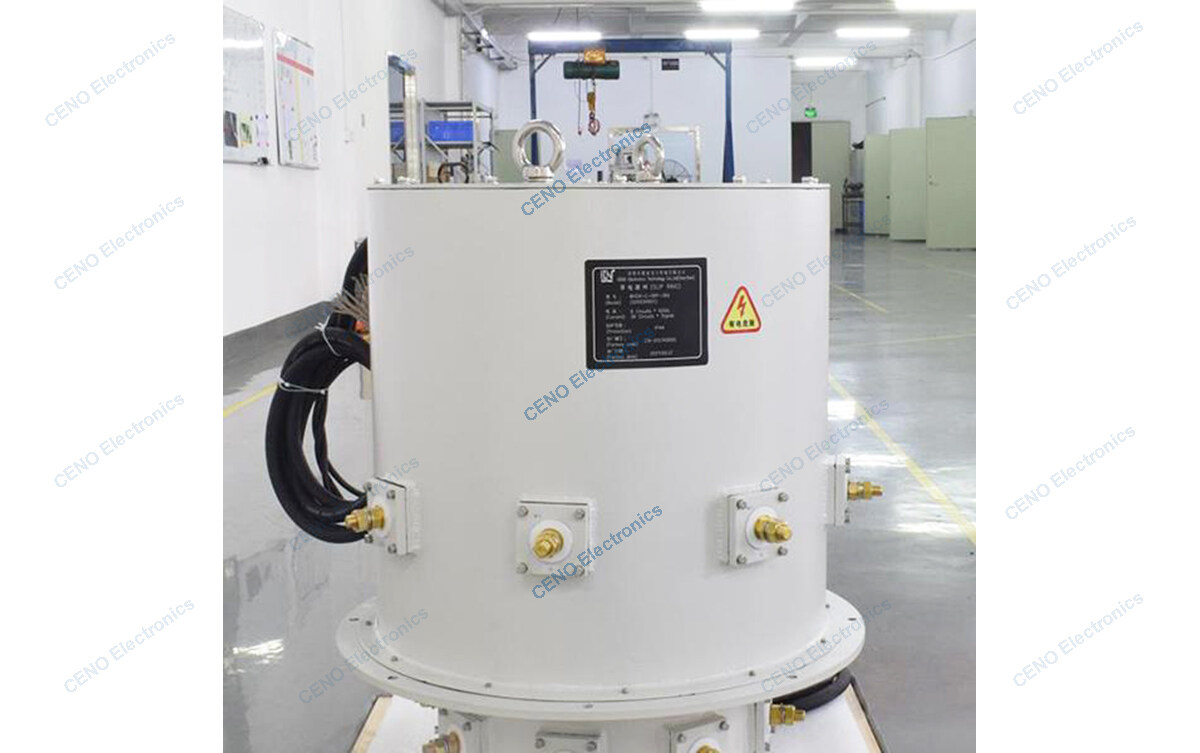

This is CENO BHCN series high current slip ring, it is used for marine propeller equipment, contact material applied copper graphite and fiber brush wire. It transmits current, switching signal and thermal resistance signal. Designed 6 bolt connector allows users to connect wires for high current (600A). The shaft is used to install the encoder, its housing material iscarbon steel paint spraying.
