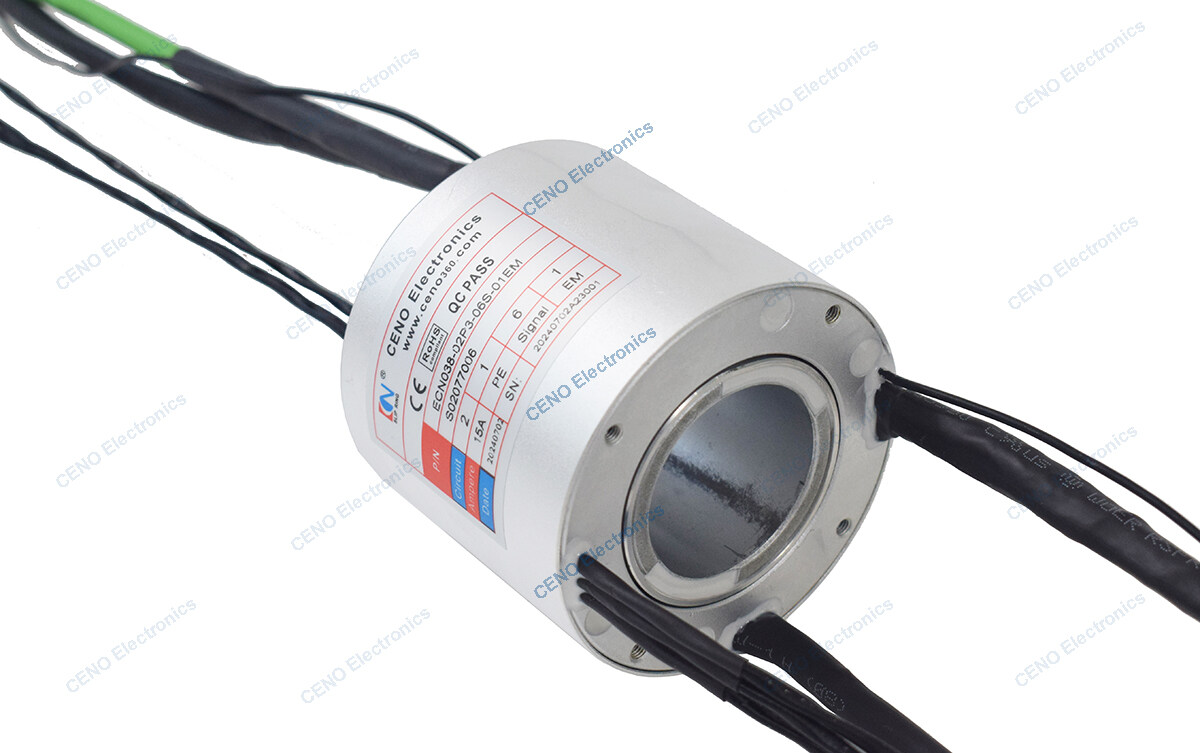

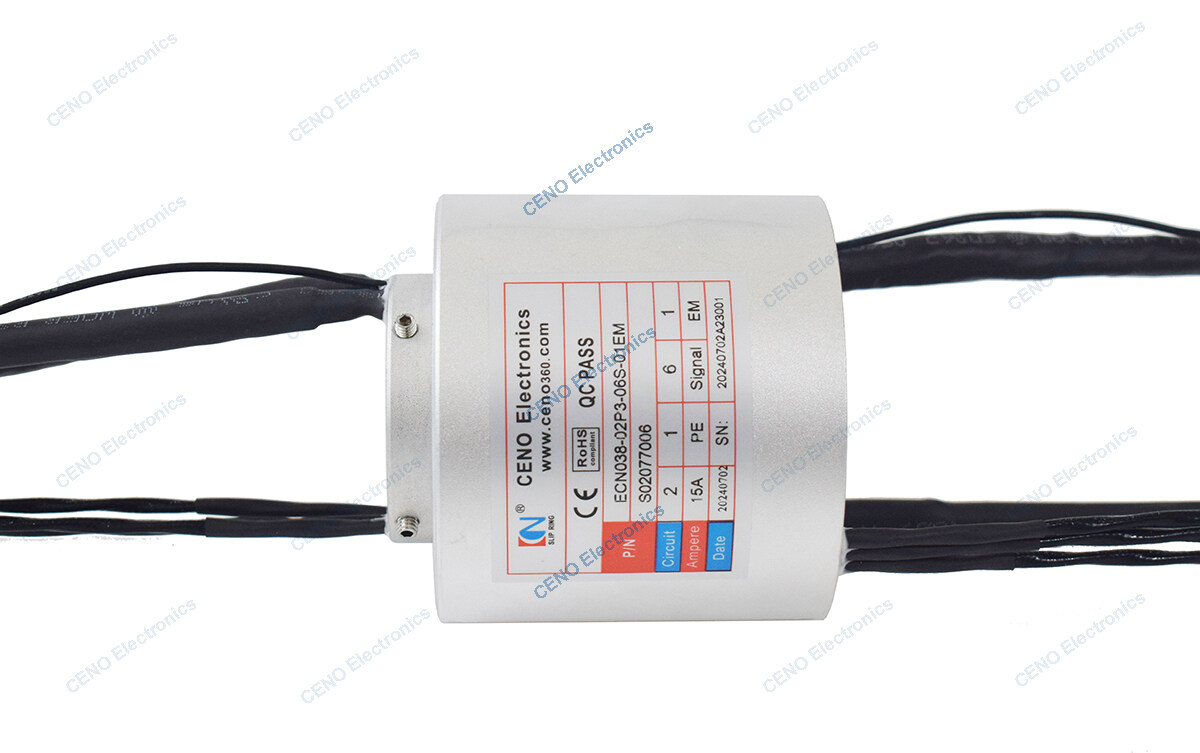

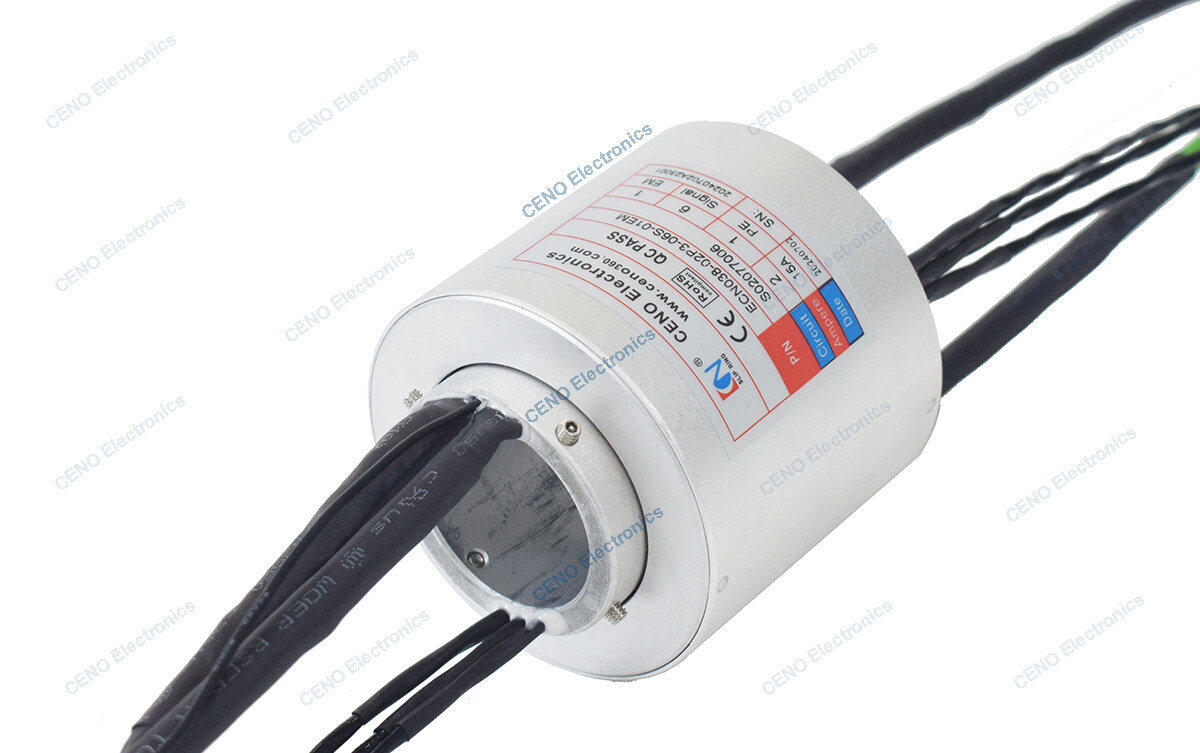

ECN038-02P3-06S-01EM Low Temperature Slip Ring

• Current & Circuits: 2 circuits*15A; 1* PE; 3 Group * 422/232 Signal; 1 Group * 100M Ethernet
• Rating Voltage: 0 ~ 380VAC / VDC
• Dielectric strength: ≥1000VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Electrical Noise: ≤70mΩ (50rpm)
• IP Grade: IP54 Working humidity: ≤ 60%
• Working temperature: -40℃ ~ +80℃
• Inner diameter: Ø38.1mm
• Operating speed: 0~300 rpm
• Contact material: Precious Metal / Gold to Gold
• Housing material: Aluminum Alloy
• Lead wire size: AWG17# 22# Soft rubber wire; 2-core twisted shielded wire
• Lead wire length: Rotor side: 300mm; Stator side: 300mm
• Rotation Way: Rotor side fixed on guest main shaft with screws

ECN038-02P3-06S-01EM is CENO new low temperature slip ring which combine electric power, RS422 / 232 signal and Ethernet Signals, and working stably within temperature -40℃ to +80℃. CENO High / low temperature slip ring is one of function slip ring and has features of advanced materials to suit the working environment to avoid low temperature affecting the physical and electrical properties of the material. For more information please contact CENO experts
