- Current & Circuits: 3 circuits*10A; 7circuits*2A; 1Group*100M Ethernet
- Rating Voltage: 380VAC / VDC
- Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
- Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
- Electrical Noise: ≤ 70mΩ (50rpm)
- IP Grade: IP51
- Working humidity: ≤ 90%
- Working temperature: -20℃ ~ +60℃
- Inner diameter: Ø100mm
- Operating speed: 0~50 rpm
- Contact material: Precious Metal
- Housing material: Aluminum Alloy
- Lead wire size: AWG 16# Tin coated Teflon® UL6-core twist shielded wire
- Lead wire length: Rotor side: 500mm; Stator side: 500mm
- Rotation Way: Fix up stator side with anti-rotation side shaft drives rotor running

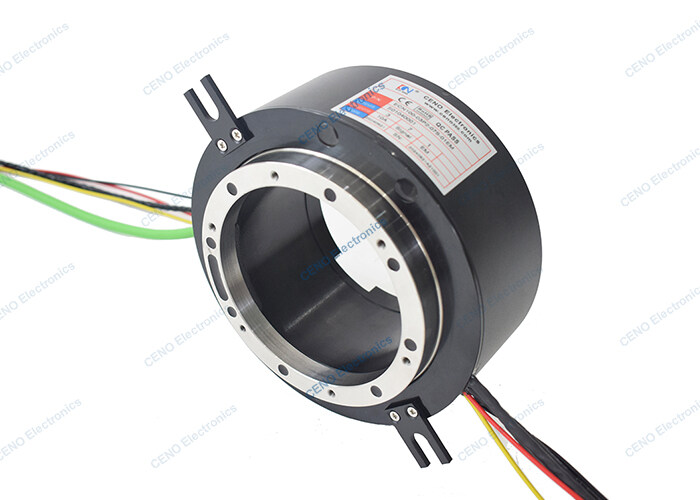

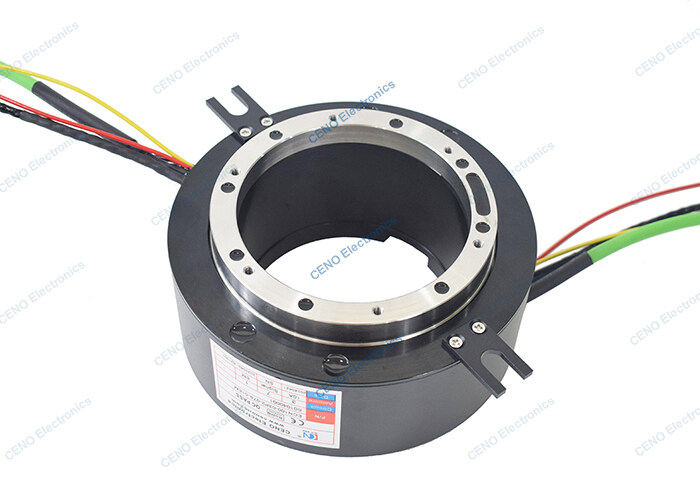

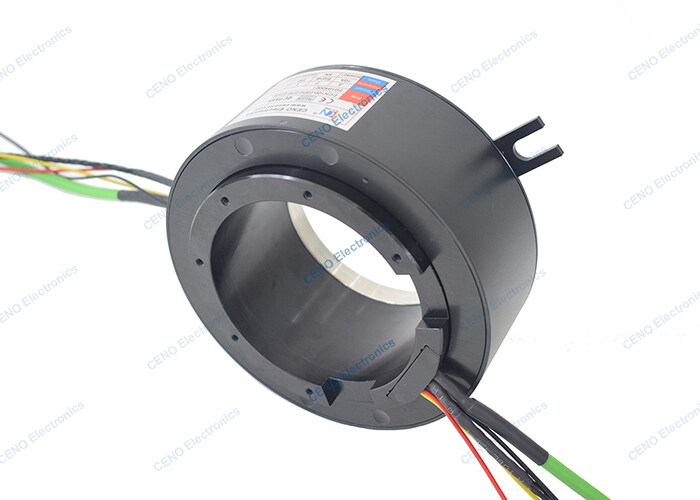

ECN100-03P2-07S-01EM is CENO through bore slip ring with 10 circuits electrical power and 1 group Megabit Ethernet signal for the industrial system or amusement equipment. CENO have types of slip ring, the through bore slip ring is currently the most cost effective and extensive-selling series of industrial slip rings. Often used in the situations as amusement and entertainment equipment, manipulators or the latest VR simulation equipment. For more information please contact us.
Features
- Integrate multifarious signals
- Through hole design 3-980mm option and adopts to harsh environment
- Install easy & Free maintenance
Applications
- Automatic machine
- Turntable testing machine
- VR simulation equipment
- High-end amusement equipment
- Electric construction machinery
Optional
- Circuit, Voltage, Current
- Lead wires out let method
- ID & OD size
- IP Grade & Materials
- Working temperature & speed
