Encoder Integrated Slip Ring

• Current & Circuits: 8*25A; 8*15A; 16*10A; 29*5A; 8*2A; 2*1A; 2*Encoder signal
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1500VAC@50Hz; ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
• Electrical Noise: 30mΩ (50rpm)
• Contact material: Precious Metal / Gold to gold
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP54
• Operating speed: 0~300rpm
• Lead wire length: Rotor – 1500mm; Stator – 3000mm

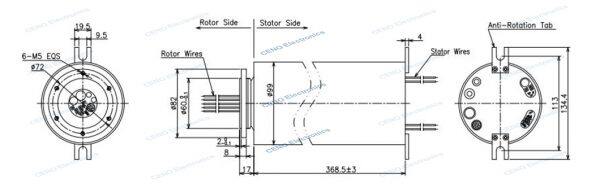

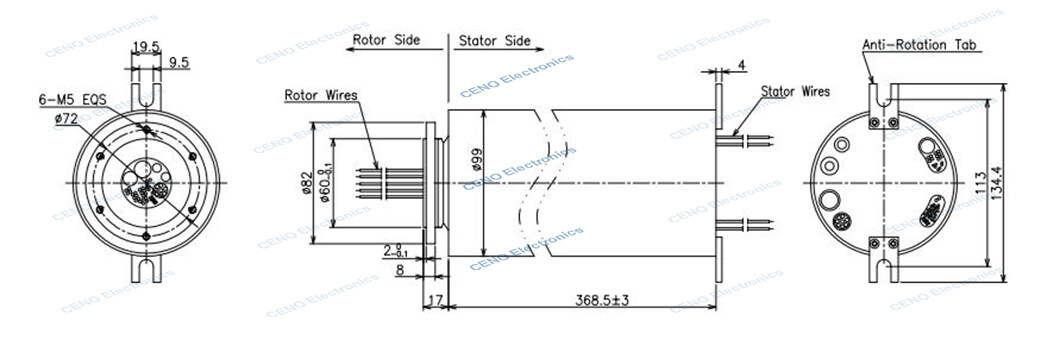

• External diameter: Ø99mm

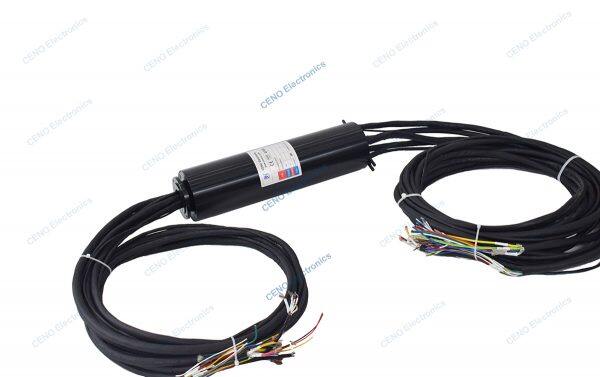

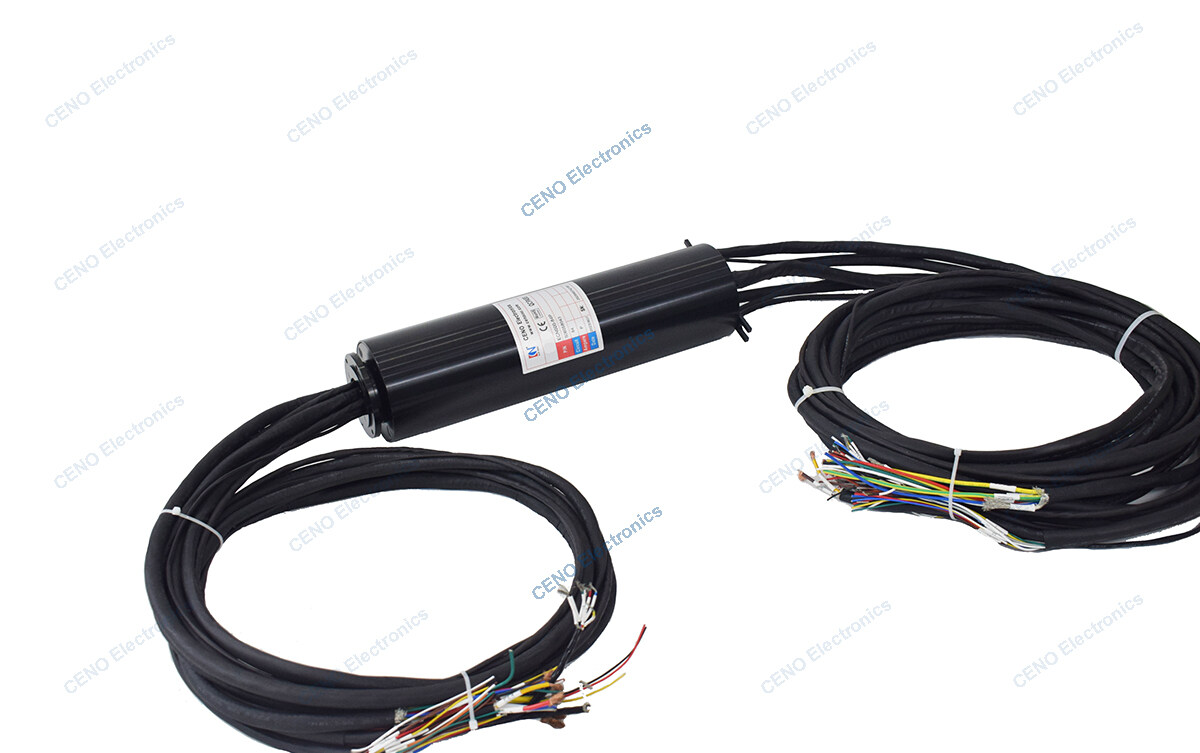

ECN000-84P is CENO Encoder integrated slip ring with multi-channels automatic industrial applications, CENO has produce and manufacture around 5000 designs in past twenty years. Most of these products are developed for rugged environments and demanding requirements, take Encoder integrated slip ring for example, the typical applications include Electro-optic systems, Engineering Machinery, Ship crane, Offshore equipment or Oil well drilling. Most of the parameters as channels, circuits, protection grade, installation and integrated signals are optional. More information please contact us.
