Encoder Integrated Slip Ring

• Current & Circuits: 14*5A; 1*Encoder signal
• Rating Voltage: 0~400VAC/VDC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Electrical Noise: 30mΩ (50rpm)
• Contact material: Gold to Gold / Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP65
• Operating speed: 0~300rpm
• Lead wire size: AWG20# Wire Teflon ® UL; Six core twisted shielded wires (0.3mm²)
• Lead wire length: Rotor – 1000mm; Stator – 1000mm

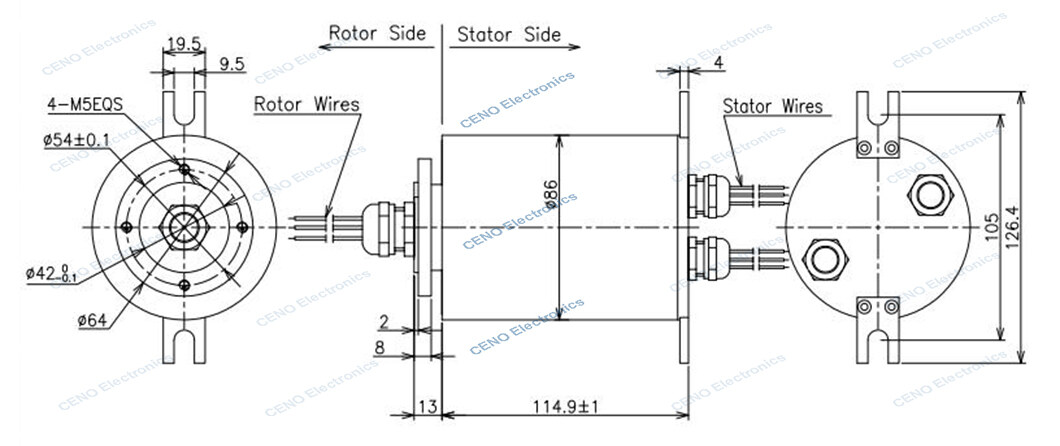

• External diameter: Ø86mm

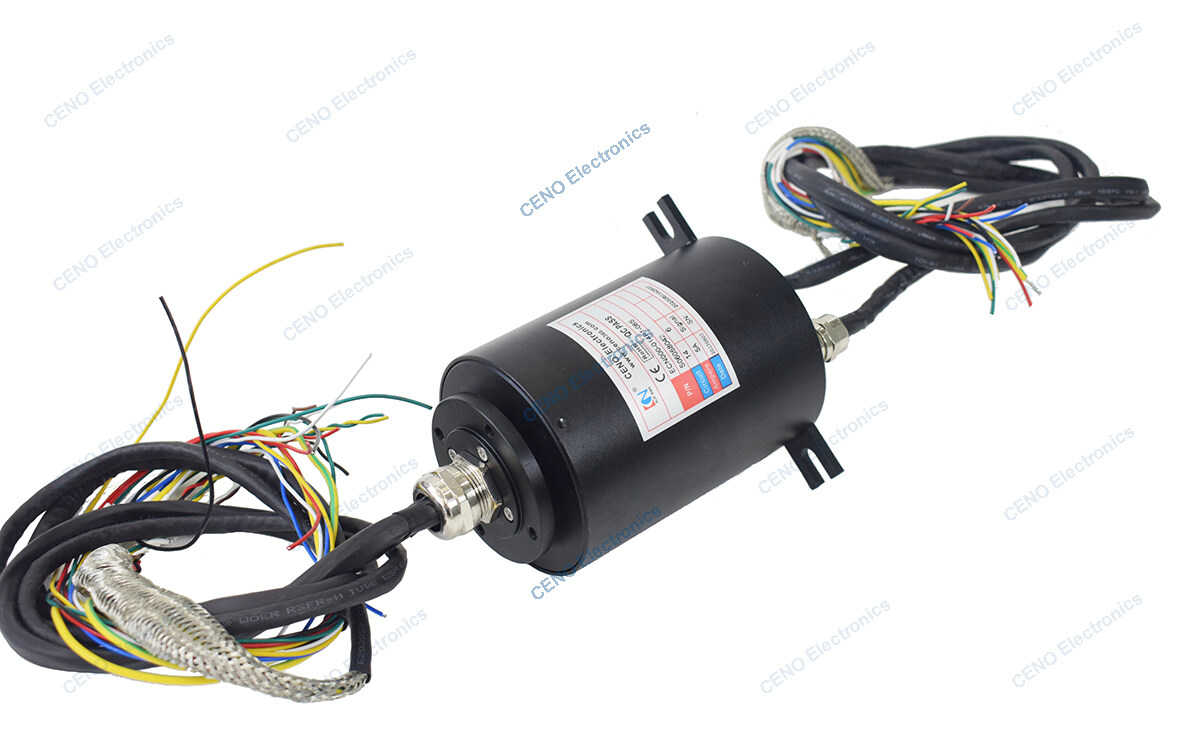

ECN000-014P1-06S is CENO new integrated slip ring which combined electrical signals and 1group Encoder signal, the protection grade is IP65 and can be up to IP68 for custom specific applications. Encoder is a sensor used to measure or control the position, speed or direction of an object in a system. In addition to producing compact, high reliable, Encoder integrated slip rings, CENO has provided units that combine conventional electrical slip rings with fiber optic rotary joint, RF Rotary union, Pneumatic / hydraulic rotary union and other commodities. More information please contact us.
