Encoder Slip Ring

• Current & Circuits: 4*5A, 44*Signal(24*Encoder)
• Rating Voltage: 0~240VAC/VDC
• Dielectric strength: ≥500VAC@50Hz; ≥100VAC@50Hz
• Isolation resistance: ≥100MQ@500VDC; ≥10MQ@100VDC
• Electrical noise: ≤35mΩ (50rpm)
• Lead wire size: RG178 / AWG22# / AWG28#
• Working temperature: -20°C~+60°C
• Working humidity: 60%
• Operating speed: 0~300 rpm
• Contact material: Precious metal
• Housing material: Engineering plastic
• Lead wire length: Stator : 3000mm±5mm; Rotor : 1000mm±5mm
• IP protection grade: IP40

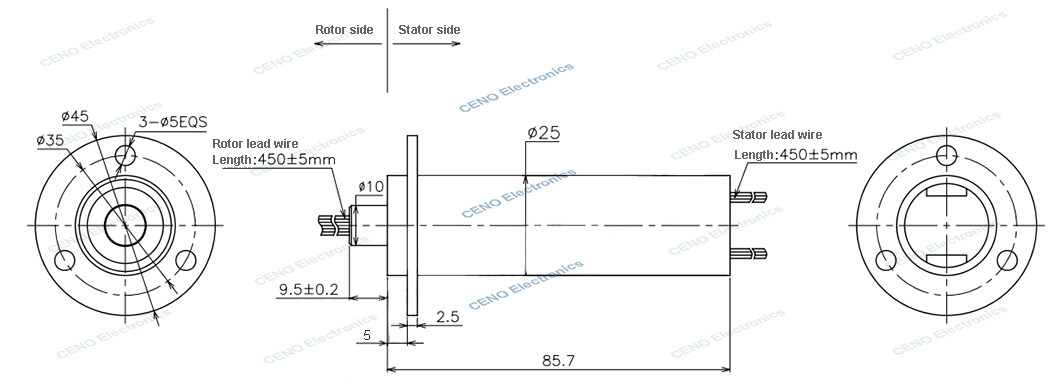

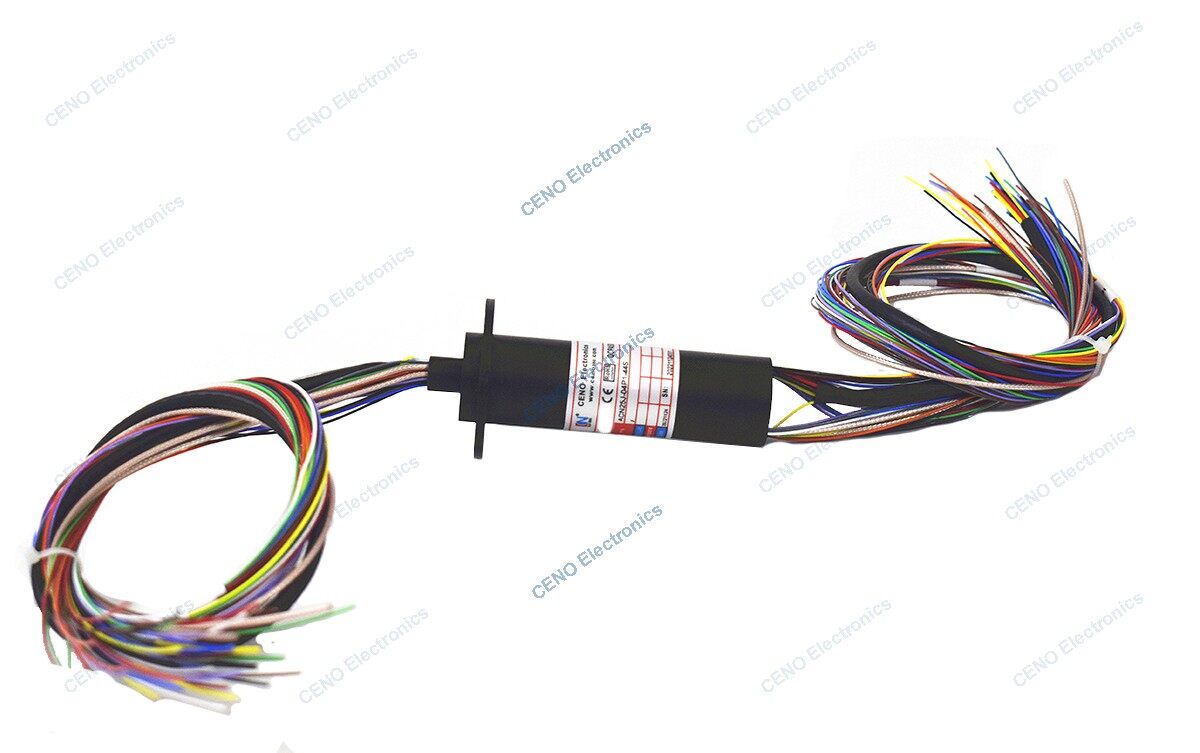

ACN25J-04P1-44S is an integrated capsule slip ring combined 4circuits for 5A electric power, 44 channels for signal which including 24 channels for Encoder signal from CENO Electronics. The surface treatment of CENO capsule slip ring adopt domestic leading military technology and with high design accuracy, due to the small compact structure it’s especial suit for the small rotation system to transmit weakness control signals. Usually apply to the Medical equipment, Instrument and apparatus, serial communication or motion simulator.
