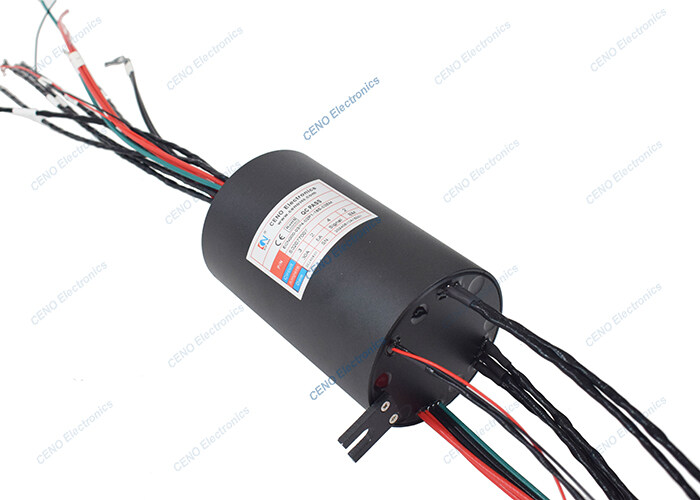

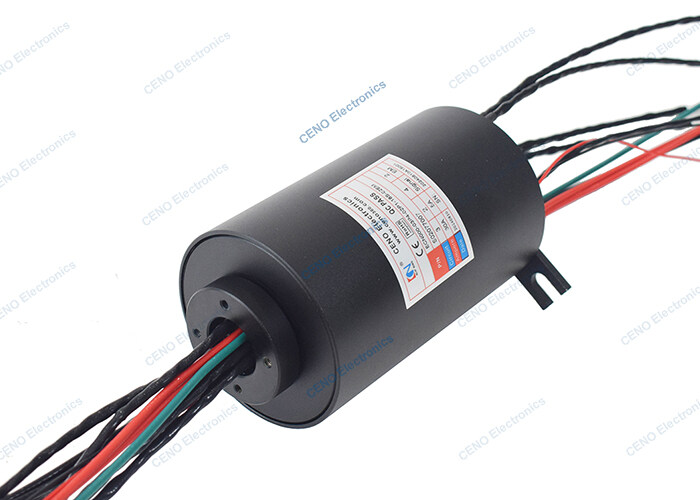

Ethernet Signal Slip Ring

Circuits & Current: 9 * electric power & signal; 2 * Ethernet signal
Rating Voltage : 220VAC/VDC
Dielectric strength: ≥1000VAC@50Hz; ≥500VAC@50Hz
Isolation resistance : ≥500MΩ@500VDC; ≥100MΩ@100VDC
Electrical Noise : Max 30mΩ (50rpm)
Working temperature : -20°C~+60°C
Working humidity : 60%RH
IP protection grade : IP51
Working Speed : 0~300 rpm
Outer Diameter : Ø86mm
Contact Material : Precious Metal / Gold to Gold
Housing Material : Aluminum alloy
Lead wire size : As Customized
Lead wire length : As Customized
Installation : Anti-Rotation Tab

ECN000-03P4-02P1-18S-02EM is CENO Ethernet signal slip ring which combines circuits electric power, signals and Ethernet signal for commercial. CENO’s Ethernet signal slip ring have been developed to provide reliable products to allow transfer Ethernet protocol through a rotating interface. A wide range of production solutions are offered with combinations of electric power, signals, FORJs and data in multiple mechanical configurations to meet your special applications. More information please contact us.
