Ethernet Signal Slip Ring

• Circuits & Current: 3 circuits * 20A; 2 group *1000M Ethernet
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz; ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Electrical Noise: Max 30mΩ (50rpm)
• Working temperature: -20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP41
• Working Speed: 0~60 rpm
• Inner Diameter: Ø25mm
• Outer Diameter: Ø86mm
• Contact Material: Precious Metal / Gold to gold
• Housing Material: Aluminum alloy
• Lead wire size: AWG12# Wire Teflon® UL; CAT5e
• Lead wire length: Rotor side: 10m; Stator side: 3m
• Installation: Anti-rotation tab installation

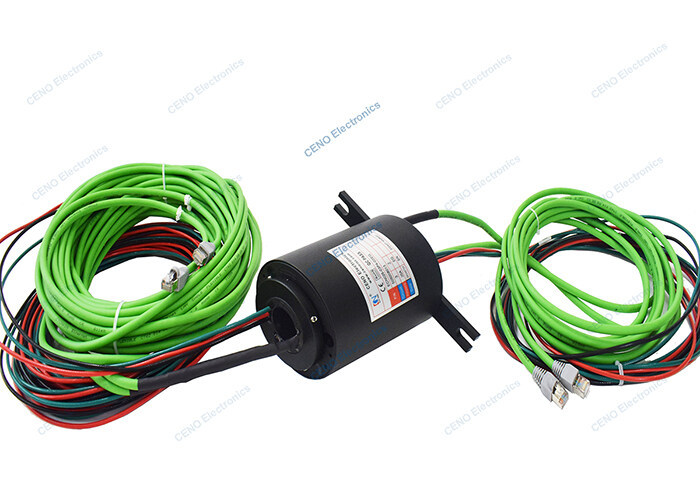

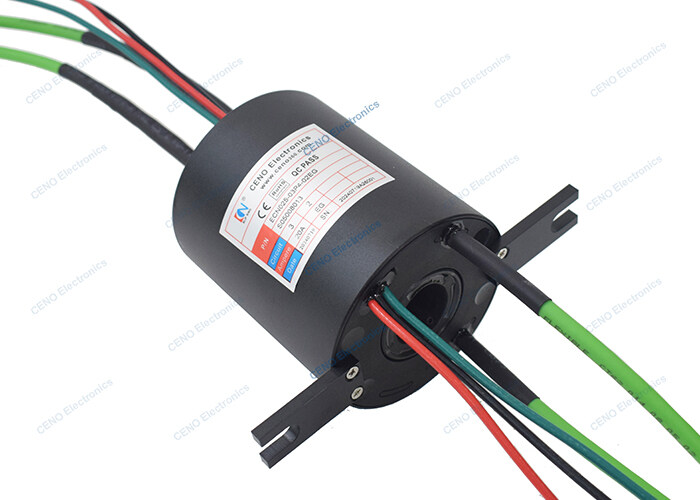

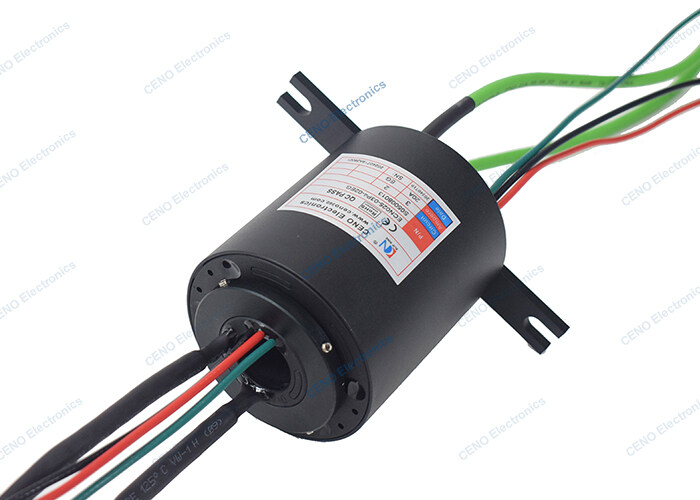

ECN025-03P4-02EG is CENO through hole slip ring with gigabit Ethernet signal and flange installation. Ethernet technology is a kind of network technology which is the most commonly used in communication bandwidth of 1GB for internet and communication system. It has the simplicity and directly of Ethernet and the the economy of a similar working speed communication system. Flange and anti-rotation tab design for easy installation. For more information please contact us.
