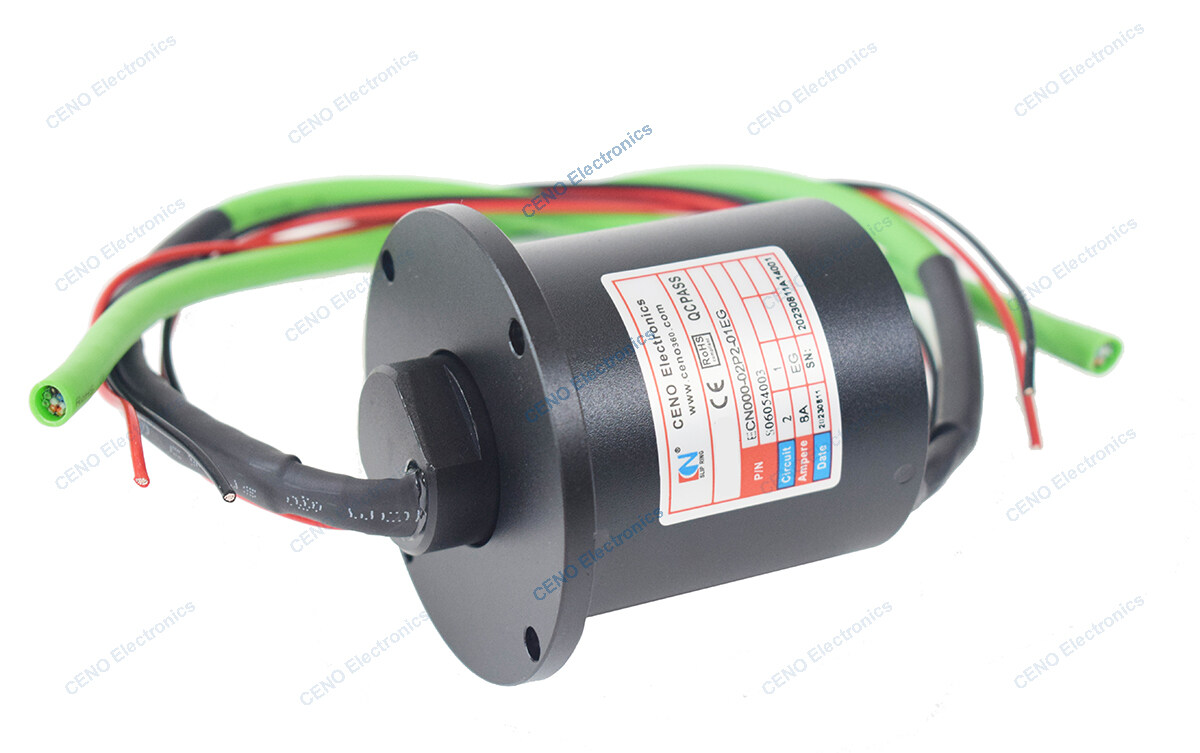

Ethernet Signal Slip Ring

• Current & Circuits: 2*8A, 1*Gigabit Ethernet
• Rating Voltage: 0~400 VAC/VDC
• Dielectric strength: ≥800VAC@50Hz; ≥100VAC@50Hz
• Isolation resistance: ≥50MΩ@200VDC; ≥10MΩ@100VDC
• Contact resistance:≤35mΩ (50rpm)
• Working Temperature:-20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP40
• Operating speed: 0~50 rpm
• Contact material: Gold on gold
• Housing material: Aluminium alloy
• Lead wire length: Rotor: 250±5mm Stator: 250±5mm

ECN000-02P2-01EG is CENO new product Gigabit Ethernet slip ring which combined 2 circuit for 8A power and 1group Gigabit Ethernet Signal. And the innovative slip ring technology can integrated a variety of signals, data, pneumatic / hydraulic , FORJ or RF for different applications, making it a versatile and efficient solution for a wide range of industries. Whether you’re working in aviation, medical equipment or any other industry that requires advanced signal transmission technology, CENO slip ring can deliver the performance you need. More information please contact us.
