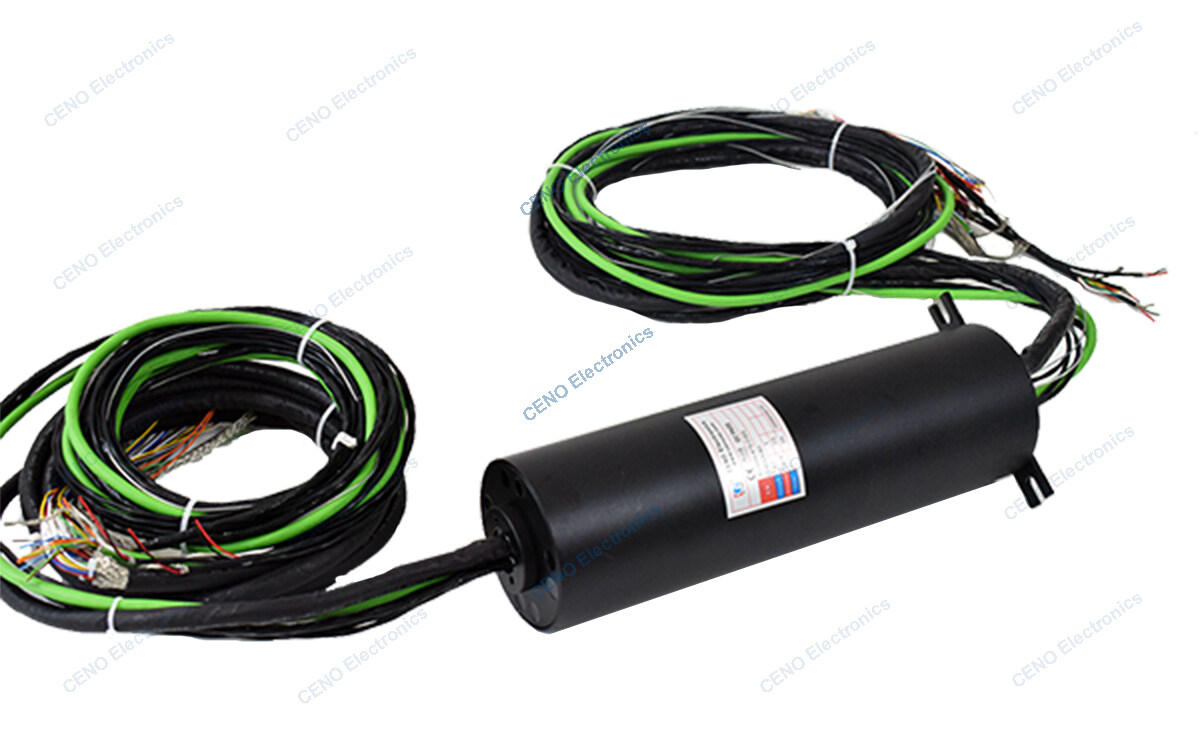

Ethernet Slip Ring

• Current & Circuits: 47*1A; 1*PE;1*RS485; 9*signal; 1*Gigabit Ethernet
• Rating Voltage: 0~50VAC/VDC
• Dielectric strength: ≥300VAC@50Hz
• Isolation resistance: ≥100MΩ@300VDC
• Contact resistance: 70mΩ (50rpm)
• Contact material: Gold to Gold
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP51
• Operating speed: 0~550rpm

Lead wire size:

• AW24# Single Wire
• AW24# Eight-core Twisted Shielded
• Wire AW24# Two-core Twisted Shielded Wire
• CAT5e

Lead wire length: Rotor: 3000mm; Stator: 3000mm
External diameter: Ø86mm
Rotation way: Anti-Rotation Tab

ECN000-67S-01EG is an Ethernet slip ring with Gigabit Ethernet, RS485 and power electrical signal for industrial automatic system from CENO Electronics. Ethernet slip ring has the characters of high speed and stability, strong reliability and wide application range. Can transmit 1000M Gigabit Ethernet signal stably and no electromagnetic interference between current and signal, comply with EMC electromagnetic compatibility requirements. For more information about how CENO’s slip ring can fit your specifications, please contact us.
