Ethernet Slip Ring

Current & Circuits: 2*6A; 1*PE; 1*Signal; 2*net wire
Rating Voltage: 220 VAC
Dielectric strength: ≥1000VAC@50Hz ≥300VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
Operating speed: 0~50rpm
Contact material: Precious Metal
Housing material: Aluminum alloy
Inner Diameter: 25.4mm
Working temperature: -20°C~+60°C
Working humidity: 60%
IP protection grade: IP54
Lead wire length: Rotor:2000mm; Stator:2000 mm

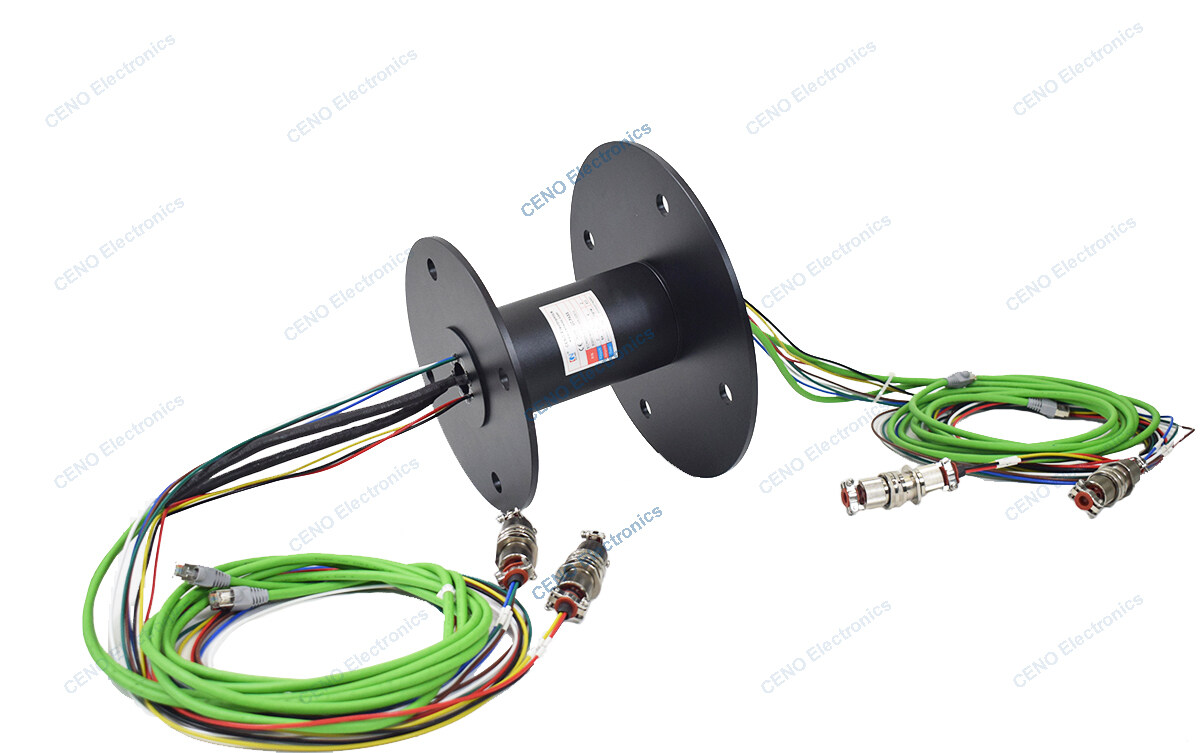

ECN025-03P2-04S-02EG is a Gigabit Ethernet slip ring compatible with through hole and integrated electrical collector for industrial application from CENO Electronics. There are 2 group for 1000M Ethernet signal, 3 circuits for 6A power and 4 circuits for signal with the JY3111F1404PNL connectors. Ethernet hybrid slip rings run Ethernet signal, data and power from stationary structures to rotating side by copper or precious metal channels, and most of the parameters are optional. If CENO’s standard slip rings aren’t fit what you’re looking for, please contact us, we design for your specific applications.
