Ethernet Slip Ring

• Current & Circuits: 2circuits*6A; 1circuit*PE; 1Group*Signal; 2Group*net wire
• Rating Voltage: 220 VAC
• Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
• Operating speed: 0~50rpm
• Contact material: Precious Metal
• Housing material: Aluminum alloy
• Inner Diameter: 25.4mm
• Working temperature: -20°C~+60°C
• Working humidity: 60%
• IP protection grade: IP54
• Lead wire length: Rotor: 2000mm; Stator: 2000 mm

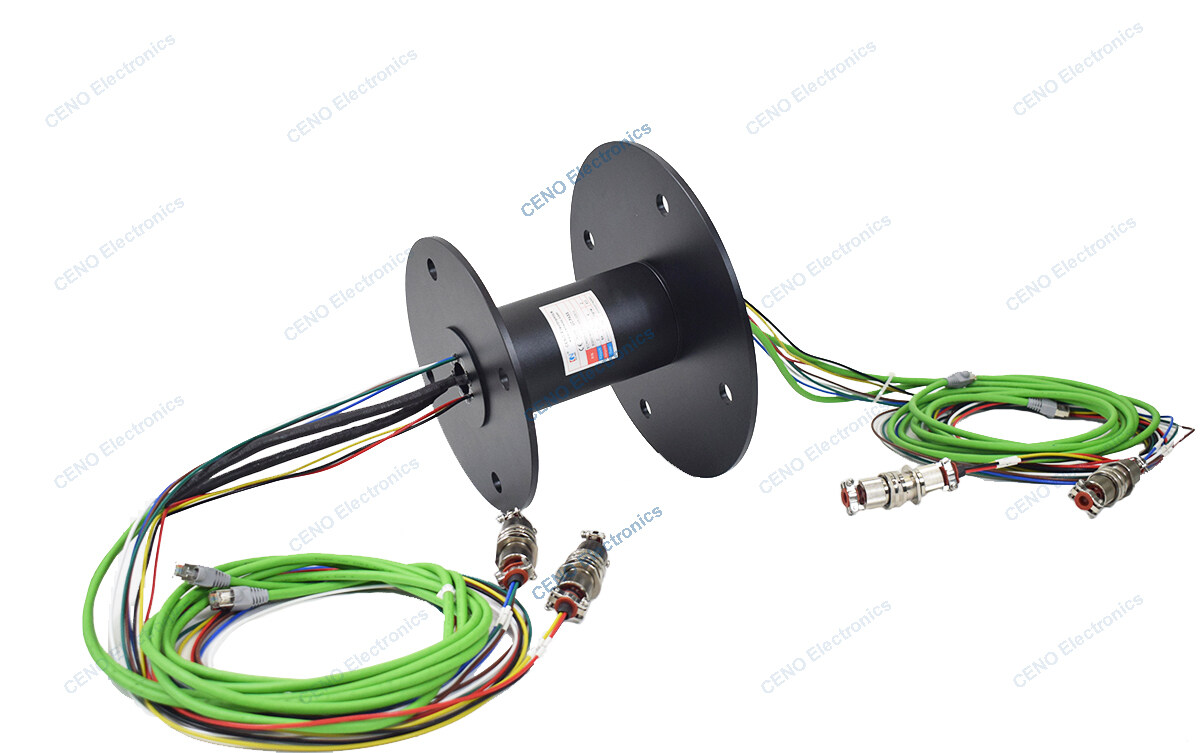

ECN025-03P2-04S-02EG is a Gigabit Ethernet slip ring compatible with through hole and integrated electrical collector for industrial application from CENO Electronics. There are 2 group for 1000M Ethernet signal, 3 circuits for 6A power and 4 circuits for signal with the JY3111F1404PNL connectors. Ethernet hybrid slip rings run Ethernet signal, data and power from stationary structures to rotating side by copper or precious metal channels, and most of the parameters are optional. If CENO’s standard slip rings aren’t fit what you’re looking for, please contact us, we design for your specific applications.
