Ethernet Slip Rings

• Circuits & Current: 5*5A; 5*Hall signal; 2*Reservation; 1*RS232; 1*1000M Ethernet
• Rating Voltage: 0~24VAC/VDC
• Dielectric strength: ≥300VAC@50Hz
• Isolation resistance: ≥100MΩ@300VDC
• Electrical Noise: Max 30mΩ
• Operating speed: 0~100rpm
• Contact material: Precious Metal
• Housing material: Aluminum alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60%
• IP protection grade: IP51
• Lead wire size: AW22# / 28# Wire Teflon® UL 2cores twist shield wire CAT5e
• Lead wire length: Rotor – 250±5 mm Stator – 250±5 mm
• External diameter: Ø35mm
• Installation way: Flange installation

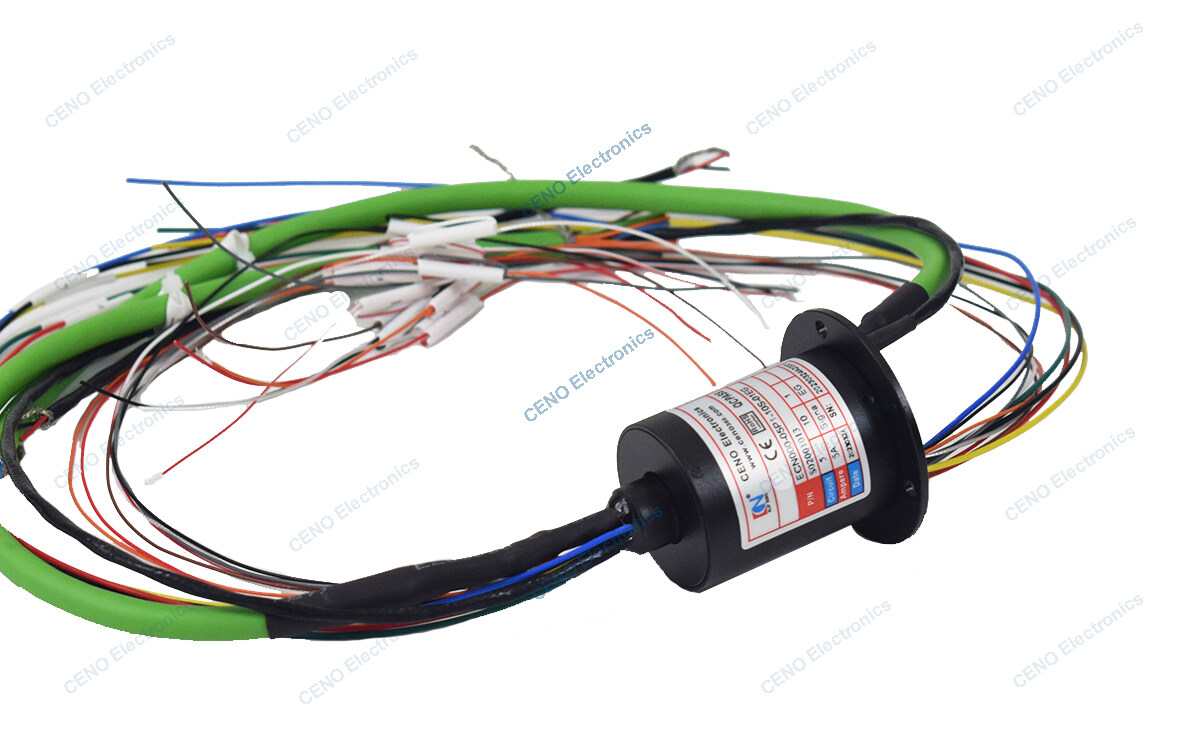

ECN000-05P1-10S-01EG is a new integrated slip ring which compatible with electrical power, Hall signal, RS232, 2circuits reservations and 1 circuits Gigabit Ethernet for Industry application from CENO Electronics. It’s also called Ethernet Signal slip ring, Electrical Rotary Joint, swivel, or industrial slip ring. CENO offers a wide range of slip ring to match your circuits, ratings, working speed, IP Grade and other design parameter specifications. These come in miniature slip ring to large marine slip ring. If our standard rotary joints are quite what you are looking for, please contact us, we’ve you covered.
