Ethernet Slip Rings

• Current & Circuits: 6*20A, 1*PE, 48*2A, 8*5A, 2*100M Ethernet, 1*1000M Ethernet
• Rating Voltage: 0~48 VAC/VDC
• Dielectric strength: ≥500VAC@50Hz≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Electrical noise: ≤30mΩ (50rpm)
• Operating speed: 0~300rpm
• Contact material: Precious metals / Gold to Gold
• Housing material: Aluminum alloy
• Working temperature: -40°C~+60°C
• Working humidity: 60%(20°C)
• IP protection grade: IP52
• Lead wire size: AWG12# 22# 24# Tin coated Teflon® UL4 core shield wire
• Lead wire length: Rotor : 300mmStator : 300mm
• Installation way: Stator side is driven horizontallyRotor side drove by the screw bolt

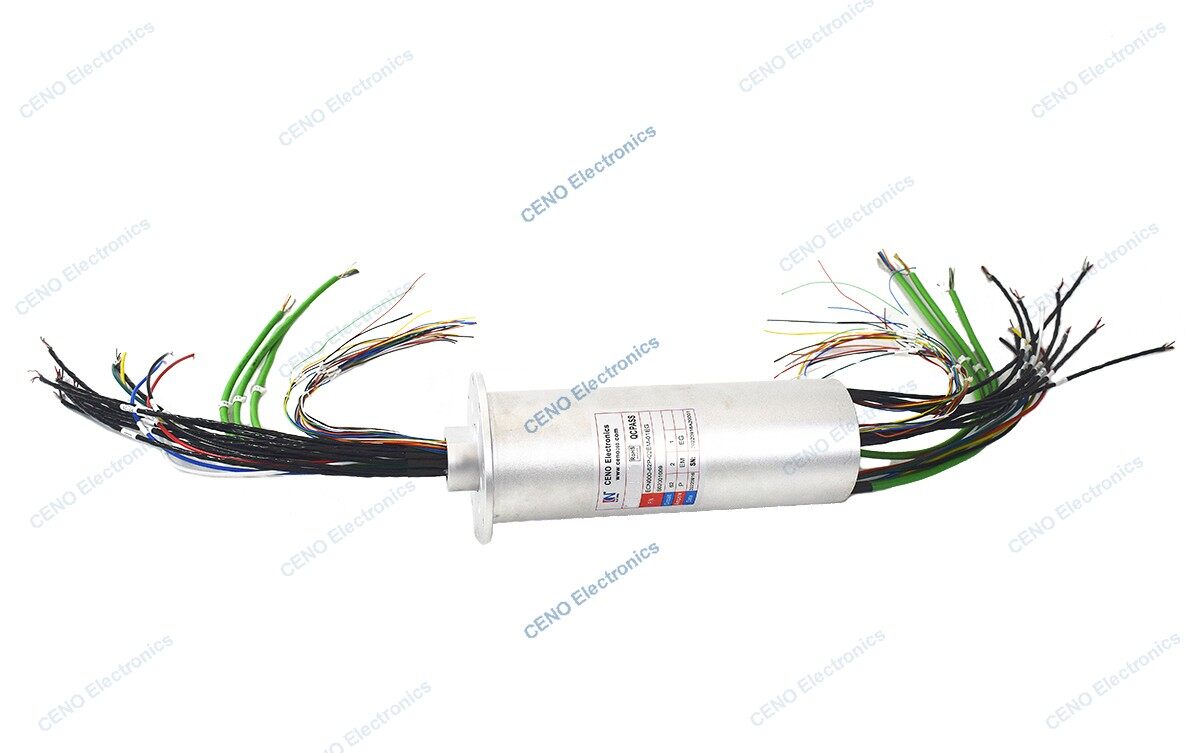

ECN000-62P-02EM-01EG is Gigabit Ethernet slip ring integrated electrical power and signals from CENO electronics. There are 6 circuits of 20A, 48 circuits of 2A, 8 circuits of 5A, 2 circuits of 100M Ethernet and 1 circuits of 1000M Ethernet. All of the signals ans currents are optional, It can mix multi signals and currents. Ethernet technology is the most commonly used network technology, stable transmission, no packet loss and no string code, mainly used on the Turntable test equipment, communication systems, wrapping machines, Electric heating equipment.
