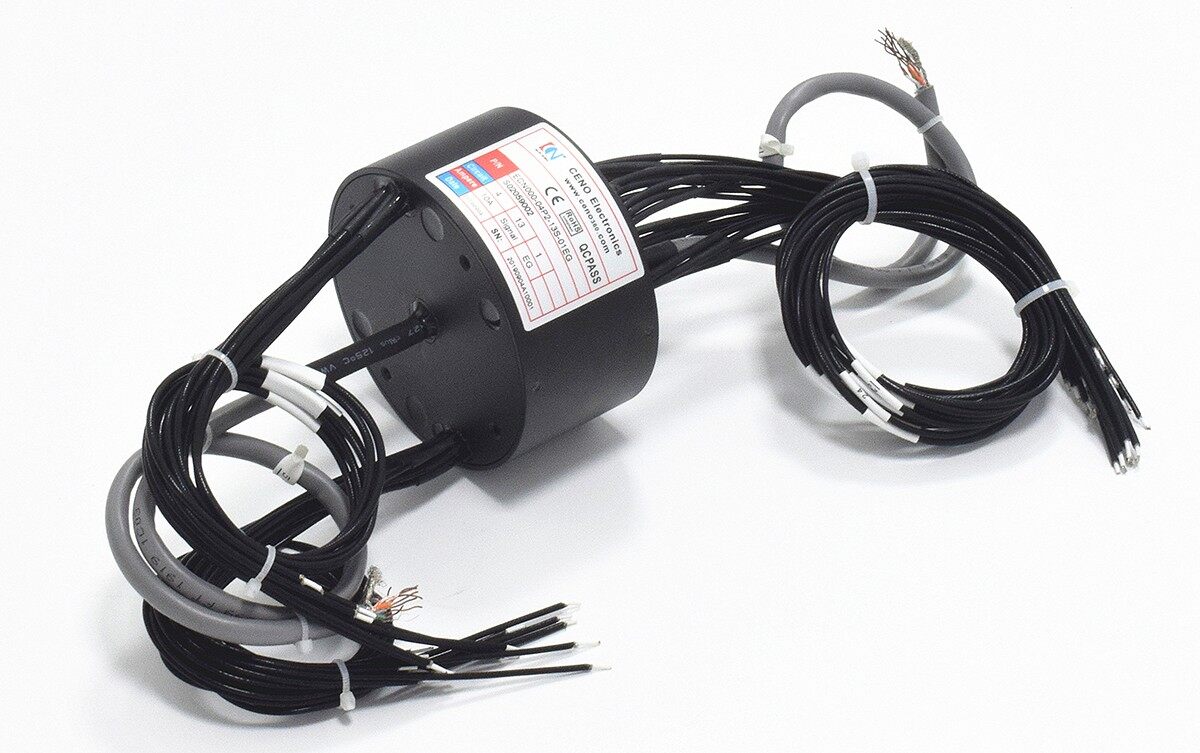

Ethernet Slip Rings

• Circuits & Current: 4*10A,13*2A(signal),1*1000M Ethernet
• Voltage: 0~50VDC
• Electrical noise: ≤30mΩ(50rpm)
• Dielectric strength: ≥300V@50Hz; ≥100V@50Hz
• Insulation resistance: 300MΩ@300VDC; 300MΩ@100VDC
• Operating speed: 0-100 rpm
• Contact material: Precious metals
• Operating temperature: -40~+65℃
• IP protection grade: IP54

The Ethernet slip ring is designed for LAN communication and is used for the cable slip ring of 250MHz frequency signal design. There is no essential difference between a 100 Mbps Ethernet slip ring and a Gigabit Ethernet slip ring, except that the supported Ethernet transmission rate is different. They can be combined with other signals or servo signal to form a strong or weak electrical slip ring.
