Ethernet Slip Rings

• Circuits & Current: 18*15A ; 8*signal; 2*100M Ethernet signal
• Rating voltage: 380VAC
• Insulation resistance: 500MΩ@500VDC(current) 100MΩ@100VDC(signal)
• Dielectric strength: ≥1000V@50hz(current) ≥500 V@50hz(signal)
• Electric noise: ≦70mΩ(with 50rpm running)
• Through hole size: 25.4mm
• Working temperature: 20°C~+60°C
• Operating speed: 0-300 rpm
• Contact material: Precious metals
• Operating temperature: -20~+60℃
• Housing material: Precious metal
• IP protection grade: IP54

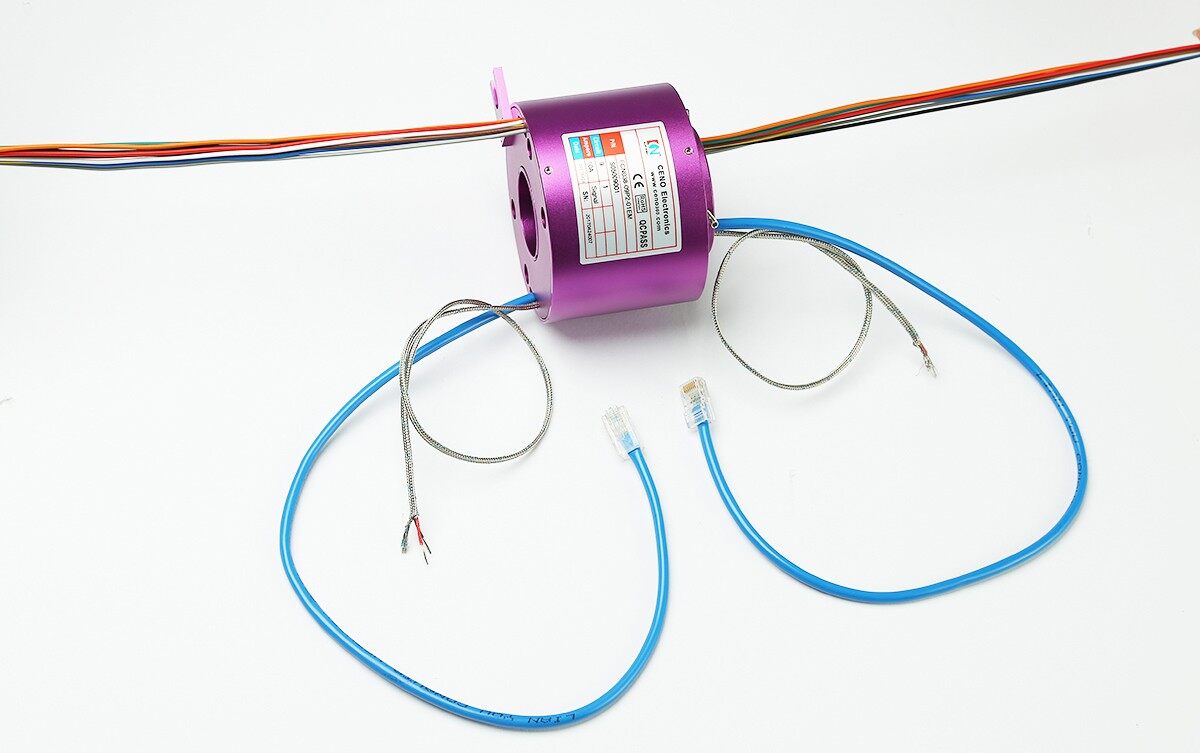

The model ECN025-1815-08S-02E2, it has 18 circuits number with 15Amp per circuit and 8 signal two group 100M Ethernet signal, It combines the characteristics of through hole slip ring and Ethernet signal, centre hole diameter is 25.4mm convenient to install, as well as integrate fiber optic, RF rotary joint.On both the stator and rotor for simplified electrical connections with RJ 45 connector for directly plug.
