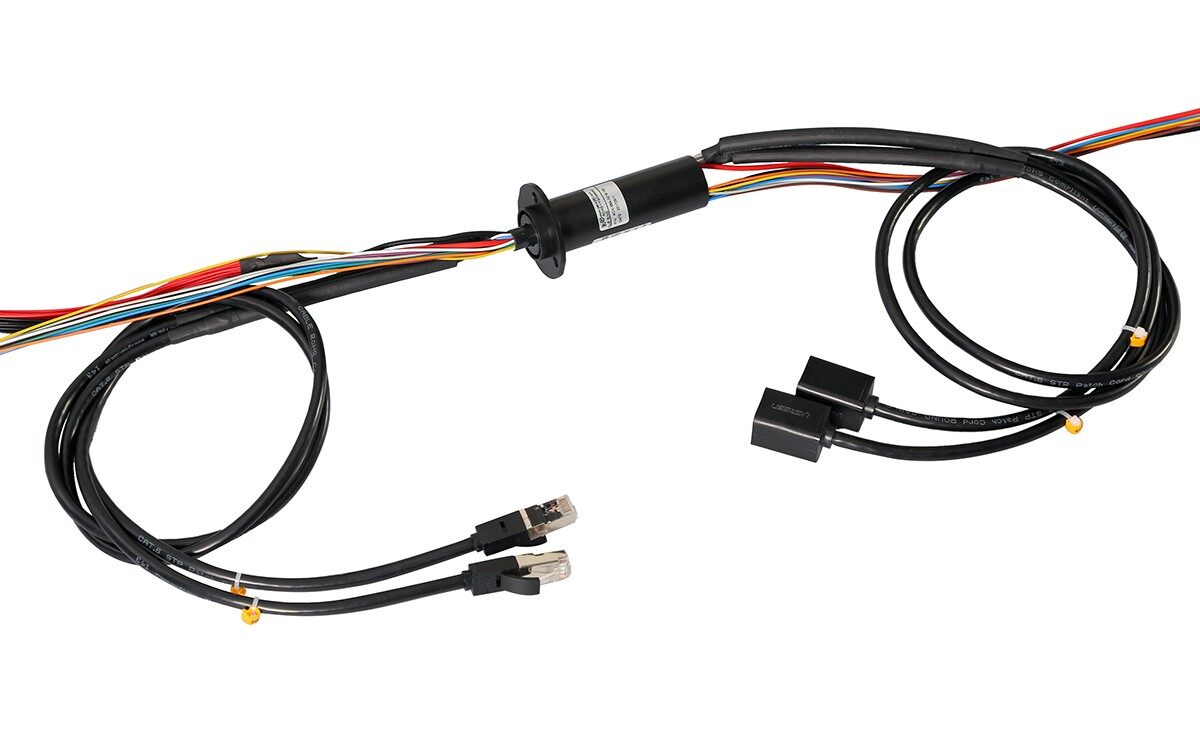

Ethernet Slip Rings Capsule

• Circuits&Current: 2*18A; 8*signal; 2*100M Ethernet signal
• Rating voltage: 240VAC
• Insulation resistance: 100MΩ@500VDC
• Dielectric strength: ≥500VAC@50Hz
• Electric noise: ≦35mΩ(with 50rpm running)
• Lead wire size: AWG12#/28# ;CAT5E
• Lead wire length: 805mm
• Working temperature: -45℃~+75℃
• Protection grade: IP54
• Working speed: 0~300rpm
• Contact material: Precious metal
• Housing material: Engineering plastic

Ethernet slip ring specially designed for high frequency to transmit 100M/1000M Ethernet signals, with advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss.
