Fiber Optic Rotary Joint

• Current & Circuits: 2*3A; 1*Fiber optic;
• Rating Voltage: 0~300 VAC/VDC;
• Dielectric strength: ≥1000VAC@50Hz;
• Isolation resistance: ≥300MQ@300VDC;
• Electrical noise: ≤70mΩ (60rpm);
• Lead wire size: AWG22#Tin coated Teflon UL
• Operating speed: 0~30rpm
• Contact material: Precious metals
• Housing material: Aluminum alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60%(20°C)
• IP protection grade: IP54

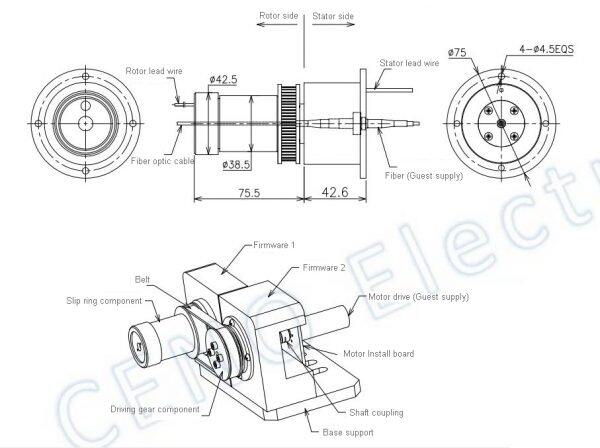

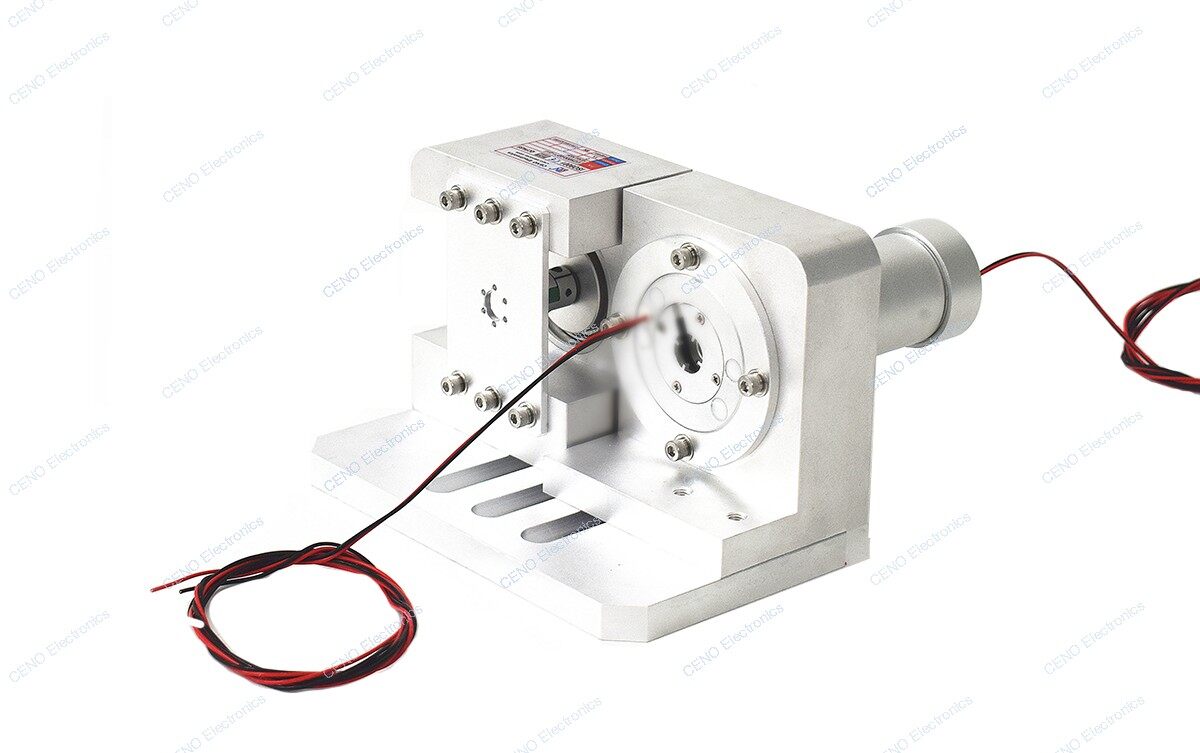

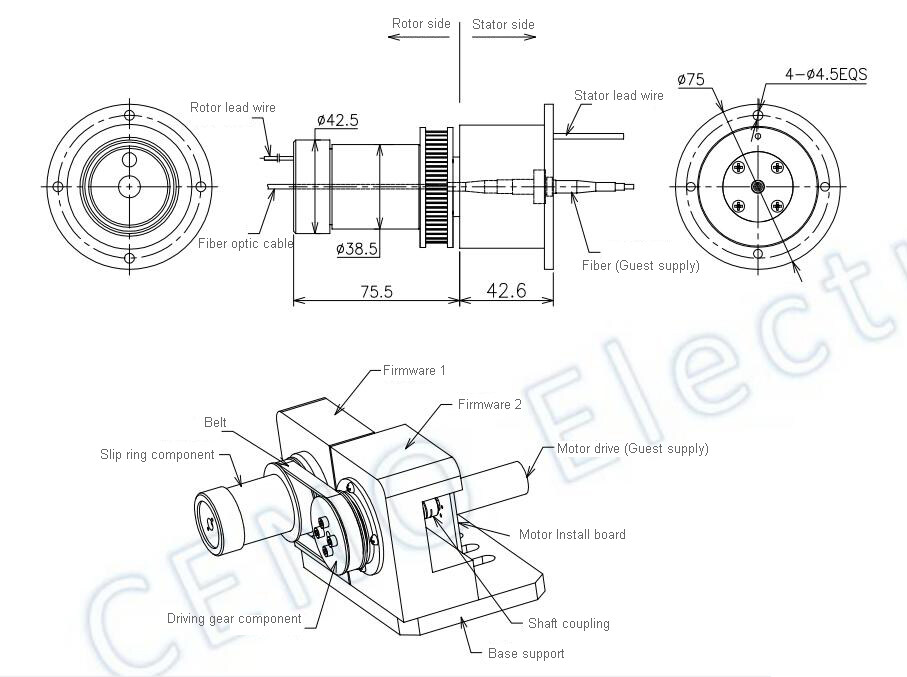

ECN000-02P1-01F is a fiber optic rotary joint also named FORJ from CENO electronics, the FORJ is fixed on the pedestal with screws in this slip ring assembly. There are 2 circuits for 3A Power and 1 channel fiber optic signal, the fiber optic signal is divided into single mode and multi mode and the channel number is optional from 1 to 50 channels. Working speed can reach 2000rpm as customers’ request. Non-contact technology is the advantage of this series of rotary joints, mainly apply to the wind power generator, security camera, medical equipment or Aerospace etc.
