FORJ Integrated Slip Ring

• Current & Circuits: 7*20A; 4*2A; 2*7A; 24*1A
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥200MΩ@500VDC
• Electrical Noise: 10mΩ (50rpm)
• Torque: ≤0.25N*m (-40°C)
• Contact material: Gold to Gold
• Housing material: Aluminum Alloy
• Working temperature: -40°C~+80°C; -55°C~+70°C
• Working humidity: 60 %RH
• IP protection grade: IP54
• Operating speed: 0~100rpm
• Lead wire length: AWG17# 22#26# Tin coated Teflon ® UL; Twisted wires or shielded wires
• Lead wire length: Rotor – 1500mm; Stator – 800mm
• External diameter: Ø62mm
• Installation: Rotor fixed by screws; Stator fixed by flanges

Fiber

• Fiber type: Single mode(9/125um)
• Wave length: 1310-1550nm
• Insert loss: <2.0dB
• Insert loss change: <0.5dB
• Return loss: >45dB
• Optical power: 23dB
• Cable length: Stator – 800±10mm; Rotor – 1500±10mm
• Connector: LC/LCFORJ
• External Dimension: 3mm
• Housing material: Stainless steel

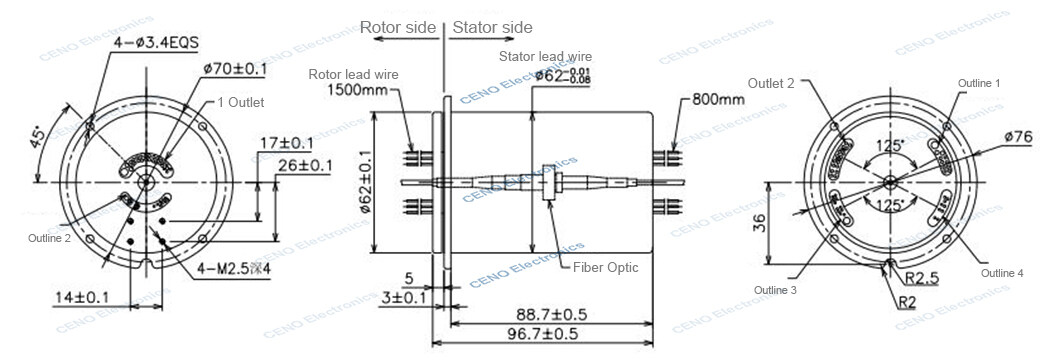

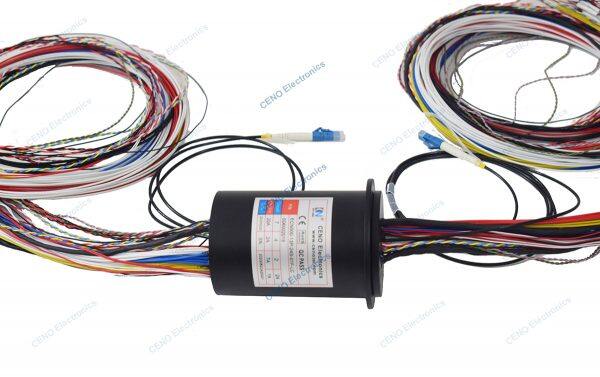

ECN000-13P-24S-01F-LC is an integrated slip ring which combine electrical power, data signals and 1 channel Fiber Optic Rotary Joint. And it can be working stably at the low temperature environment with -55°C to +80°C. Fiber Optic Rotary Joints are to optical signals like what electrical slip rings are to electrical signals, a means to pass signals across rotating interface, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. More information about how CENO integrated slip ring can fit your specific usage please contact us.
