HDMI High Definition Slip Ring

• Current & Circuits: 2*4A; 2*3A; 2*Control Signal; 2*sine Signal; 8*R422 Signal; 1*GND; 2Group *(HD-SDI)
• Rating Voltage: 0~24 VAC/VDC
• Dielectric strength: ≥110VAC@50Hz
• Isolation resistance: ≥300MΩ@110VDC
• Dynamic resistance: ≤10mΩ
• Operating speed: 0~60rpm
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature:-40°C~+80°C
• IP protection grade: IP51
• Lead wire length: Rotor: 250 ±10mm; Stator: 140±5 mm

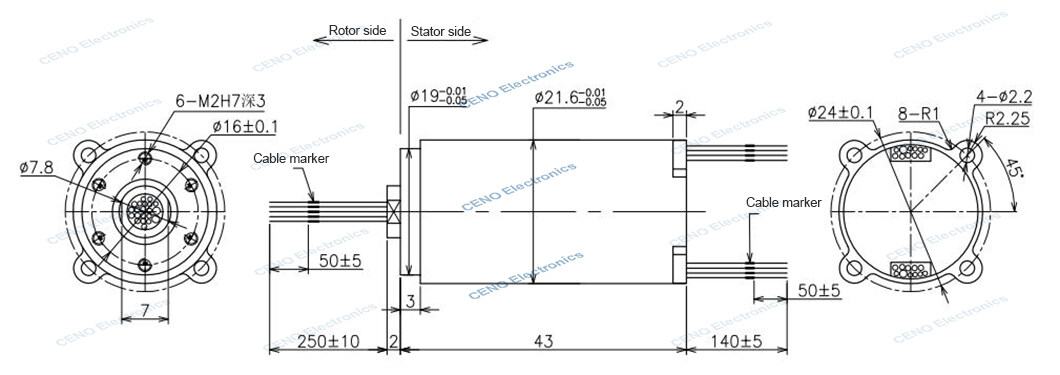

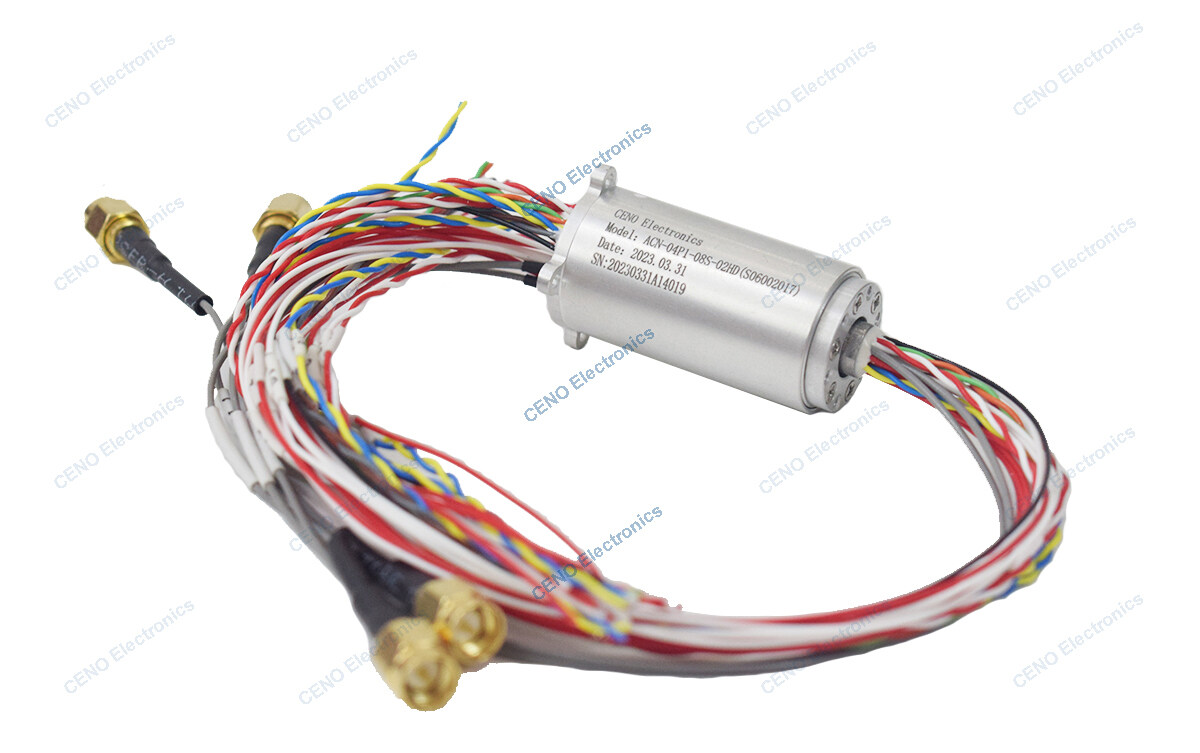

ACN-04P1-08S-02HD is HDMI High Definition slip ring with capsule structure for High definition video surveillance application from CENO Electronics, that is combined 4 circuits for electric power, 12 circuits for 12 signal and 2 group for HD-SDI. It’s compact design to fin in the most demanding space, provide 360° continuous rotation with high speed and running smoothly with low electrical noise, and can integrate a variety of signals as specific environment. For more information about how CENO’s slip ring can fit you specific application, please contact us.
