HDMI High Definition Slip Ring

• Current & Circuits: 30*2A; 4*5A; 1*SDI; 1*Gigabit Ethernet
• Rating Voltage: 0~110 VAC/VDC
• Dielectric strength: ≥200VAC@50Hz ≥100VAC@50Hz
• Isolation resistance: ≥50MΩ@200VDC ≥10MΩ@100VDC
• Dynamic resistance: ≤35mΩOperating speed0~200rpm
• Contact material: Gold to gold
• Housing material: Engineering plastics
• Working temperature:-20°C~+60°C
• IP protection grade: IP40
• Working Humidity: 60%
• Lead Wire Size: AWG28# 22# Wire Teflon® UL CAT5e, RG178
• Lead wire length: Rotor: 1000/650 ±5mm; Stator: 1000/650 ±5mm

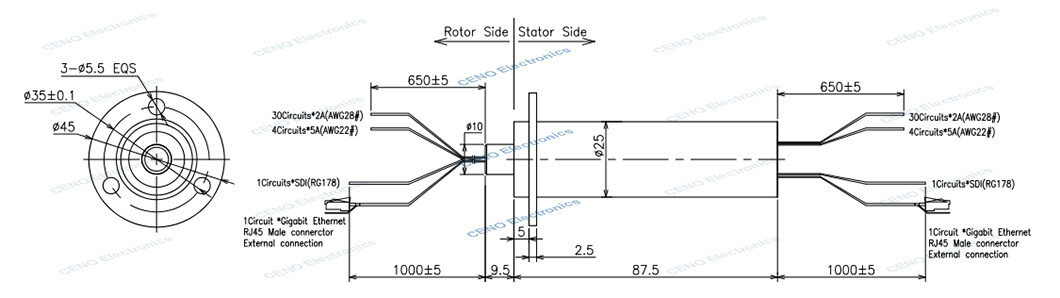

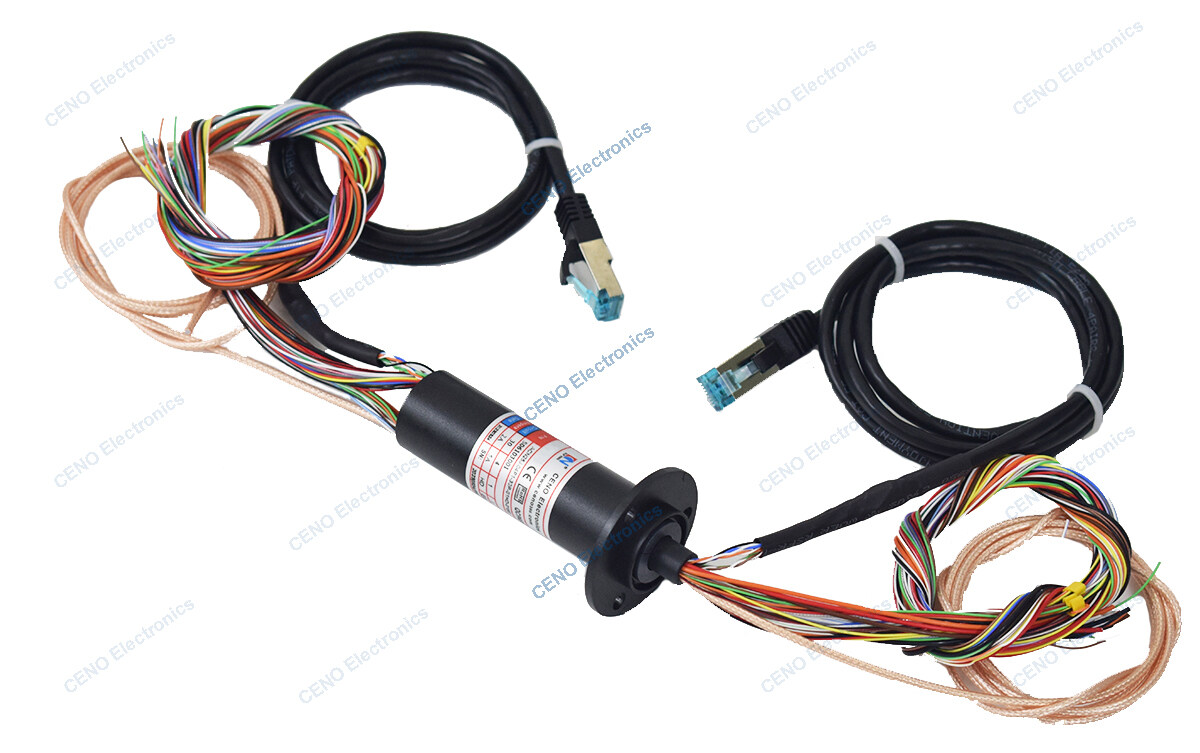

ACN25J-04P1-30P-01HD-01EG is a capsule slip ring which combined 35 circuits for electric power, 1 circuit for SDI and 1 circuit for 1000M Gigabit Ethernet signal from CENO Electronics. And most of the parameters are optional, such as 1 to 200 circuits, Protect grade IP40 to IP68 and temperature -55 to 250°C can be designed as different working environment. The capsule slip ring has compact structure and especial suit for the small rotation system and often transmit weakness control signals. Mainly apply to the Traffic system, Video monitoring system, Drones and Process control system. If this slip ring isn’t quite what you’re looking for, we’ve got you covered.
