HDMI High Definition Slip Rings

• Current & Circuits: 1*HDMI; 1*PLA Analog Video Signal; 1*RS422; 1group*100M Ethernet; 2*Sine Signal; 13*2A; 2*1A.
• Rating Voltage: 0~48VAC/VDC
• Dielectric strength: ≥500VAC@50Hz (P) ≥100VAC@50Hz (S)
• Isolation resistance: ≥1000MΩ@500VDC(P) ≥10MΩ@00VDC(S)
• Contact resistance: 35mΩ (50rpm)
• Contact material: Gold to GoldHousing materialAluminum Alloy
• Working temperature: -40°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP40
• Operating speed: 0~300rpm
• External diameter: Ø22mm
• Lead wire length: Rotor : 300±5mm; Stator : 400/1000±5mm

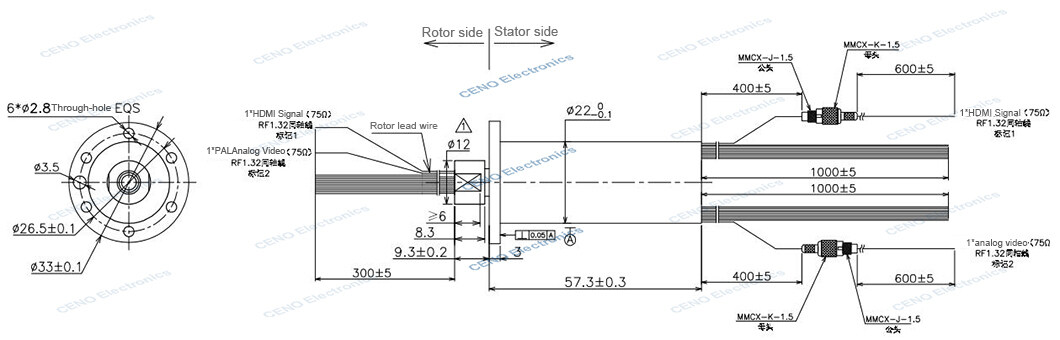

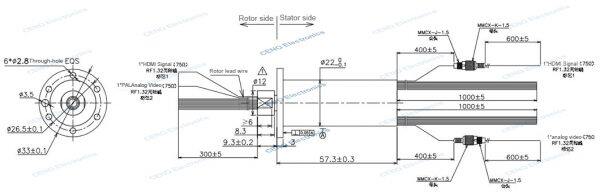

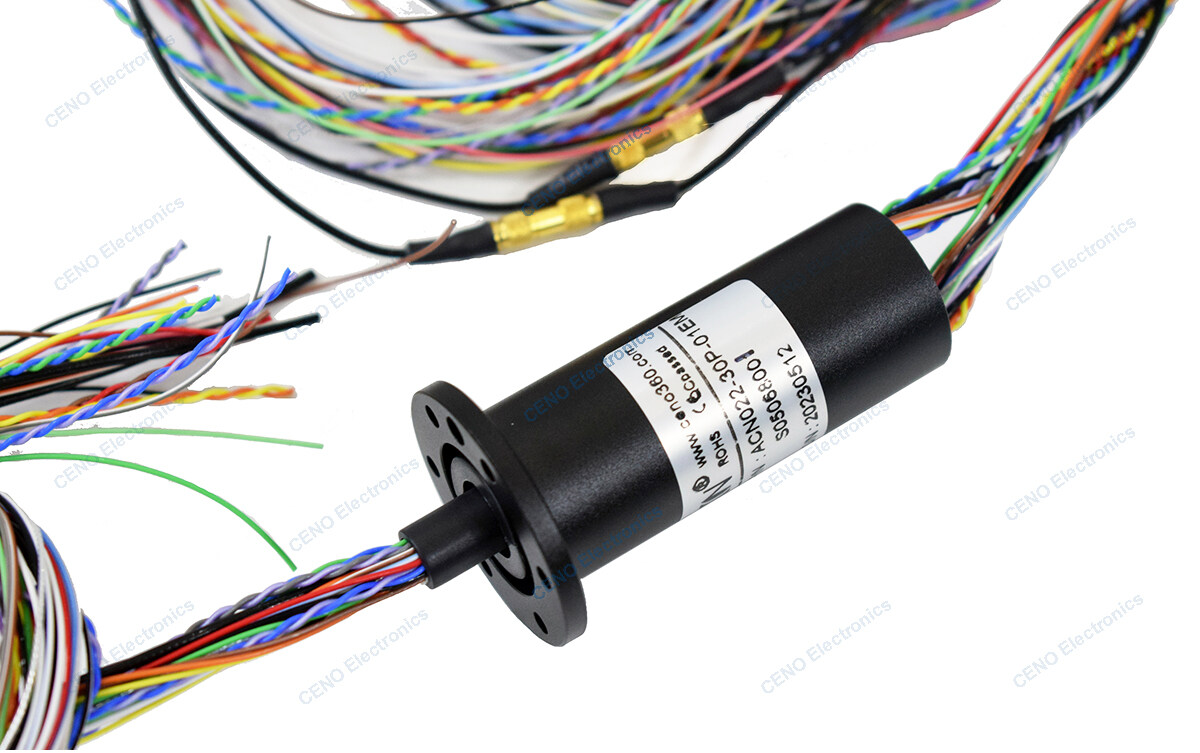

ACN022-30P-01EM is CENO’s new design capsule slip ring with 1circuit HDMI, 1circuit Ethernet,1group RS422 and others electrical signals. The capsule HDMI slip ring is designed and applied to the low temperature environment from -40°C~+60°C. It’s support video standards up to 2K@90Hz and no flash screen no frame loss phenomenon. Often applied to the VR application, Infrared photography, photoelectric pod or Radar communication. For more information about how CENO’s slip ring can fit your specific applications, please contact us.
