HDMI Slip Ring

• Current & Circuits: 1*HD Signal; 1*Fiber(guest supply ); 1*shielded wire
• Rating Voltage: 240VAC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥100MΩ@100VDC
• Contact resistance: ≤50mΩ (50rpm)
• Contact material: Precious metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP54
• Operating speed: 0~600rpm
• Lead wire size: AWG22# Black Wire RG178 Coaxial Wire
• Lead wire length: Rotor: 100mm + SMA connector; Stator : 250mm+BNC connector Shielded wire : 300mm

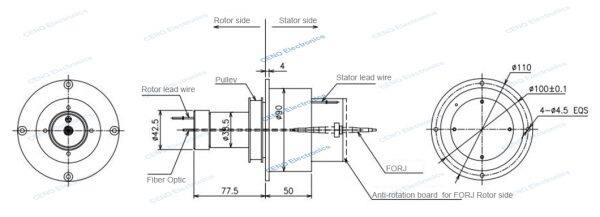

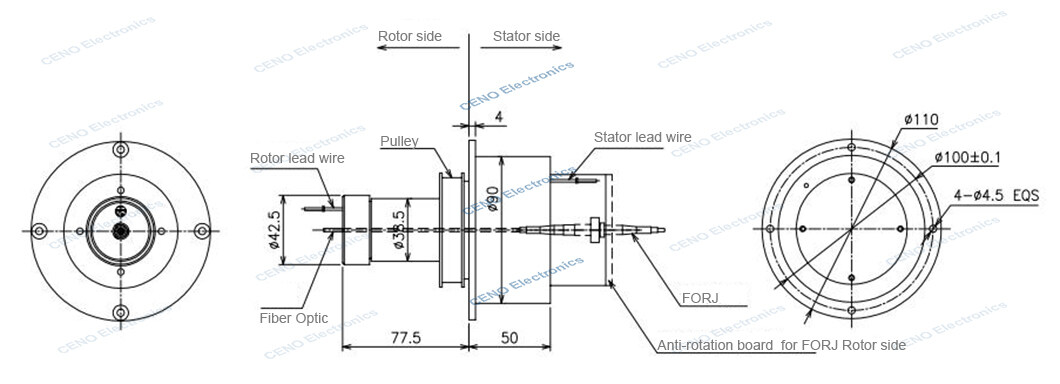

• External diameter: Ø90mm
• Installation: Rotor side fixed on guest main shaft

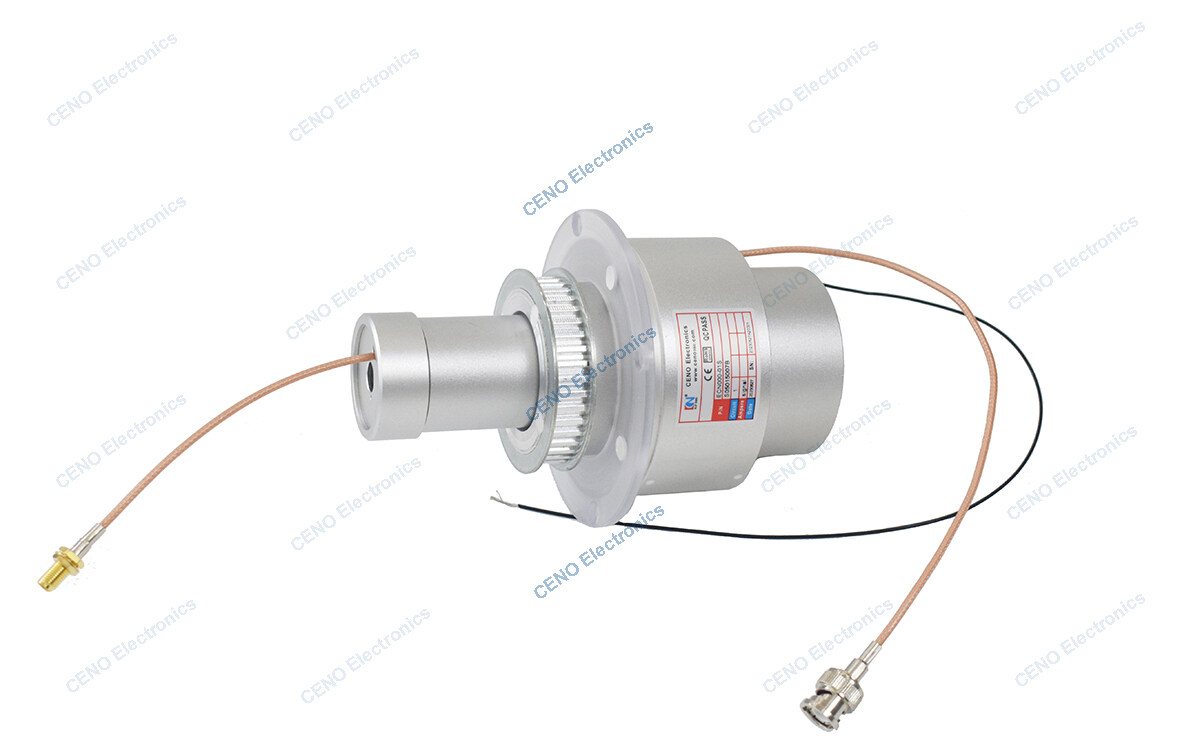

ECN000-01S-600 is one of the CENO HDMI slip ring series which can working stably at the speed of 600rpm, it’s often assembled on pedestal and used as a set. We have developed to provide reliable and similar products to allow transfer of the HDMI and Fiber Optic signal through a rotating interface. A wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to fit your application needs. Please contact for more information.
