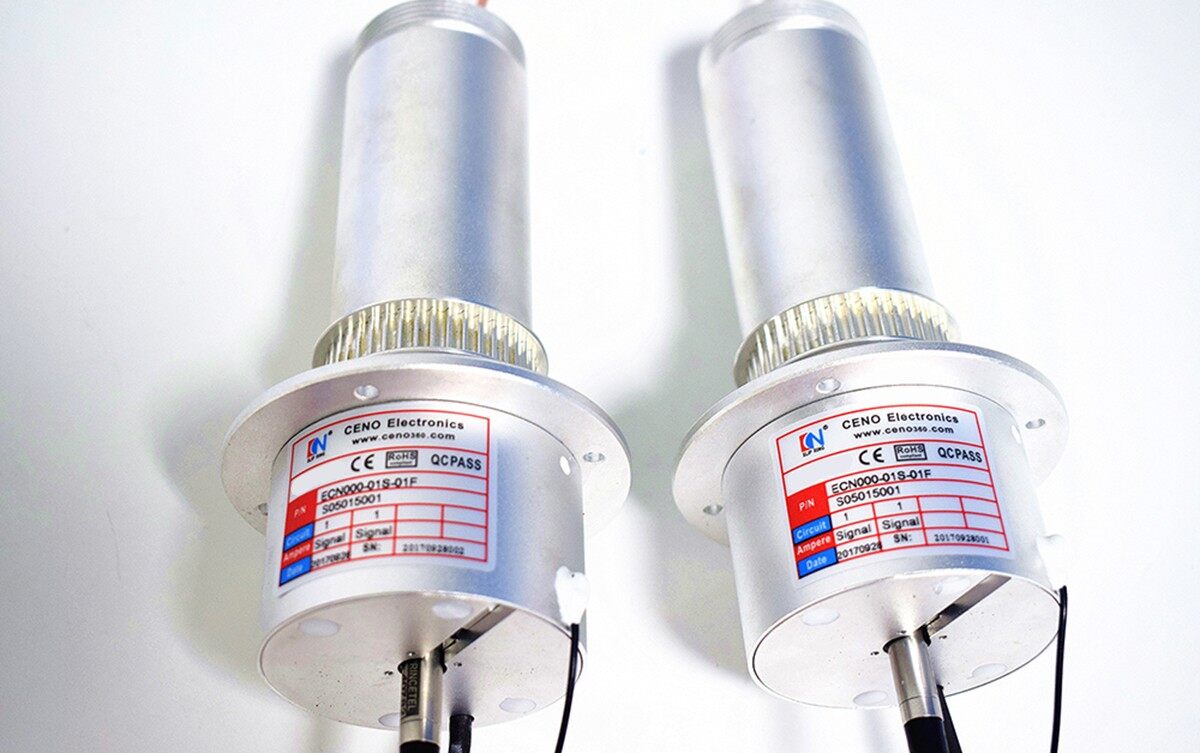

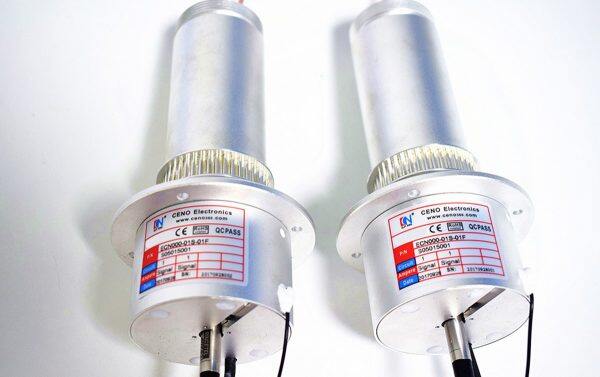

High Speed Slip Ring

• Circuit & Current: 1* RF signal, 1*Fiber
• Fiber type: MM
• Connector type: FC – APC/FC
• Wave length: 650~1650nm
• Insertion loss,max: 1.5dB
• Return Loss,min: 25dB
• Peak power,max: 23dB
• Working temperature: -20~+60℃
• Working speed: 0~6000rpm
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Protection grade: IP51

High speed slip ring’s rotating speed at lease is 1000RPM. It mainly be used in high speed train, nondestructive testing equipment, eddy current testing equipment and so on. CENO adopts the advanced and special technology in the structure between the stator and rotor for ensuring the slip ring performance stably during rotating under high speed.
