High Speed Slip Rings

• Current & Circuits: 92circuit* signals/
• Dielectric strength: ≥100VAC@50Hz. AC. 60s No breakdown/
• Isolation resistance: ≥10MQ@100VDC/
• Electrical noise: ≤10MΩ (Non including lead wire)/
• Lead wire length: /Rotor : 300mm±10mm; Stator : 300mm±10mm/
• Operating speed: 0~960rpm/
• Contact material: Precious metal/
• Housing material: Aluminum alloy
• Working temperature: -20°C~+60°C/
• Working humidity: 5%~85%/
• IP protection grade: IP51/
• Driving torque: ≤0.2N.M

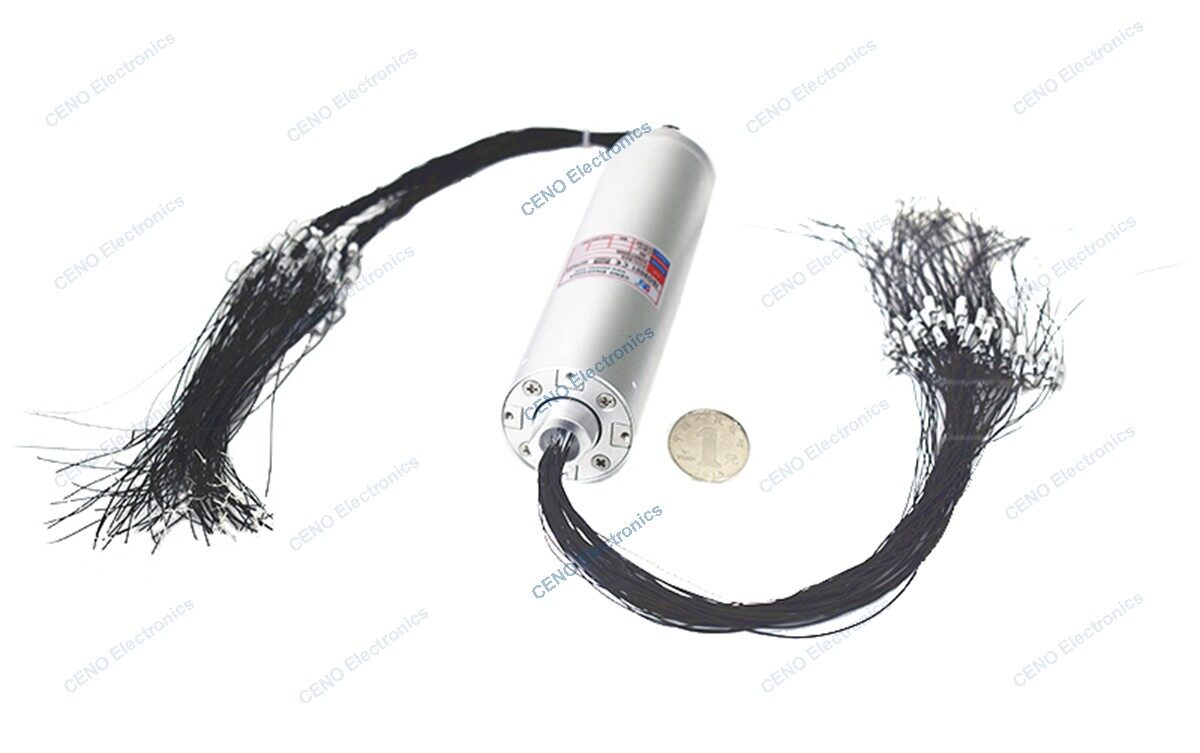

ACN-92S is a multi-channels high speed slip ring with low electrical noise from CENO Electrical, there are 92 circuits for signal, the working speed is 960rpm and can be up to 2000rpm as different application, the driving toque is less than 0.2N.M. This kind of CENO’s multi-channel slip ring could reach more than 500 channels, and it could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency. Due to it’s light weight, compact structure and stable signal, often use on medical equipment.
