High Speed Thermocouple Slip Rings

• Current & Circuits: 2 group* T-type thermocouple
• Rating Voltage: 0~24VAC/VDC
• Dielectric strength: ≥100VAC@50Hz
• Isolation resistance: ≥50MΩ@100VDC
• Electrical Noise: 30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP51
• Operating speed: 0~10000rpm

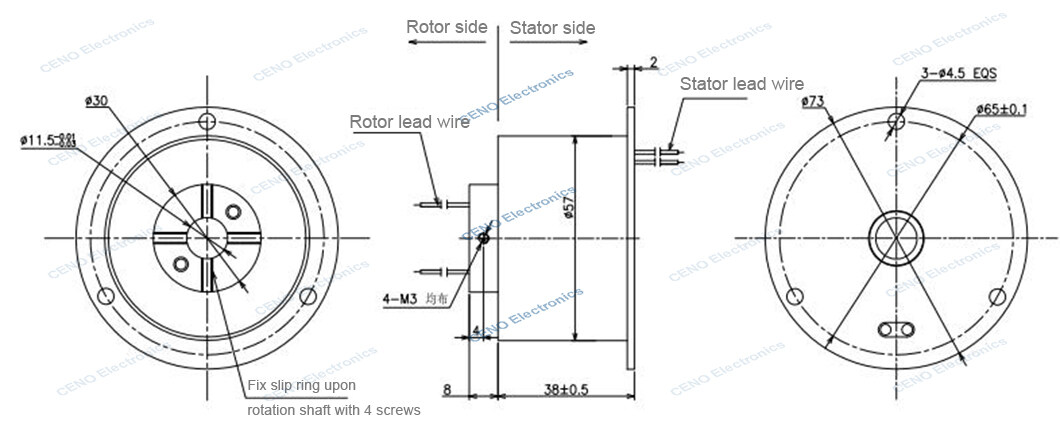

• Lead wire length: Rotor: 1000mm; Stator : 3000mm
• Inner Diameter: Ø11.5mm
• External diameter: Ø57mm
• Installation: Rotor side fixed on the guest main shaft with screws

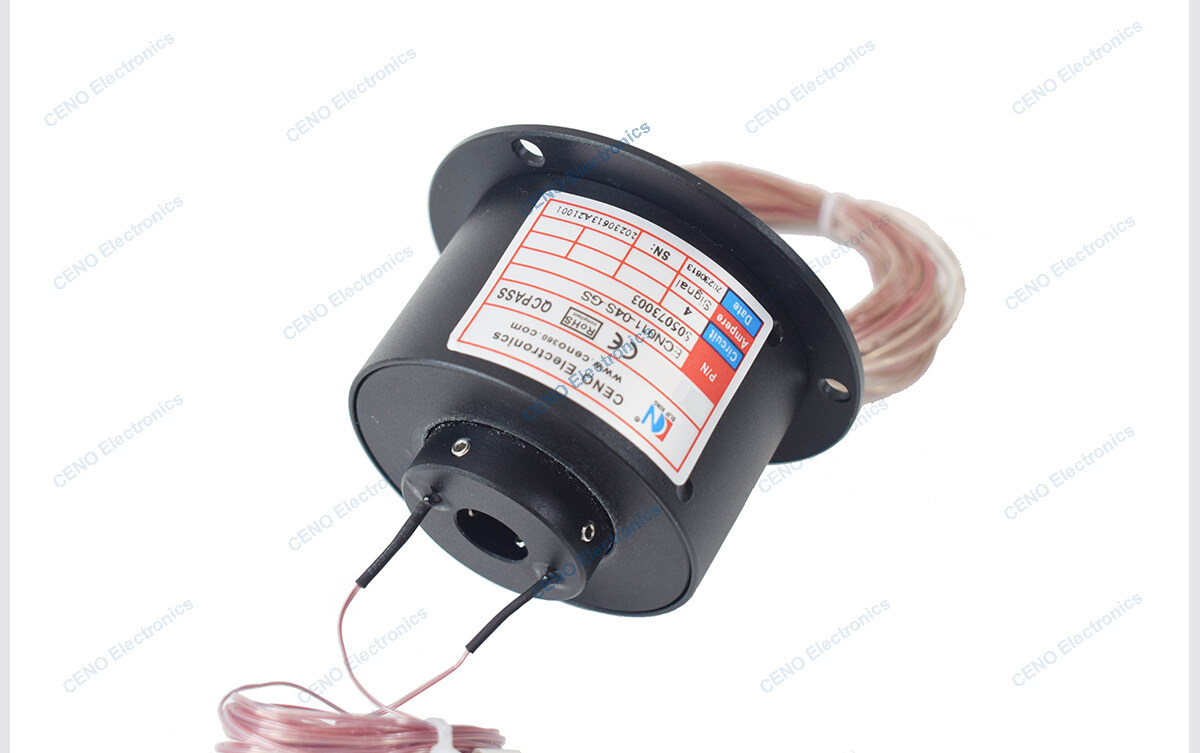

ECN011-04S-GS is CENO’s new design T-type thermocouple hollow shaft slip ring with high speed up to 10000rpm for high speed detection equipment. It features the low torque, low consumption, high stable performance and long service life. For it’s compact structure, small and light weight always applied to the automatic machine, test facilities and instruments, high-speed train detect equipment. For more information about how CENO’s slip ring can fit your specific operation environments, please contact us any time.
