Industry Slip Ring

• Current & Circuits: 32 circuits 10A
• Rating Voltage: 0-380VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Contact resistance: ≤30mΩ (50rpm)
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP51
• Operating speed: 0 ~ 300rpm
• Inner diameter: Ø38.1mm
• Housing material: Aluminum Alloy
• Contact material: Precious metal
• Lead wire size & length: As customized
• Rotation Way: Rotor side fixed on shaft with screws

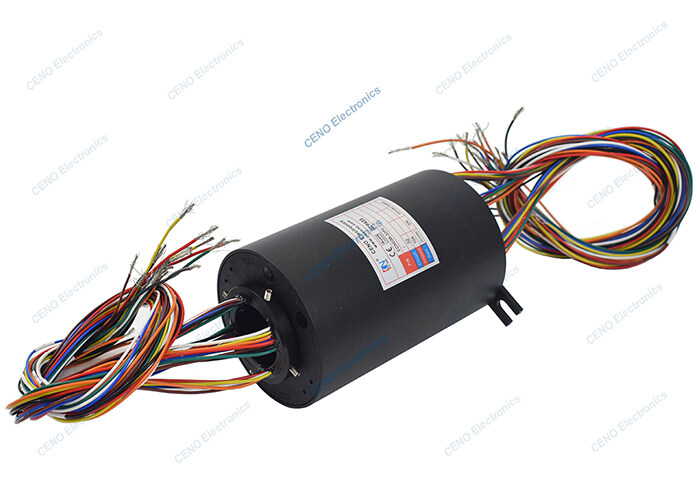

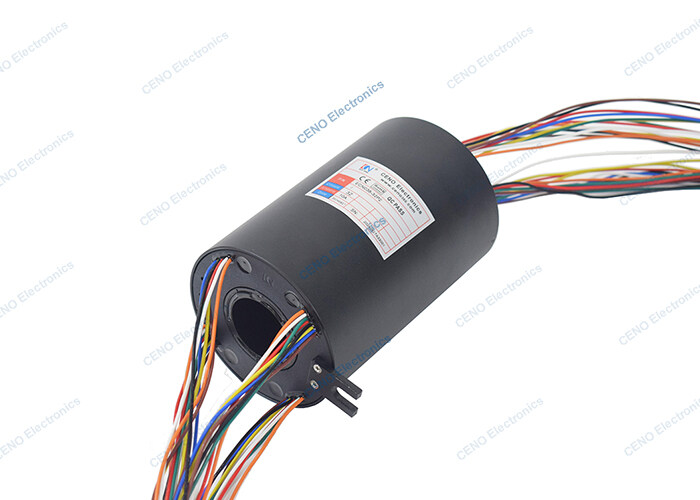

ECN038-32P2 is CENO industry slip ring with inner bore ID38mm designed to transmit electrical power at high speeds, and works stable in the adverse operating conditions. CENO have kinds of series slip rings, and is a premier technology company with unique design and manufacturing capability. When you recognized that a accuracy and performance solution is really mater, trust us to solve your difficult problems. For more information please contact us.
