Industry Slip Ring

Circuits & Current: 17 circuits electric power and signal
Rating Voltage: 0~24VAC/VDC
Dielectric strength: ≥500VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC
Electrical Noise: Max 30mΩ (50rpm)
Working temperature: -20°C~+60°C
Working humidity: 60%RH
IP protection grade: IP54
Working Speed: 0~300 rpm
Outer Diameter: Ø86mm
Contact Material: Precious Metal
Housing Material: Aluminum alloy
Lead wire size: As customized
Lead wire length: As customized
Installation: Anti-rotation tab installation

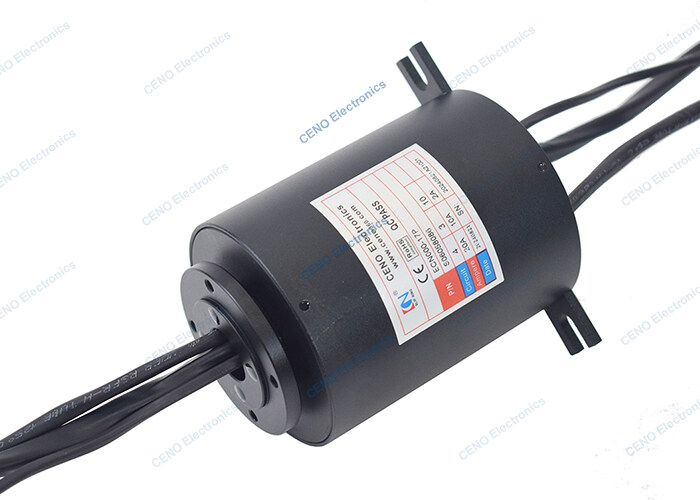

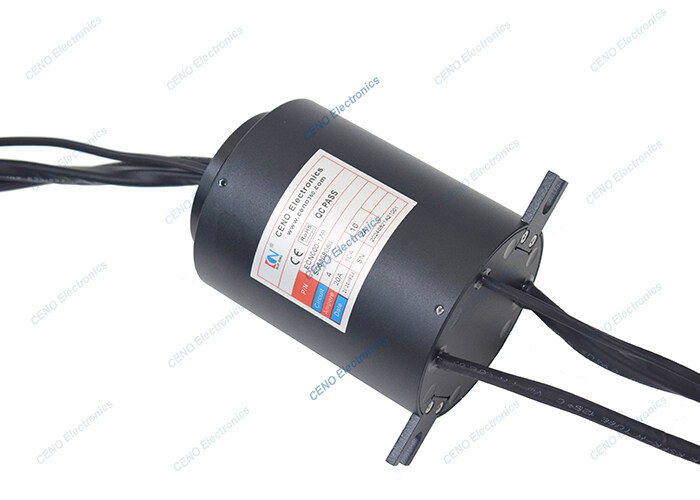

ECN000-17P is CENO new industry slip ring with 17 circuits electric power and signals. The main function of industrial slip ring is to provide continuous and rotating electric power and signal stably for a rotating mechanical equipment. Industry slip ring can be used in different special applications including automotive testing bench, industrial robot, Medical equipment and Aerospace. CENO industry slip rings are more and more popular used in kinds of modern high technology product. More information please contact us
