Industry Slip Ring

Circuits & Current: 12 circuits Electrical power and Encoder signal
Rating Voltage: 0~400VAC/VDC
Dielectric strength: ≥500VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC
Electrical Noise: Max 30mΩ (50rpm)
Working temperature: -20°C~+60°C
Working humidity: 60%RH
IP protection grade: IP65
Working Speed: 0~300 rpm
Outer Diameter: Ø86mm
Contact Material: Precious Metal; Gold to Gold
Housing Material: Aluminum alloy
Lead wire size: As Customized
Lead wire length :As Customized
Installation: Anti-rotation tab installation

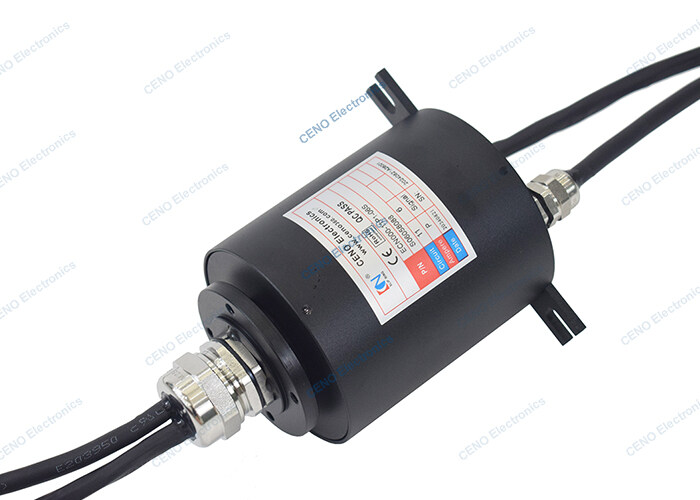

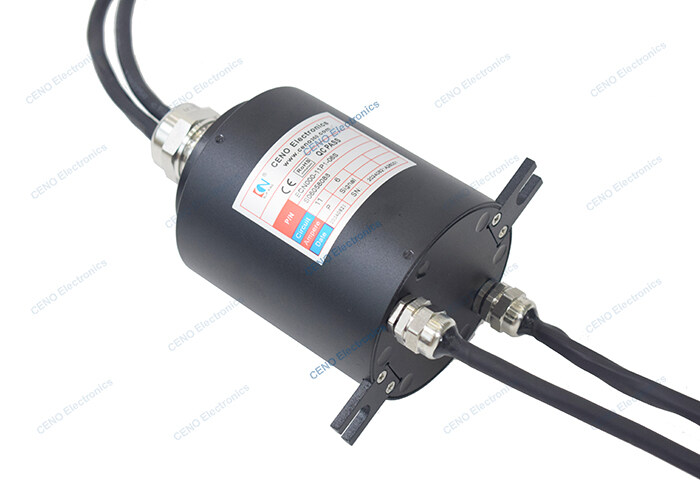

ECN000-11P1-06S is CENO new integrate slip ring with electric power and Encoder signal designed for industry system. The main characteristics of industrial slip rings are high reliability, multi-functionality, and environmental adaptability. These characteristics enable industrial slip rings to operate stably in various harsh working environments, ensuring the transmission of electricity and data. CENO have kinds of function slip ring. For more information please contact us.
