Industry Slip Ring

Circuits & Current: 8 circuits * 25A (240V); 9 circuits * 10A (230V)
Rating Voltage: 0~240VAC/VDC
Dielectric strength: ≥1000VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC
Electrical Noise: Max 30mΩ (50rpm)
Working temperature: -20°C~+60°C
Working humidity: 60%RH
IP protection grade: IP65
Working Speed: 0~300 rpm
Outer Diameter: Ø120mm
Contact Material: Precious Metal
Housing Material: Aluminum alloy
Lead wire size: 4G /10G Shielded wires;
Lead wire length: Rotor side: 1000mm; Stator side:1000mm
Installation: Anti-rotation tab installation

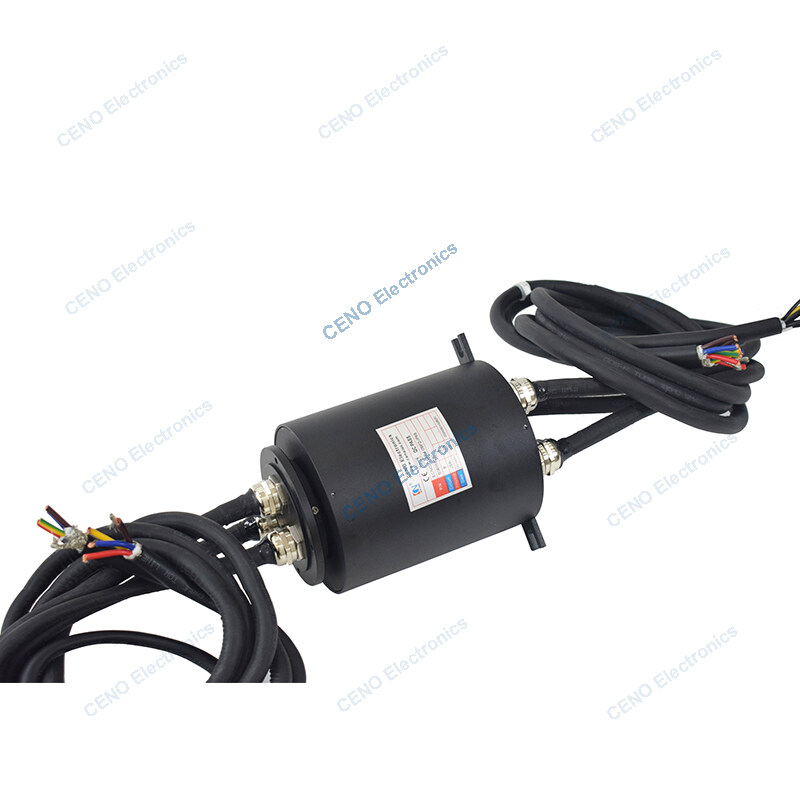

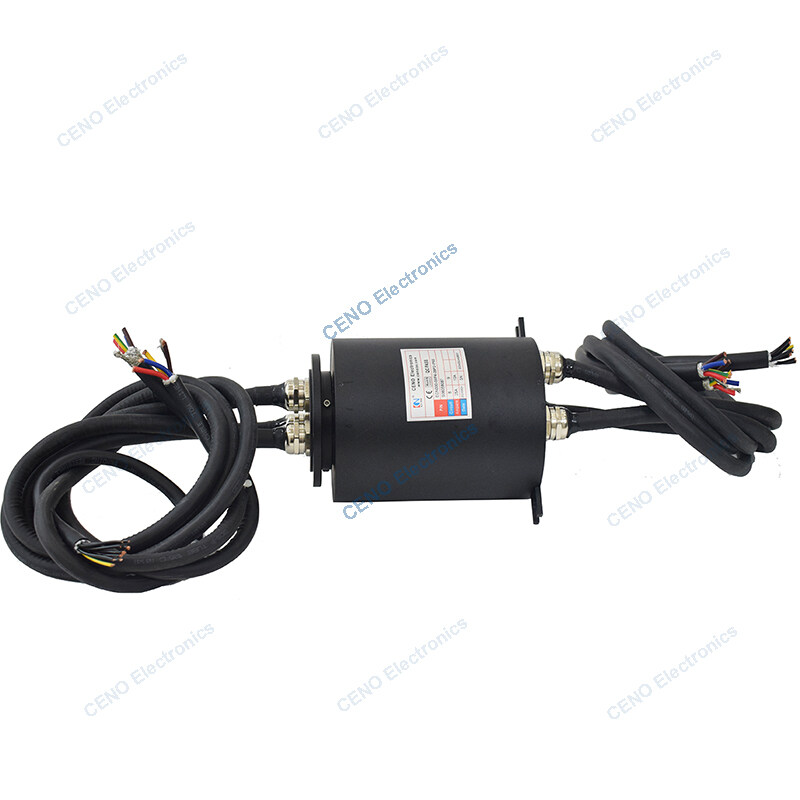

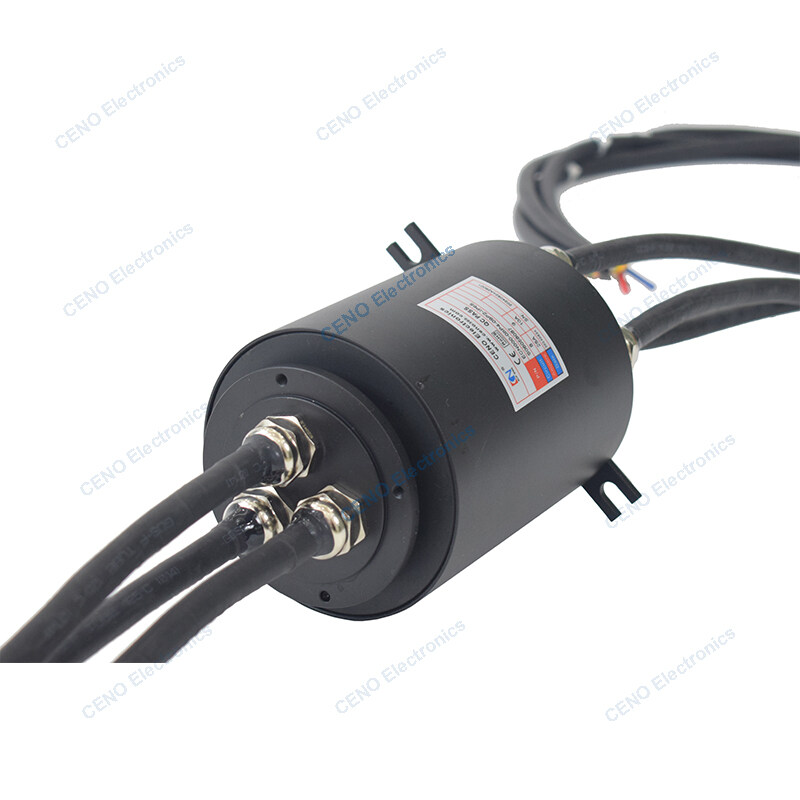

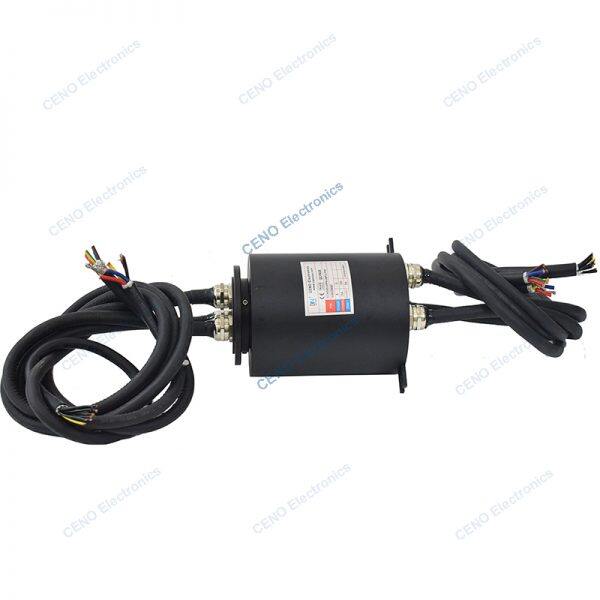

ECN000-08P4-09P2-IP65 is CENO industry slip ring with 17 circuits electrical power signal for modern automatic system. Manufacturing industries demand high performance applications able to deliver greater productivity, excellent parts quality and lower operating costs in an energy saving and emission reduction world. CENO is an independent research and development company with unique design and manufacturing capabilities. Trust us to solve your difficult problems for your special applications.
