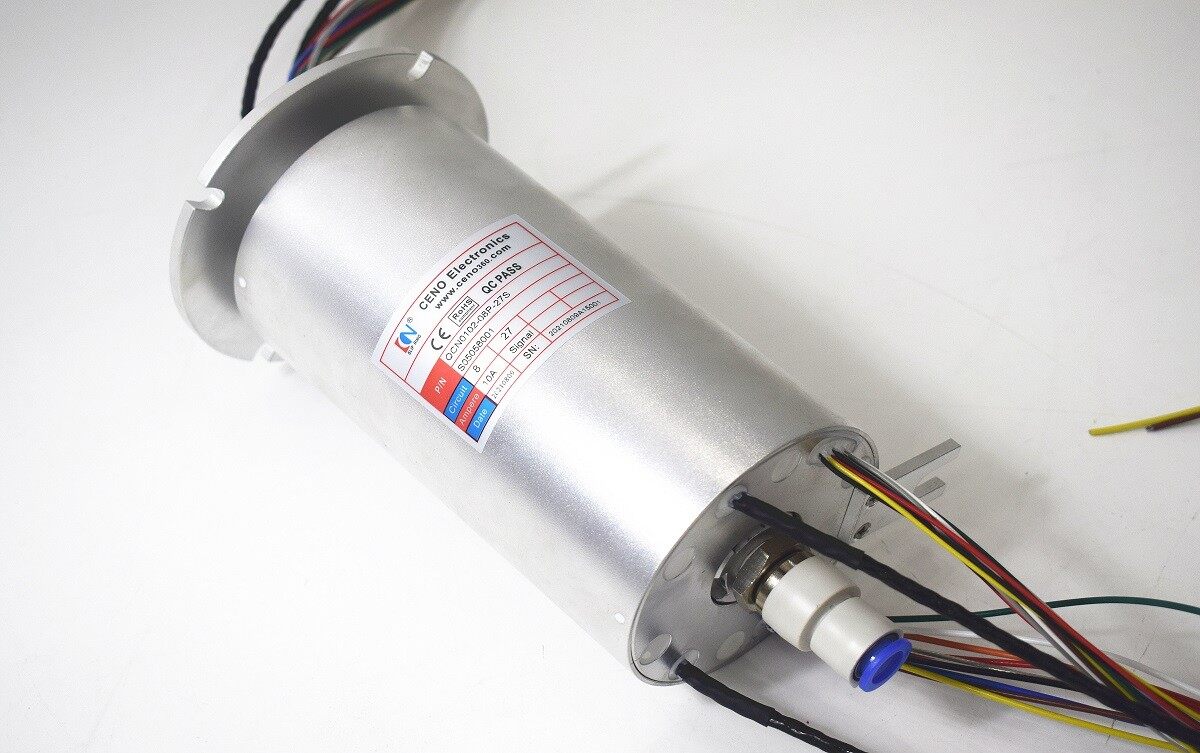

Integrate Encoder Pneumatic Rotary Union

• Circuits & Current: 8*10A, 1*PE, 15*signal, 2*Encoder
• Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1000V@50Hz; ≥300V@50Hz
• Insulation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Operating speed: 0-100 rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP51

• Air channel: 1 channel air (10mm hole)
• Pressure: ≤ 1.0MPa

Encoders are devices which compile and convert signals or data that could be used for communication, transmission and storage. According to working principles, encoders can be divided into incremental encoder and absolute encoder. It always use in measure angle and rotaitng speed in practice application. QCN0102-08P-27S with 8 rings 10A,15 rings signal and 2 groups of Encoder signal, it’s also integrtaed 1 channel for air transmission, air pressure is ≤ 1.0Mpa, working speed 0-100rpm. CENO QCN series widely used for food industry, injection molding equipment, plastics industry and filling applications etc,.
