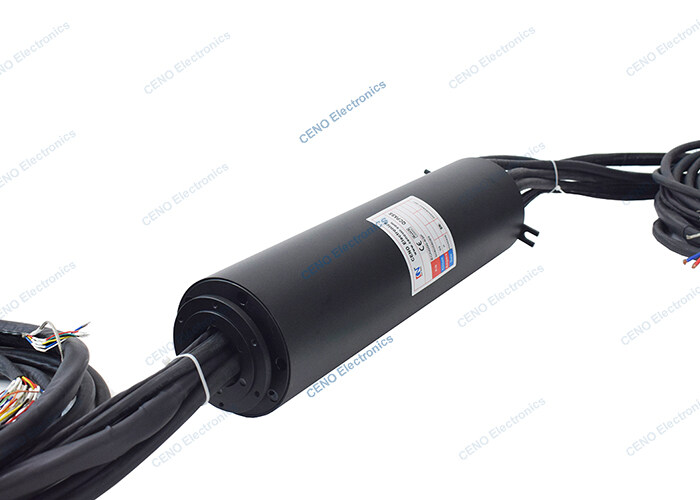

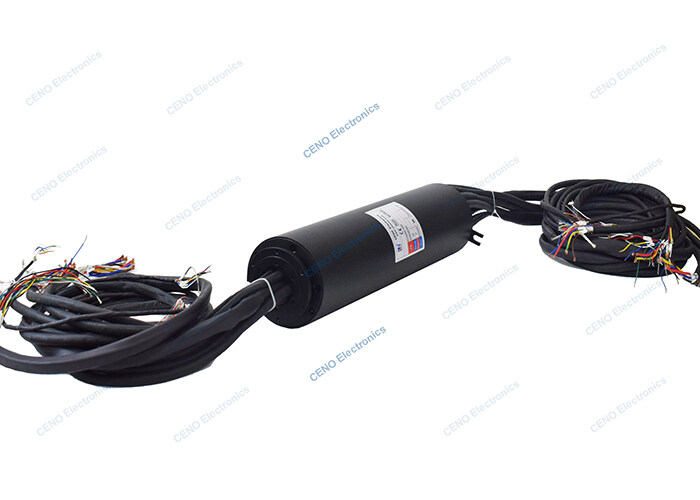

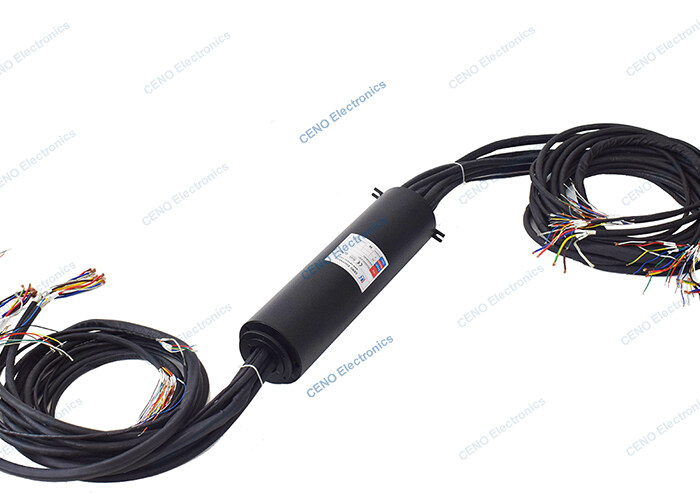

Integrate Encoder Signal Slip Ring

Circuits & Current: Electric power; Signals; Encoder signals
Rating Voltage: 0~380VAC/VDC
Dielectric strength: ≥1500VAC@50Hz; ≥500VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
Electrical Noise: Max 30mΩ (50rpm)
Working temperature: -20°C~+60°C
Working humidity: 60%RH
IP protection grade: IP54
Working Speed: 0~300 rpm
Outer Diameter: Ø119mm
Contact Material: Precious Metal / Gold to Gold
Housing Material: Aluminum alloy
Lead wire length: Rotor side: 1500mm; Stator side: 3000mm
Installation: Anti-rotation tab installation

ECN000-93P is CENO Integrate slip ring combine circuits electric power and Encoder signals for engineering Machinery. Encoder signal slip ring is a special connector that not only compiles and converts signals or data into signals that can be communicated, transmitted and stored, but also transmit electric power stably. For the scientific structure and stable performance features, Encoder slip ring widely apply to engineering machinery or ship cranes etc. For more information please contact CENO
