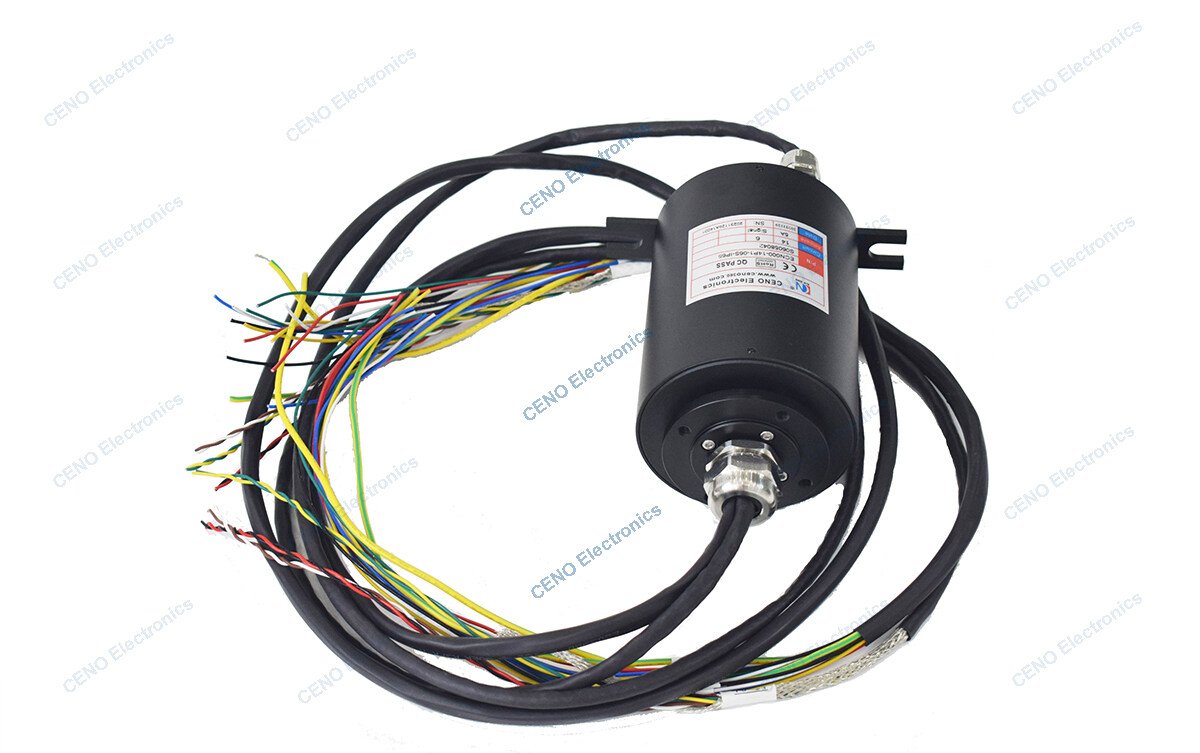

Integrate Encoder Slip Ring

• Current & Circuits: 14*5A (240VAC); 5* Encoder signal
• Rating Voltage: 0-400VAC/VDC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Contact resistance: 30mΩ (50rpm)
• Contact material: Precious Metal; Gold to Gold
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP65
• Operating speed: 0~300rpm
• Lead wire length: Rotor – 1000mm; Stator – 1000mm
• Rotation Way: Flange installation

ECN000-14P1-06S-IP65 is CENO another integrate slip ring with electric power and encoder which is designed for automatic control system. CENO integrate slip ring features compact structure, light weight and high reliable. In past twenty years, we have provided kinds of slip rings that combine conventional electrical slip rings with Pneumatic, RF, FORJs, resolvers, encoder and other commodities. For more information about how CENO slip ring can fit your specific application, please contact us.
