Integrate Encoder Slip Rings

• Circuits & Current: 4*10A, 12*Encoding signal
• Rating voltage: 380VAC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥1000V@50hz; ≥300V@50hz
• Insulation resistance: 500MΩ@500VDC; 100MΩ@300VDC
• Working temperature: -20℃~+60℃
• Protection grade: IP54
• Working speed: 0~40rpm
• Contact material: Precious metal
• Housing material: Aluminum conductive oxide

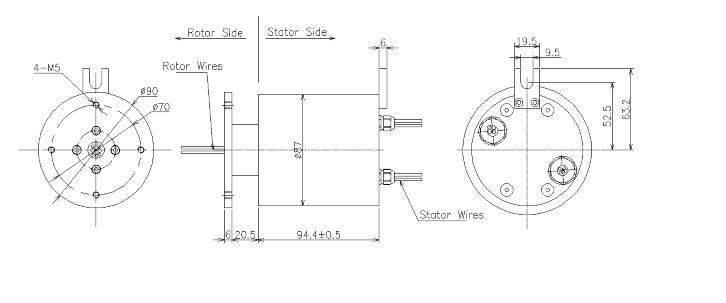

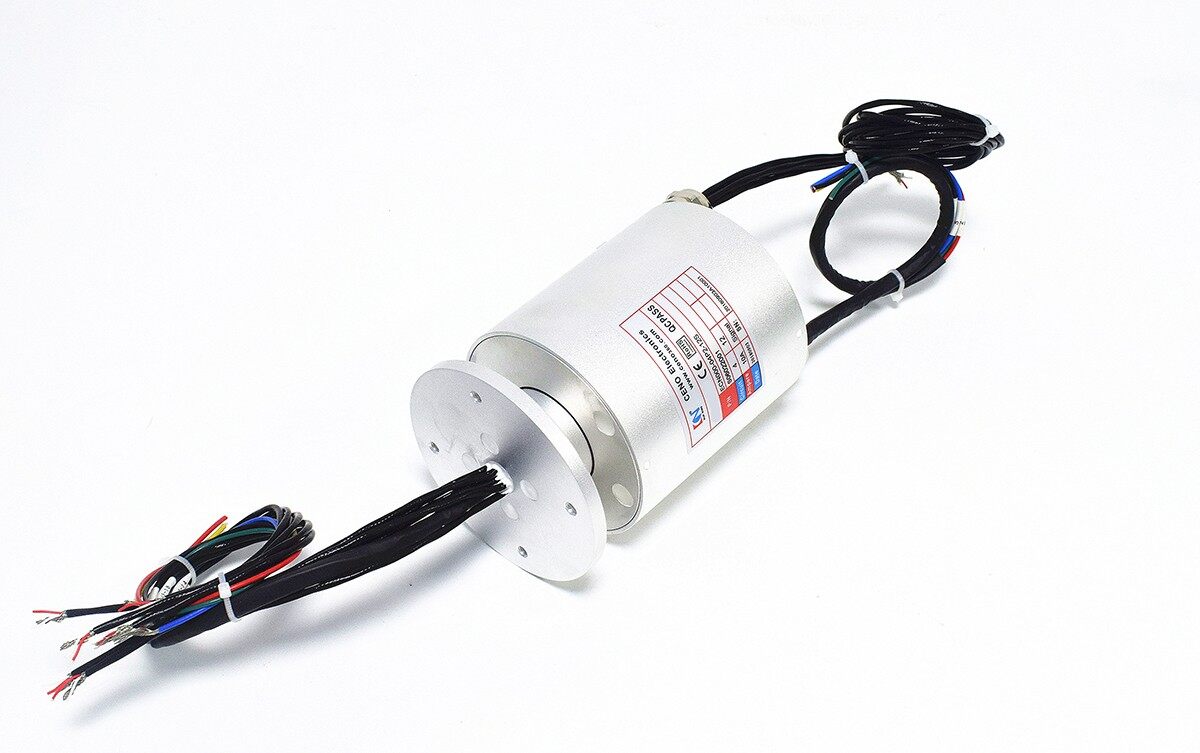

ECN000-04P2-12S is a servo motor encoding slip ring of CENO is designed specifically for the laser testing equipment. For making the weak and easily interfered encoder signals could be transmitted correctly through the slip ring, CENO do specially processing on the internal routing and shielding, so that the packet is not lost and the bit error rate is low. This servo motor encoding slipring for a large number of servo system equipment, because its design has the following characteristics.
