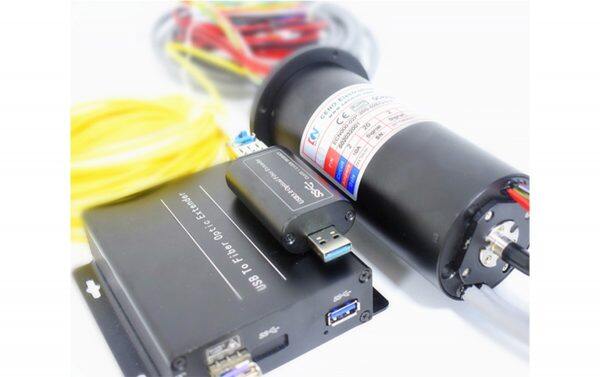

Integrate Fiber Optic Rotary Joint

• Circuits&Current: 2*30A,20*signal,2*Gigabit
• Rating voltage: 380VAC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength:
• ≥1000VAC@50Hz(Power) ≥500VAC@50Hz(Signal)Insulation resistance
• ≥500MΩ@500VDC(Power) ≥100MΩ@500VDC(Signal)Working temperature: -20℃~+60℃
• Protection grade: IP54
• Working speed: 0~300rpm
• Contact material: Precious metal
• Fiber type: SM(9/125um)
• Fiber channel: 1
• Connector type: LC/LC
• Insertion loss: <2.0dB

Fiber conductive slip ring specially suitable for some applications which requires to keep continuous or intermittent rotating and transmit mass data from static side to rotation side, which can improve mechanical performance, simplify system operation and avoiding damages to fiber when rotating. Can be combined with the traditional electric slip ring to transmit power and high-speed data.
